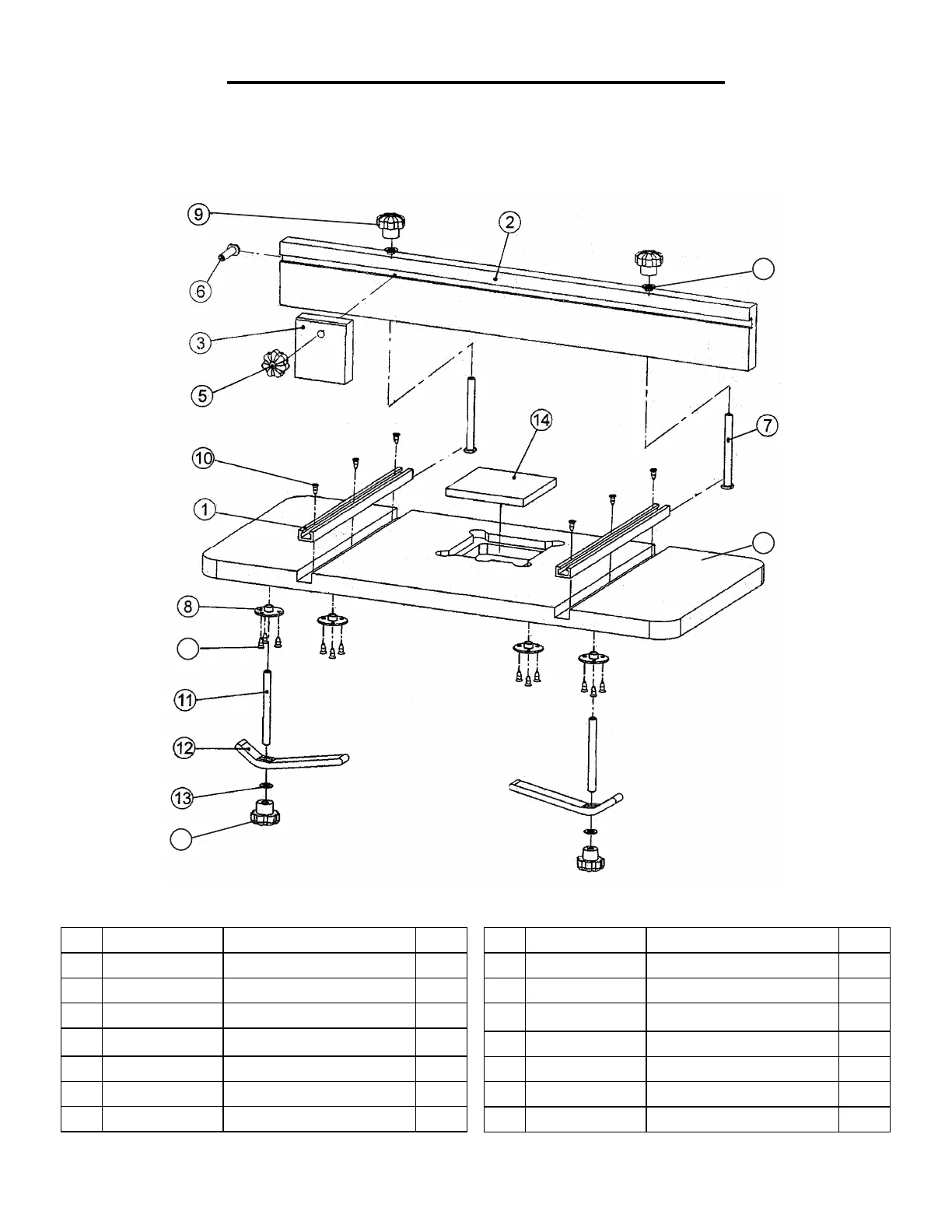

EXPLODED VIEW AND PARTS LIST
No. Part No. Description Qty.
1 DPA2412-001 Aluminum T-track 2
2 DPA2412-002 Fence 1
3 DPA2412-003 Fence Stop Block 1
4 DPA2412-004 Drill Press Table 1
5 DPA2412-005 Stop Block Knob M6x1 1
6 DPA2412-006 Stop Block Bolt M6x1x40 1
7 DPA2412-007 T-Slot Bolt M8x1.25x90 2
4
13
10
9
4
No. Part No. Description Qty.
8 DPA2412-008 Clamp Positioning Flange 4
9 DPA2412-009 Lock Knob 4
10 DPA2412-010 Tapping Screw M8.5x12 18
11 DPA2412-011 Full Thread Rod 2
12 DPA2412-012 Mounting Clamp 2
13 DPA2412-013 Flat Washer 8mm 5
14 DPA2412-014 Insert Block 1
Carefully unpack all items from the box. Check all parts and compare against the exploded view and parts list be-
low. Do not discard the packaging until the tool is completely assembled. If any part is damaged or missing, please
contact our customer service at (800) 232-1195, M-F 8-5 CST or email techsupport@wenproducts.com.
