ASSEMBLY & ADJUSTMENTS
ATTACHING PEGBOARD (18)

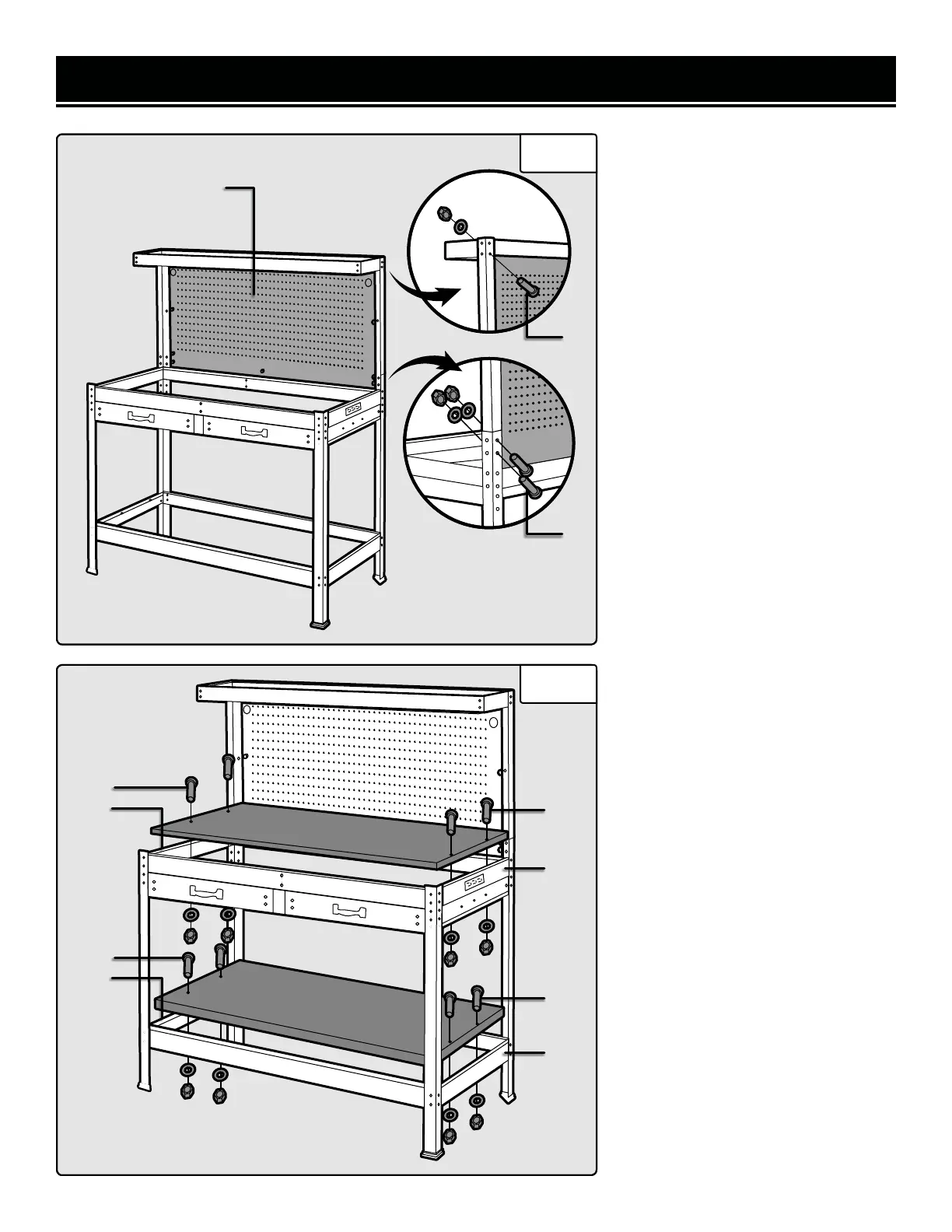

16. Attach the pegboard (Fig. 11 -
18) to the back upper posts, using
13 M6x16 bolts, washers, nuts (C).
ATTACHING BENCH TOP &
BOTTOM SHELF (19, 20)
17. Attach the bench top (Fig. 12 -
19) to the upper side beams (Fig. 12
- 4, 4A). Attach the bottom shelf (Fig.
12 - 20) to the lower side beams (Fig.
12 - 4), using M5x25 bolts, washers,
and nuts (D).
Fig. 12
Fig. 11
13
18
C
C
19
20
4A
4
4
4
D
D
D
D
