ASSEMBLY & ADJUSTMENTS

NOTE: Assembly of the work station requires two people.

NOTE: Extensive assembly required. Assembly time can take 2-4 hours depending on skill level. We suggest

taking a break part way through to enjoy a beverage of your choice.

BEFORE ASSEMBLY: Each part is labeled with its corresponding number / letter. Organize all the parts

according to the exploded view and parts list, so you can ﬁnd the parts you need for each step. Allocate

sufﬁcient space on a ﬂat, level, hard surface for assembly.

TOOLS REQUIRED (NOT INCLUDED): Phillips head screwdriver, an adjustable wrench or 7mm, 8mm, and

10mm sockets, and a bubble level.

NOTE: Only ﬁnger tighten all fasteners during assembly to allow for adjustments. Level all components at

the end of the assembly, and then fully tighten all fasteners using the appropriate tools.

Fig. 2

Fig. 3

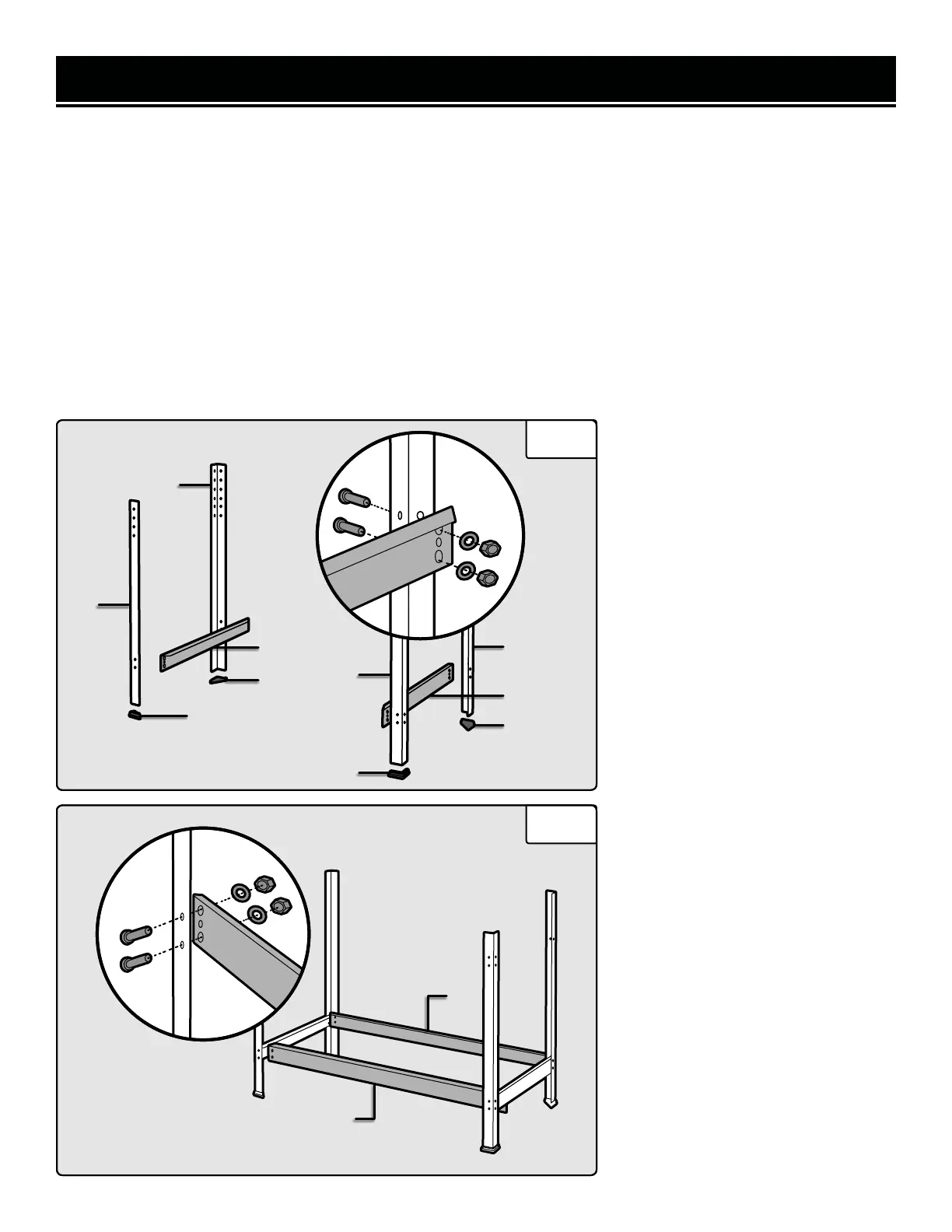

INSTALLING BOTTOM SIDE

BEAMS (1, 2, 4)

1. Attach the bottom side beams

(Fig. 2 - 4) to the inside of the front

(Fig. 2 - 1) and back posts (Fig. 2 -

2), using M6x10 bolts, washers and

nuts.

NOTE: All beams should be mounted

inside of the post. All ﬂanges on the

beams should be on the top.

ATTACHING RUBBER FEET (3)

2. Attach the rubber feet (Fig. 2 - 3)

to the bottom of all 4 posts.

INSTALLING BOTTOM FRONT

& BACK BEAMS (5)

3. Attach the bottom beams (Fig. 3 -

5) to the inside of the front and back

posts, using M6x10 bolts, washers

and nuts.
