10
TOPITEC
®
TOUCH User Manual | 11-2020
2. OVERVIEW AND PROPER USE
2.1 Diagram of TOPITEC
®
TOUCH
The TOPITEC
®
TOUCH consists of the following main components:
1. Housing
2. Touch screen
3. Tool shaft adapter (concealed) with safety bracket
4. Locking device with securing bracket
5. TOPITEC
®
jar holder 20-30 g or 50-200 g (detachable)
6. TOPITEC
®
base ring for single-patient jars / jars for stock preparation
7. Type plate
8. USB interface for maintenance purposes
9. Printer interface (RS 232, serial port)
10. PC interface (USB)
11. Power switch with fuse holder (2 x 10 A slow-acting) and power cable port
12. Base plate
1.
2.
3.
4.
5.
6.
9.
10.
11.
8.
7.
12.

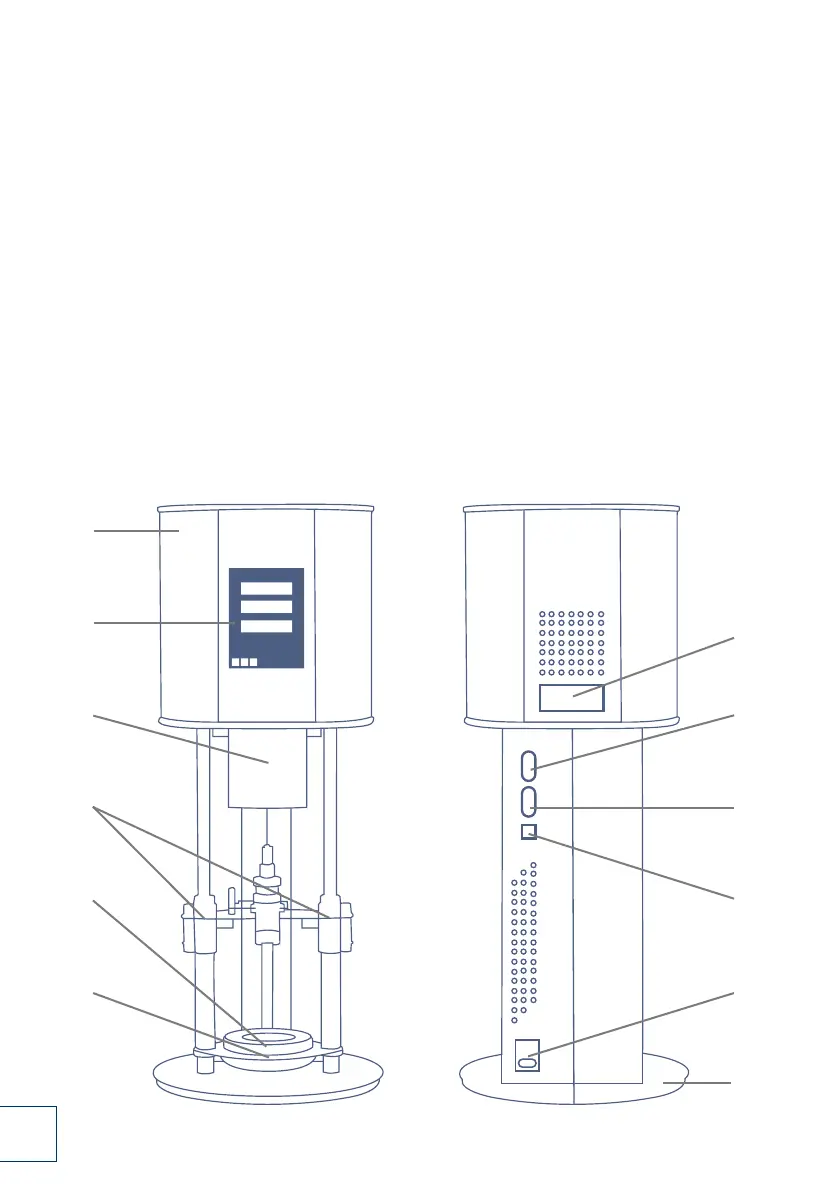

Fig. 2-1 Diagram of TOPITEC
®
TOUCH
