5
ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .

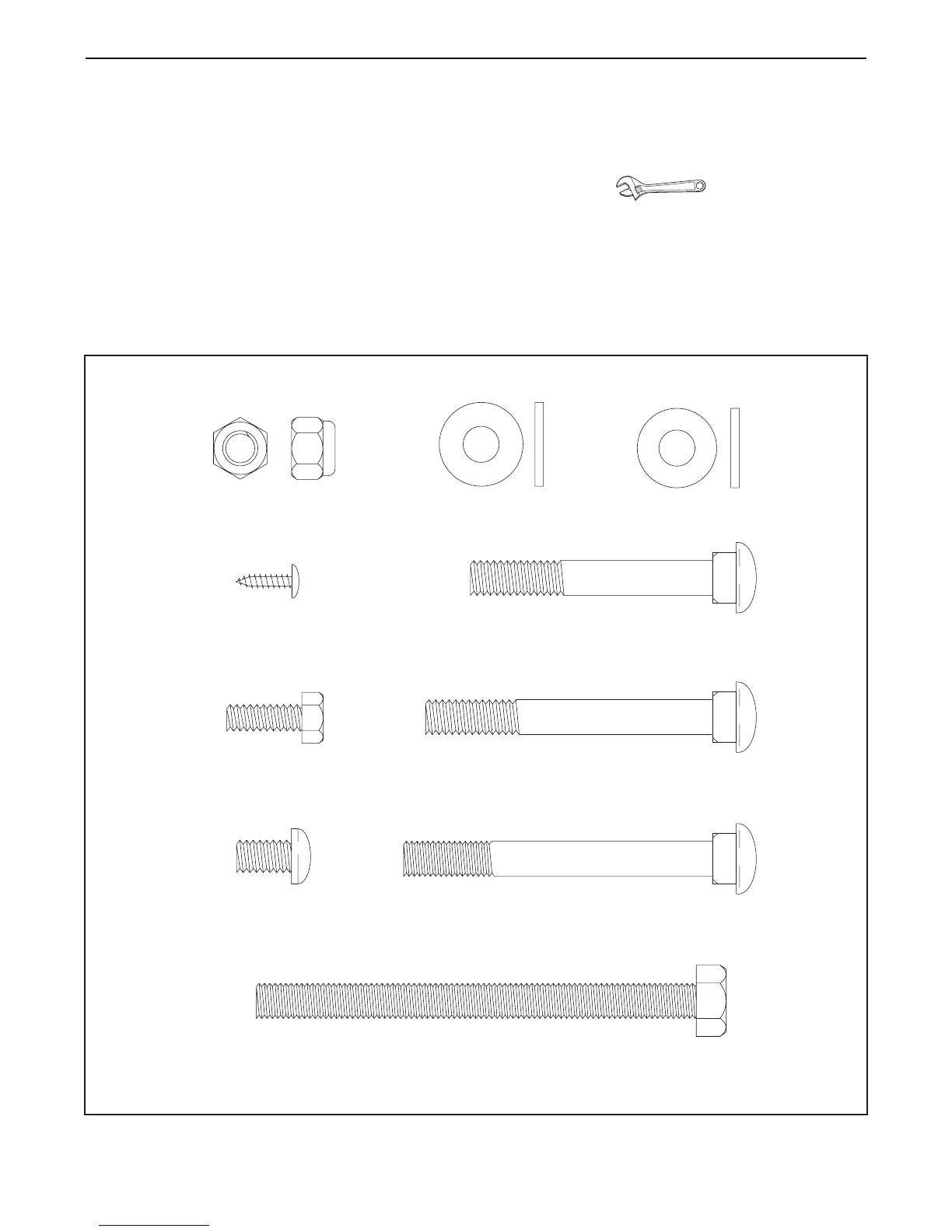

PART CHART
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part; the second number refers to the quantity used in assembly.
Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check
to see if it has been pre-assembled.
M8 x 100mm Hex Head Bolt (12)Ð2
M6 x 16mm Hex Head
Screw (46)Ð8
#8 x 1/2Ó Screw (43)Ð5
M8 Nylon Locknut (55)Ð12
M8 x 70mm Carriage Bolt (27)Ð2
M8 x 65mm Carriage Bolt (52)Ð4
M8 x 55mm Carriage Bolt (11)Ð4
M8 Washer (26)Ð2
M8 x 15mm Button
Screw (53)Ð7
M8 x 19mm
Washer (54)Ð7
