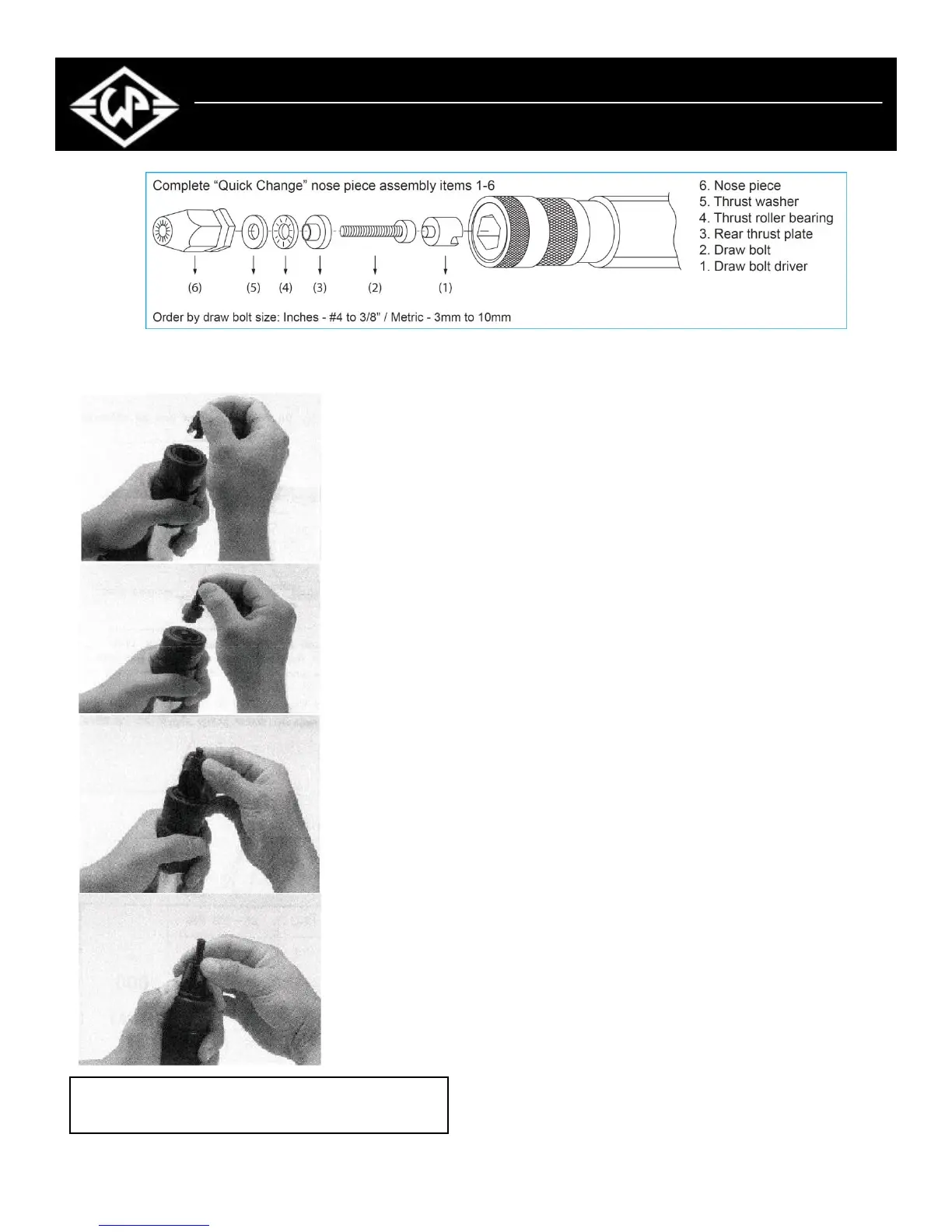

1. Assemble the bearing set & draw bolt (part#2,3,4,5) as above shown figure.
PS series Pull Setter operation manual
When changing the draw bolt, grease the thrust bearing, draw
bolt threads and draw bolt driver. This will prolong parts life.
2. Insert part#1 into Gun Body. Rotate part#1 until slot connects
with Gun Body shown as figure.
3. Install the pre-assembled bearing with part#1
4. Insert part#6 into Gun’s Body hexagon slot.
5. Push Gun’s Body quick releasing ring backward and
push part#6 into Gun Body. Release the quick releasing
ring to complete nose piece assembly.
