Westbo of Sweden
Westbo Classic
Mounting instructions

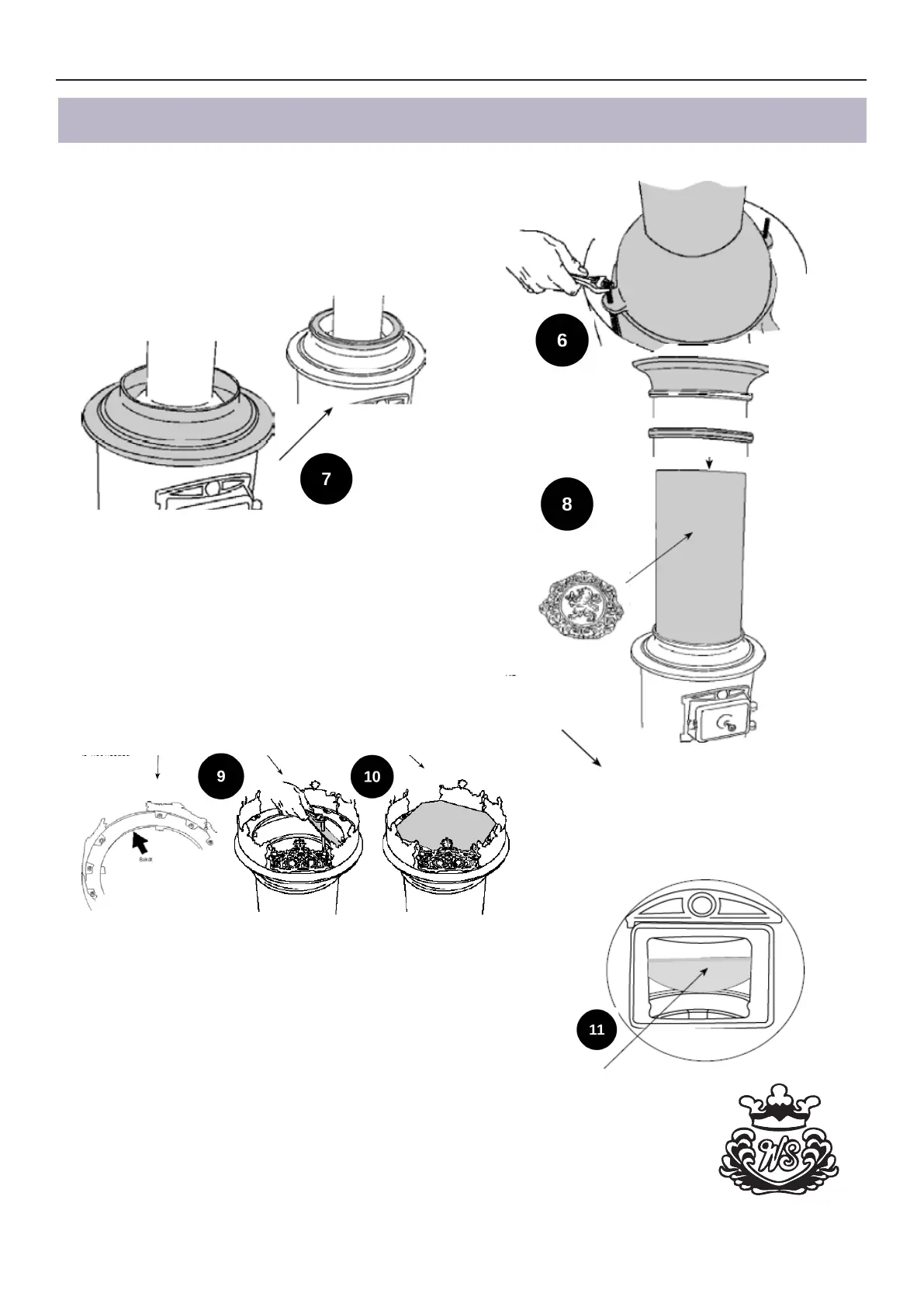

The threaded rods should go through the two holes
on the smoke pipe. pic 6.
Now you assemble the cast iron rings and the steel
tube as shown in pic 7 and 8.
7. Assemble the crown 6 pcs (if it is to be used) then
place the ring on top of the stove.
As showed in pic 9 and fasten it. In this step it is also
possible to adjust the outer body a little bit so the
stove is straight.
If distance to ceiling is more that 500 mm the steel
shield in pic 10 is not needed.
8. Place the lower smoke deector on the cast iron
rib as in pic 11 if taken away during unpacking.
9. If the lion emblem pic 8 is to used, assemble it by
drilling 2x3,5mm holes.
10. Finally connect the stove to the chimney.
