Western Airconditioning Epsilon Echos+ 9 - Operating Limits Charts

Epsilon Echos +
14
NOTE:
The thermal head at the user side heat exchanger must be between 4 ° C and 7 ° C (sized to 5 ° C)
 : in this area the unit can operate only with glycol water in the evaporator side
 : in this area the compressor may be modulated to control the exhaust temperature
-10
-5
0
5
10
15
20
25
-15 -10 -5 0 5 10 15 20 25 30 35 40 45 50
1
25
30
35
40
45
50
55
60
-25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50
2
User side outlet water temperature (°C) User side outlet water temperature (°C)
HEATING
COOLING
Ambient air temperature (°C)
Ambient air temperature (°C)

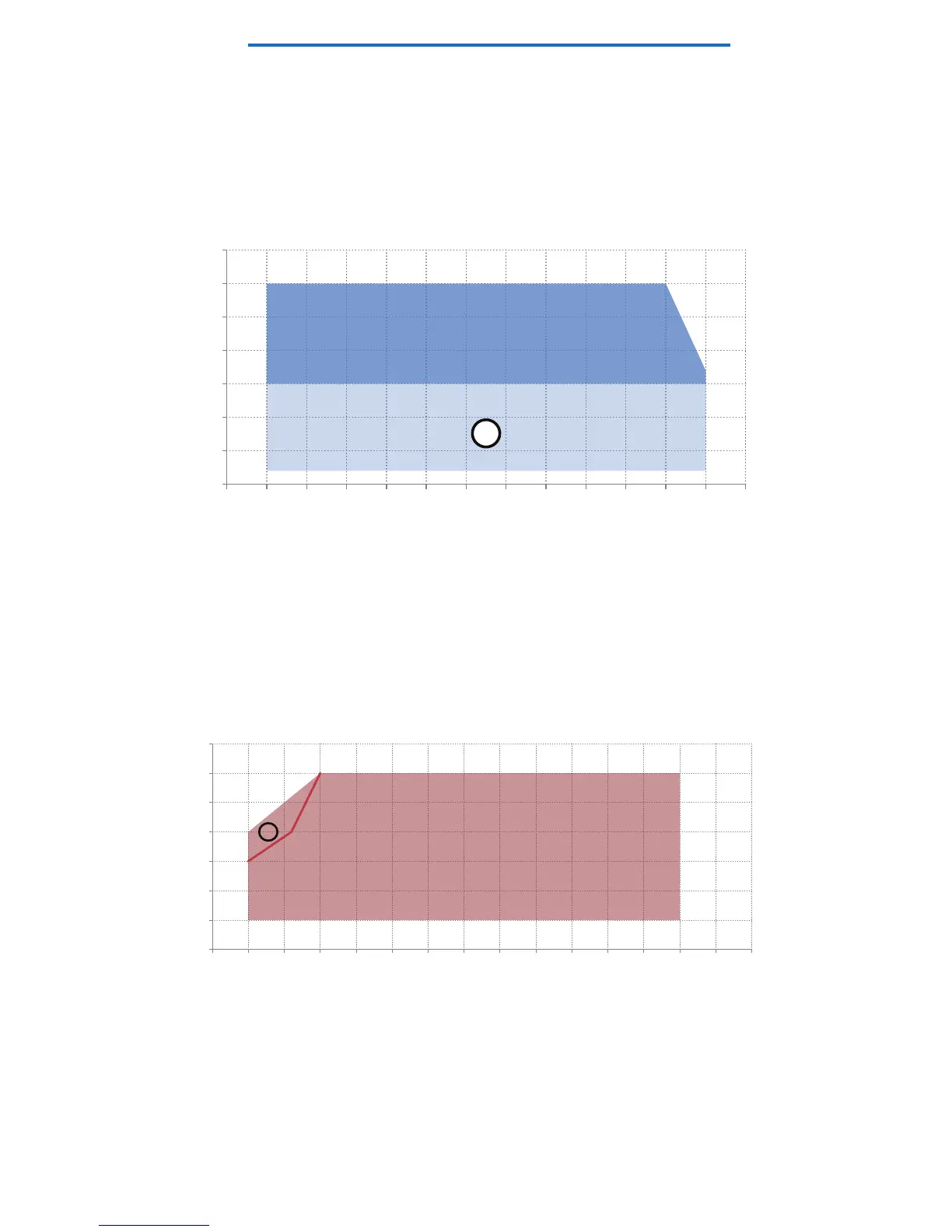

OPERATING LIMITS
