Western Airconditioning Epsilon Echos+ 9 - Page 32

Epsilon Echos +
32

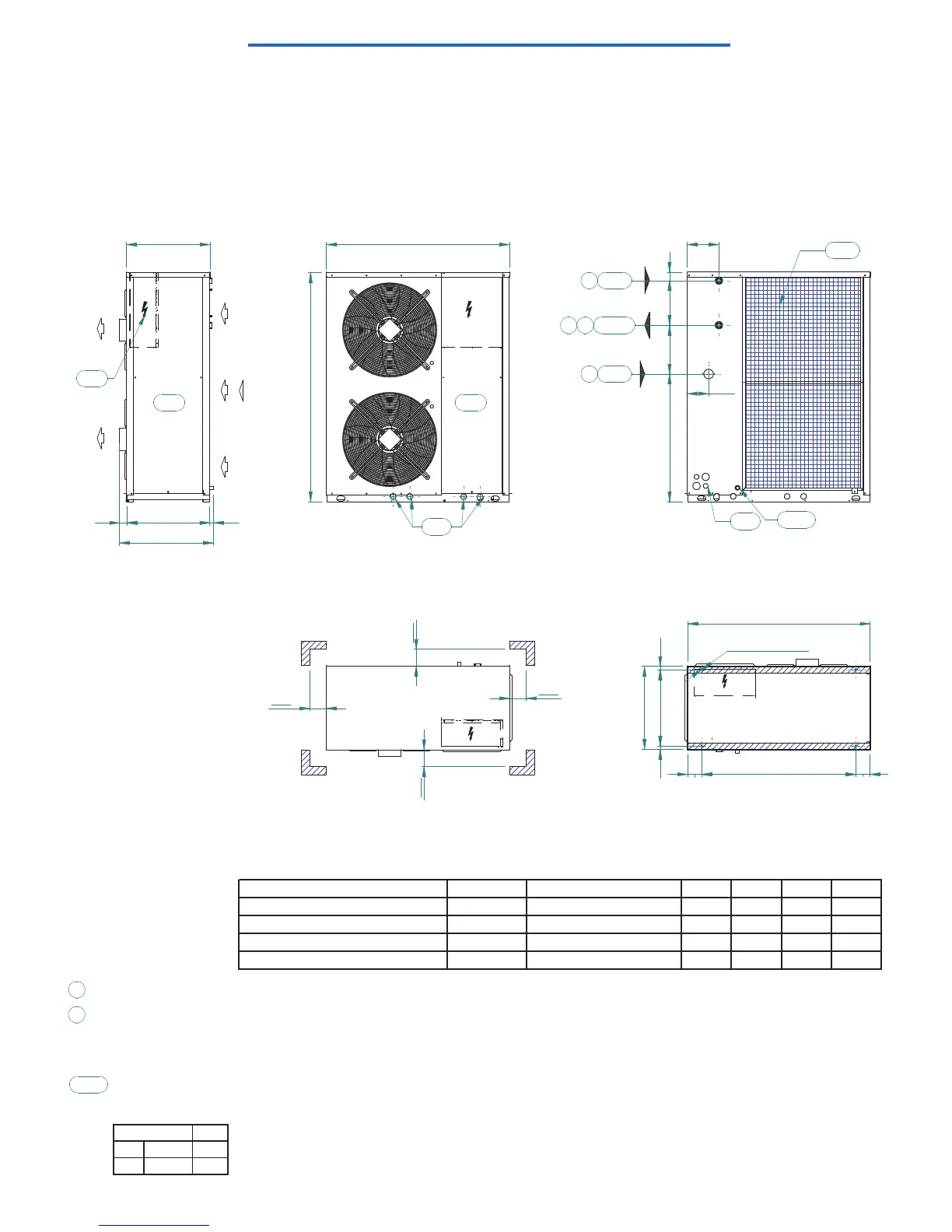

Dimensional diagram Epsilon Echos+
20-1P
C413207 - A
"A"
CLEARENCES
G1
G2
G4 G3
FOOTPRINT
566
506
1385
1105
294 269,5 51
192
O 10HOLES
1100
2046020
500
85
930
85
300
VIEW FROM "A"
Pm
Es
Ep
Rp
Lh
Rp
Uin
Uout
Uin
A
B
B
HYDRAULIC CONNECTIONS
WITHOUT HYDRAULIC MODULE
HYDRAULIC MODULE ST1P
A
B
Cdh *
770
300
600
900
A
128
Uout
A B A - B
1" M 1" 1/4 F 1" M
Uin
NOTE
OPTIONAL (ø22 mm)
Cdh *
43
500 23
Denomination - Dimensional Drawing Drawing Rev.
DraftsmanDate
Scale
Checked by
di
Sheet
N.
of
Replace draw. Replaced by draw.
Weight [kg]
DIM.DRAWING EPSILON ECHOS PLUS 20-1P
C413207/
A
BARBETTA
1
/
/
1
TURRI16/11/121:25
/
Code
MTE 56 rev. 04 date: 07/04/11
Reserved property, reproduction prohibited accordin to existent
laws.Copyright.
Rev. Dat
MODEL WEIGHT(Kg) OPERATING WEIGHT(Kg) G1(Kg) G2(Kg) G3(Kg) G4(Kg)
EPSILON ECHOS PLUS 20 CH 226 227 57 35 51 84
EPSILON ECHOS PLUS 20 CH_1P 239 242 64 37 51 90
EPSILON ECHOS PLUS 20 HP 239 240 59 36 54 91
EPSILON ECHOS PLUS 20 HP_1P 254 257 67 37 54 99
