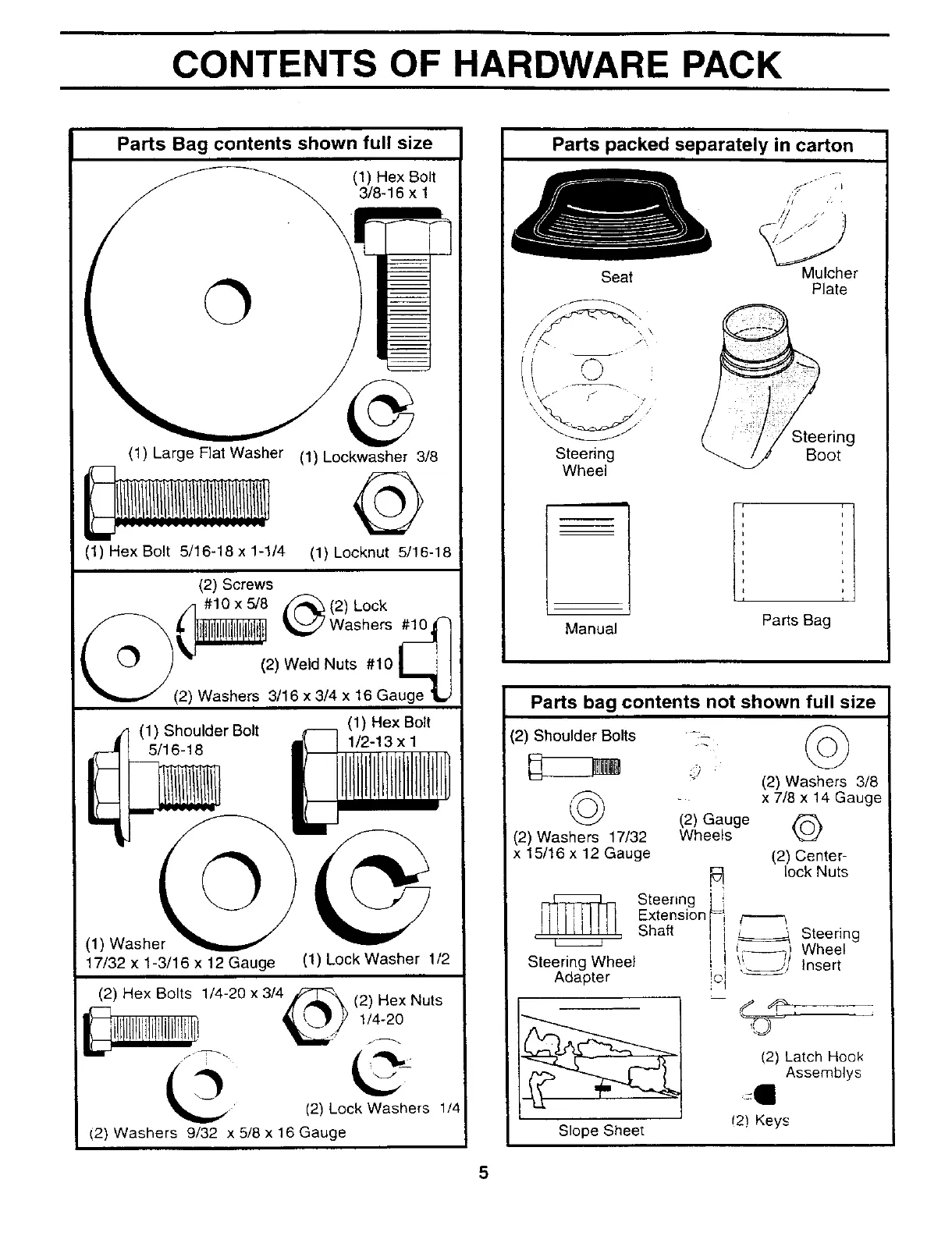

CONTENTS OF HARDWARE PACK
Parts Bag contents shown full size
-_ (1) Hex Bolt
3/8-16 x 1
©
(1) Large Flat Washer
(1) Hex Bolt 5/16-18 x 1-1/4
(1) Lockwasher 3/8
(1) Locknut 5/16-18
(2) Screws
,4 #10 x 5/8 _ (2) Lock
(1) Shoulder Bolt
--J 5/16-18
(1) Hex Bolt
1/2-13 x 1
17/32 x 1-3/16 x 12 Gauge (1) Lock Washer 1/2
(2) Hex Bolts 1/4-20 x 3/4_ (2) Hex Nuts
"_' (2) Lock Washers 1/4
(2) Washers 9/32 x 5/8 x 16 Gauge
Parts packed separately in carton
Seat Mulcher
Plate
Steering
Wheel
_teering
Boot
Manual Pa_s Bag
Parts bag contents not shown full size
(2) Shoulder Bolts -_- S_
(2) Washers 3/8
- x 7/8 x 14 Gauge
(2) Gauge Q
(2) Washers 17/32 Wheels
x 15/16 x 12 Gauge (2) Center-
lock Nuts
Steering i '
iilll!llll Extension _=:_t--_-'*,
Illllllit!, Shaft I i
Steering Whee L I ',_ s!
Adapter ]oi ....
f _;
Slope Sheet
Steering
Wheel
Insert
(2) Latch Hook
Assemblys
(2) Keys
