MVP PLUS™ CUTTING EDGE WEAR and
LEVELING ADJUSTMENT PROCEDURE
After the snowplow has been installed on the
vehicle in the correct confi guration, a fi ne
adjustment can be made to bring the cutting
edges of the snowplow in full contact with the
ground across the entire cutting edge. This
adjustment feature should be used as the cutting
edges begin to wear in order to maintain an even
wear pattern across both cutting edges and
provide good scraping action.
1. Snowplow must be installed on a properly
ballasted vehicle, in the correct confi guration.
2. Vehicle and snowplow must be on a level
surface.
3. If the optional shoe kit has been installed
on the blade, remove the shoes during this
adjustment procedure.
MAINTENANCE
4. Place blade wings in scoop position on the
ground with no tension on lift chains.
5. Remove the rear pushbeam to T-frame
fasteners. Loosen the front fasteners and
allow the blade to fi nd a level position.

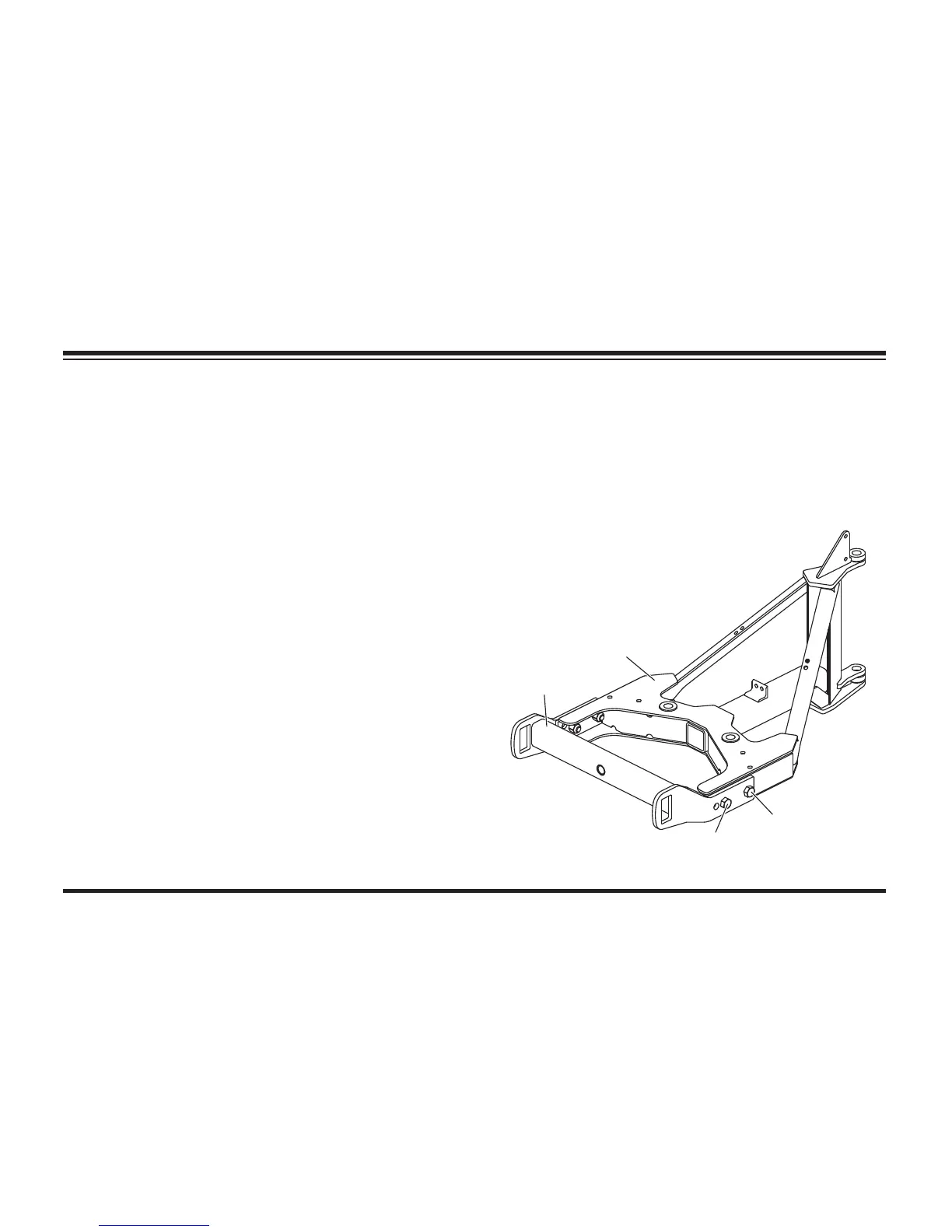

Rear
Fasteners
Front
Fasteners
Push
Beam
T-Frame
To Next Page
