6
ENGLISH INSTRUCTIONS
1. Apply a few drops of vegetable oil to the
rubber Drive Shaft O-Ring.
2. Slide the drive shaft clip and Drive
Shaft O-Ring seal over the back end of the
preassembled Drive Shaft. FIGURE A
3. Insert the Screen Gasket into the large
end of the Screen making sure the Gasket
is under the Thumbscrew. FIGURE B
4. Slide the Drive Shaft Spring over the
Drive Shaft.
5. Slide the red plastic Spiral onto the Drive
Shaft over the Spring. Be sure to match
the ats on the Drive Shaft to the metal
insert in the inside of the Spiral.
FIGURE C
6. Align the notches of the Body with
grooves in the Drive Shaft Assembly.
FIGURE D
7. Holding the Body rmly in one hand,
push the Drive Shaft Assembly rmly, then
turn the Drive Shaft Assembly 1/8th of a
turn counter-clockwise to lock it in place
(NOTE: The “ON” - ”OFF” direction arrows
are on the base of the Screen).
8. Tighten the Screen Thumbscrew to
lock the Screen in place (NOTE: Finger
tighten only, do not over tighten). FIGURE
E NOTE: Operating the Tomato Press
& Sauce Maker while empty is NOT
recommended. The juice from the fruits
and vegetables act as a lubricant for the
mechanism and reduces wear on the
components.
FIGURE C
FIGURE D
FIGURE B
FIGURE A
FIGURE E

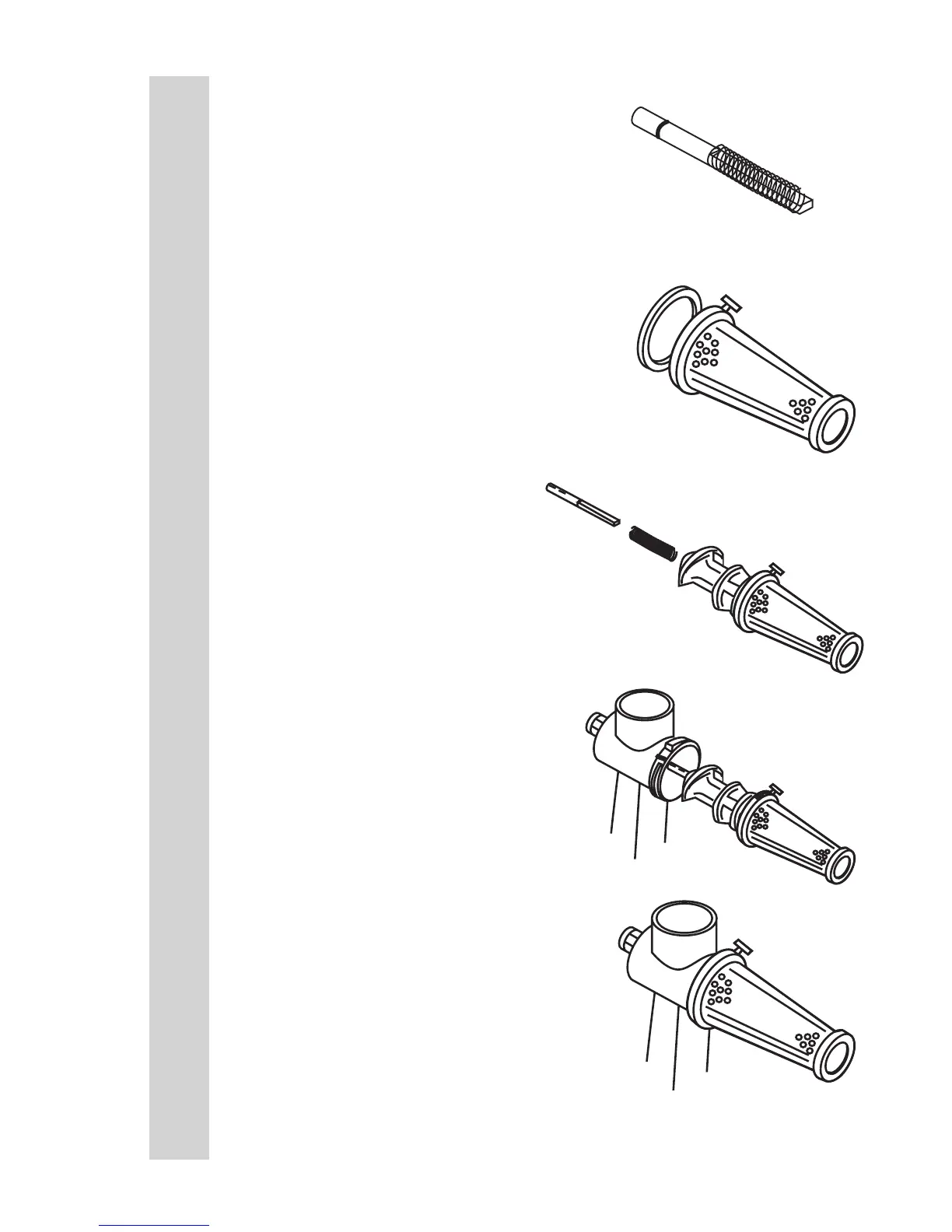

ASSEMBLY INSTRUCTIONS
