2.2.6.3 Notice on Drain Lift Pipe

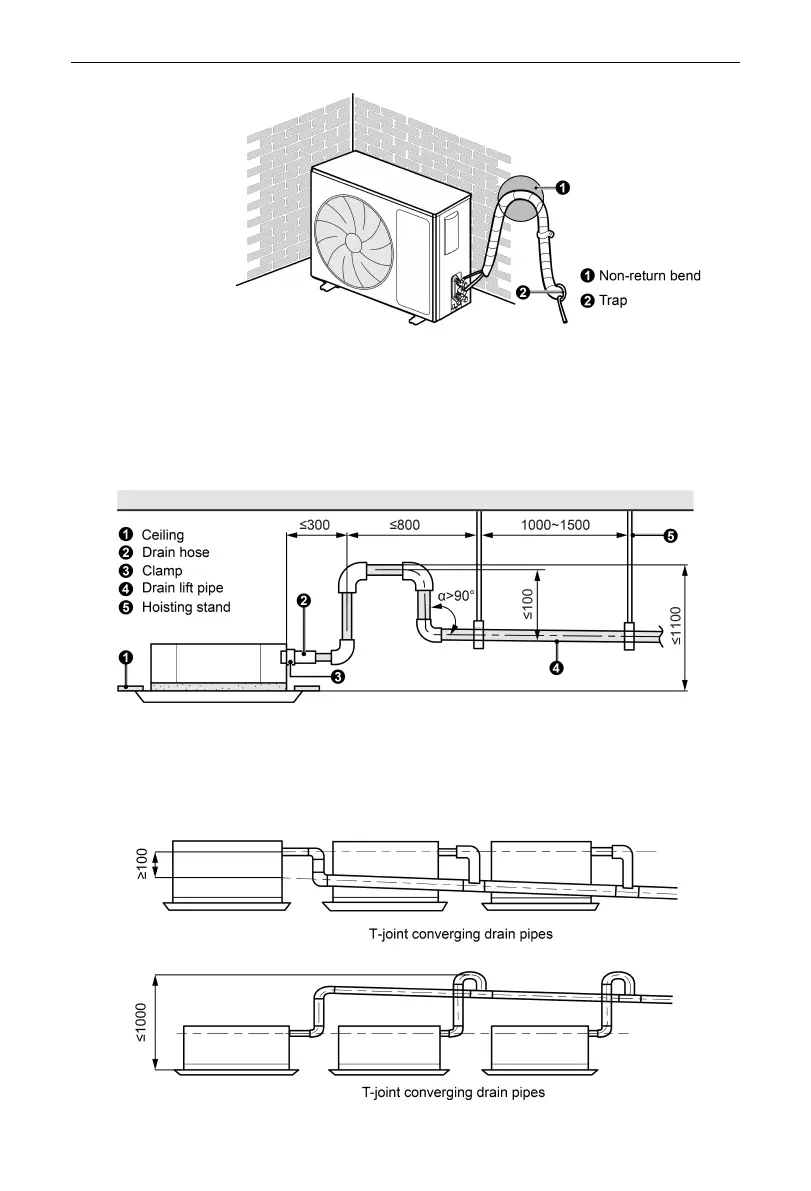

(1) The drain lift pipe should be 1100mm or less away from ground, as shown
below.
Unit:mm
(2) If multiple drain pipes are to be converged, please install according to the
following process. Make sure the main drain pipe is laid downward at a
certain angle:
Unit: mm
