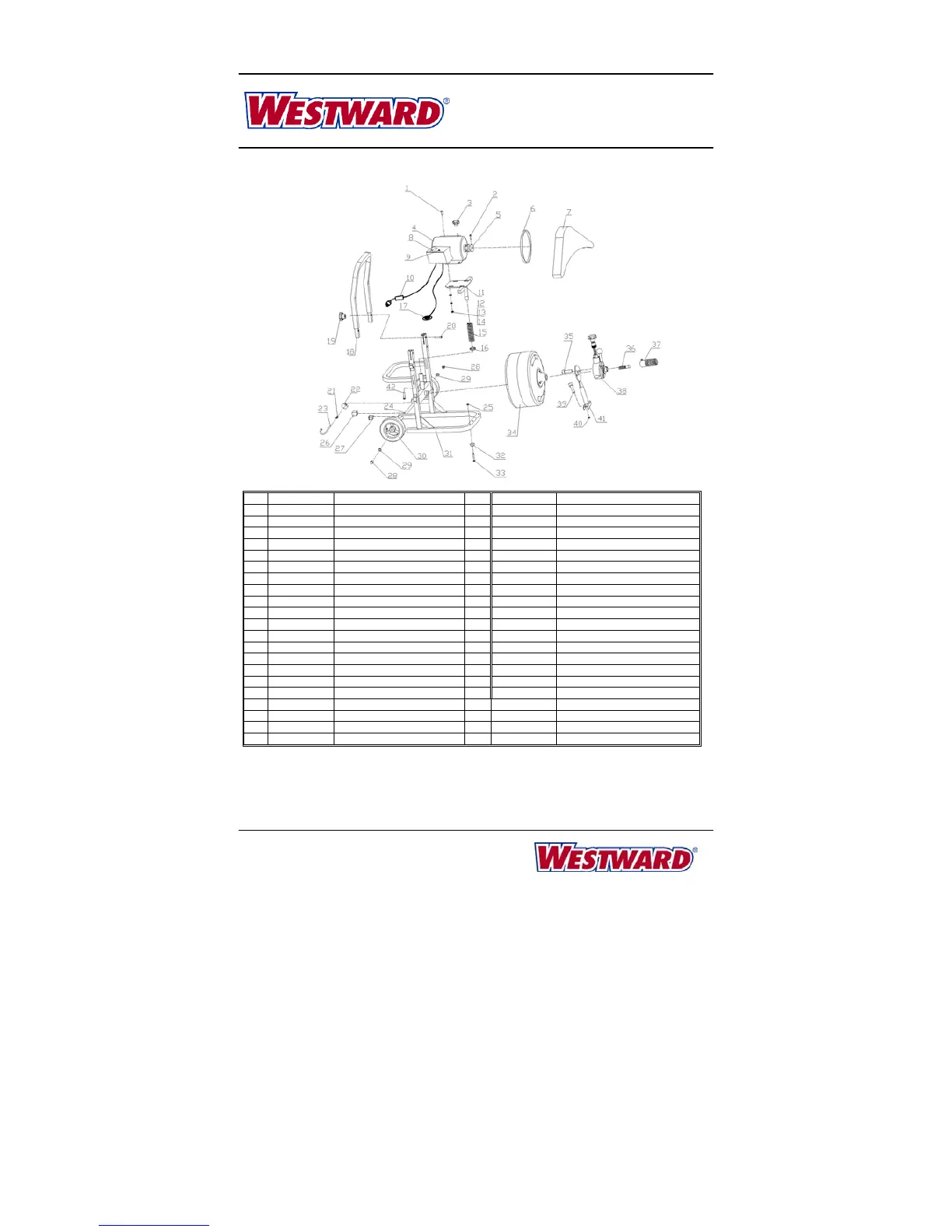

Westward Operating Instructions and Parts Manual
22XP38, 22XP39
Drain Cleaning Machine
DrainCleaningMachine
No.
PartModel# Description No PartModel# Description
1‐ HexScrewM8×20mm(4) 22 TT22XP3811G RetainingSleeve
2‐ PulleyThrustScrewM6×16mm 23 TT22XP3810G DrumShaftRetainingPin
3‐ KnobNutM6×32mm 24‐ AxleΦ14×548mm
4 TT22XP3801G Motor(120V/60HZ/250W) 25‐ NutM5(2)
5 TT22XP3802G Pulley 26 TT22XP3819G RubberLegTip(2)
6‐ V‐BeltA‐44 27 TT22XP3818G EndPlug(2)
7 TT22XP3803G BeltGuard 28 WheelMountingScrewM10mm(2)
8‐ Switch 29‐ FlatWasherΦ10(2)
9‐ Overheat/Overloadprotector 30 TT22XP3817G Wheel8”(Dia.)X1.75”(W)(2)
10 TT22XP3821G GFCIPowerCord 31 TT22XP3816G FrameAssembly
11 TT22XP3804G Motor‐MountAssembly 32 TT22XP3815G RubberFoot(2)
12‐ FlatWasherΦ8(4) 33 BoltM5X35mm
13‐ SpringWasherΦ8(4) 34 TT22XP3814G DrumAssembly
14‐ LockNutM8(4) 35‐ BoltsM8×20mm(2)
15 TT22XP3805G CompressionSpring 36 22XP48 Cable,3/8”X75’
16 TT22XP3806G ThumbWheel 37 49U742 CableGuide
17 TT22XP3820G Foot SwitchCapsule 38 22XP41 CableFeeder
18 TT22XP3807G Handle 39‐ BoltsM8×35mm(2)
19 TT22XP3808G KnobNutM8×50mm(2) 40‐ NutM8(2)
20 BoltM8×35mm(2) 41 TT22XP3813G FrontPost
21 TT22XP3810G RetainingPinSpring 42‐ BoltsM8×40mm(2)
