Westward Operating Instructions and Parts Manual
22XP38, 22XP39
Drain Cleaning Machine

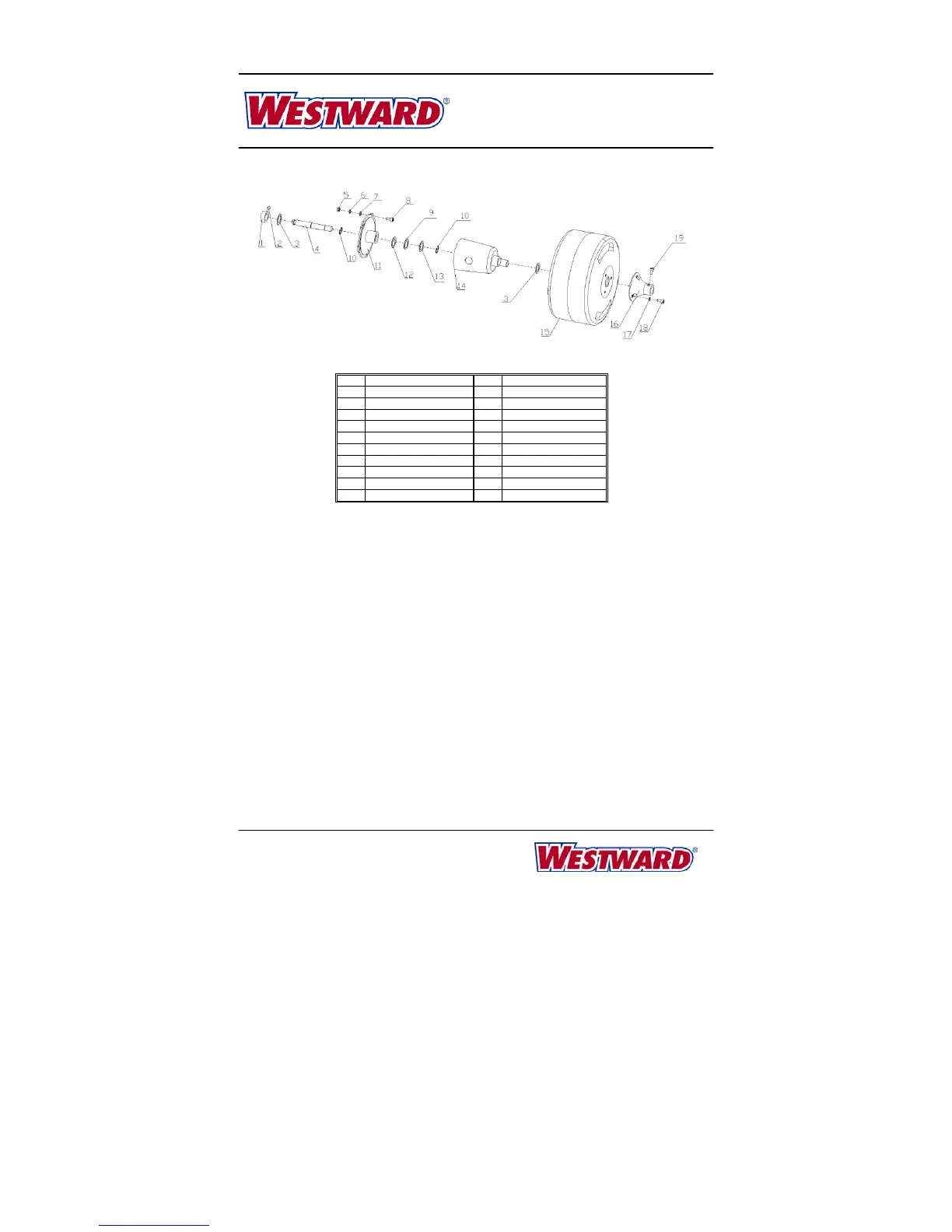

DrumAssemblyComponents
No. Description No. Description
1 ShaftSpacer 11 RearHub
2 BoltsM8×8mm 12 FiberWasherΦ19
3 PlasticWasherΦ19 13 WasherM19
4 DrumShaft 14 DistributorTube
5 NutM8(5) 15 Drum
6 LockwasherΦ8(5) 16 FrontHubBushing
7 FlatWasherΦ8(5) 17 SpringWasherΦ6mm(3)
8 BoltsM8×20mm(5) 18 BoltsM6×16mm(3)
9 SpringWasherΦ19 19 BoltsM8×30mm
10 RetainingWasherΦ19(2)
To Next Page
