7.3 Wiring
WARNING: Fire hazard. Wiring must comply with applicable electrical standards and include a properly rated circuit breaker
(Fuse rating must be rated for the pump used in the system. Check the pump installation manual for the specific fuse size).
WARNING: Improper wiring can cause a fire resulting in injury or death.
NOTE: Switch off the power prior to making connections. Suggested wiring information is given as a guide only. For full
information, refer to the USCG, ABYC and ISO regulations for marine applications and wiring gauges, connectors and fuse
protection.
1. Follow the wiring diagram (Fig 3). All fuses and the circuit breaker must be properly rated for the bilge pump
within the circuit (see pump instruction manual for guidance). The maximum circuit breaker must be is 20 Amps.
NOTE: Do not use thermal circuit breakers with the BE9003(B)/BE9006(B). Magnetic breakers must be used.
2. The wiring is as follows:
• Manual terminal directly to
brown (+) pump wire.
• Automatic terminal to switch
brown/white stripe (+)
• Switch brown (-) to pump
brown (+).
• Black (-) pump wire to
negative battery terminal
3. Make all wiring connections above highest water level, using permanent waterproof terminals. Coat terminals with
liquid electrical tape.
7.4 Testing
1. After installation, hold fingers for 10 seconds on two raised circles on switch face.
• If wiring is correct, pump activates.
• Remove top finger, pump stays on.
• Remove bottom finger, pump should turn off after a short delay.
NOTE: BE9006(B) has a longer override delay of 30 seconds past the 1/2” (13mm) OFF point.
2. Test with water in bilge to confirm that pump turns on and off properly. If not, reposition
the switch to allow for activation.
This Whale® Electric Field sensor is designed to only require minimal maintenance.
WARNING: Ensure that the switch is disconnected from electrics and thats the system is fully drained prior to maintenance.
For Optimal Performance
• Ensure the switch is clear of debris.
• Keep fuse and wiring connections high and dry.
Annual Checks
• Whale® advises that the vessel plumbing system is checked annually for leaks and obstructions. A full boat electrics
check by a marine electrician is also recommended.
• Whale® advises testing your switch as per section 7.4 on an annual basis.
Winterizing
Fully drain system for winterising
. Failure to winterise your system may invalidate the product warranty.

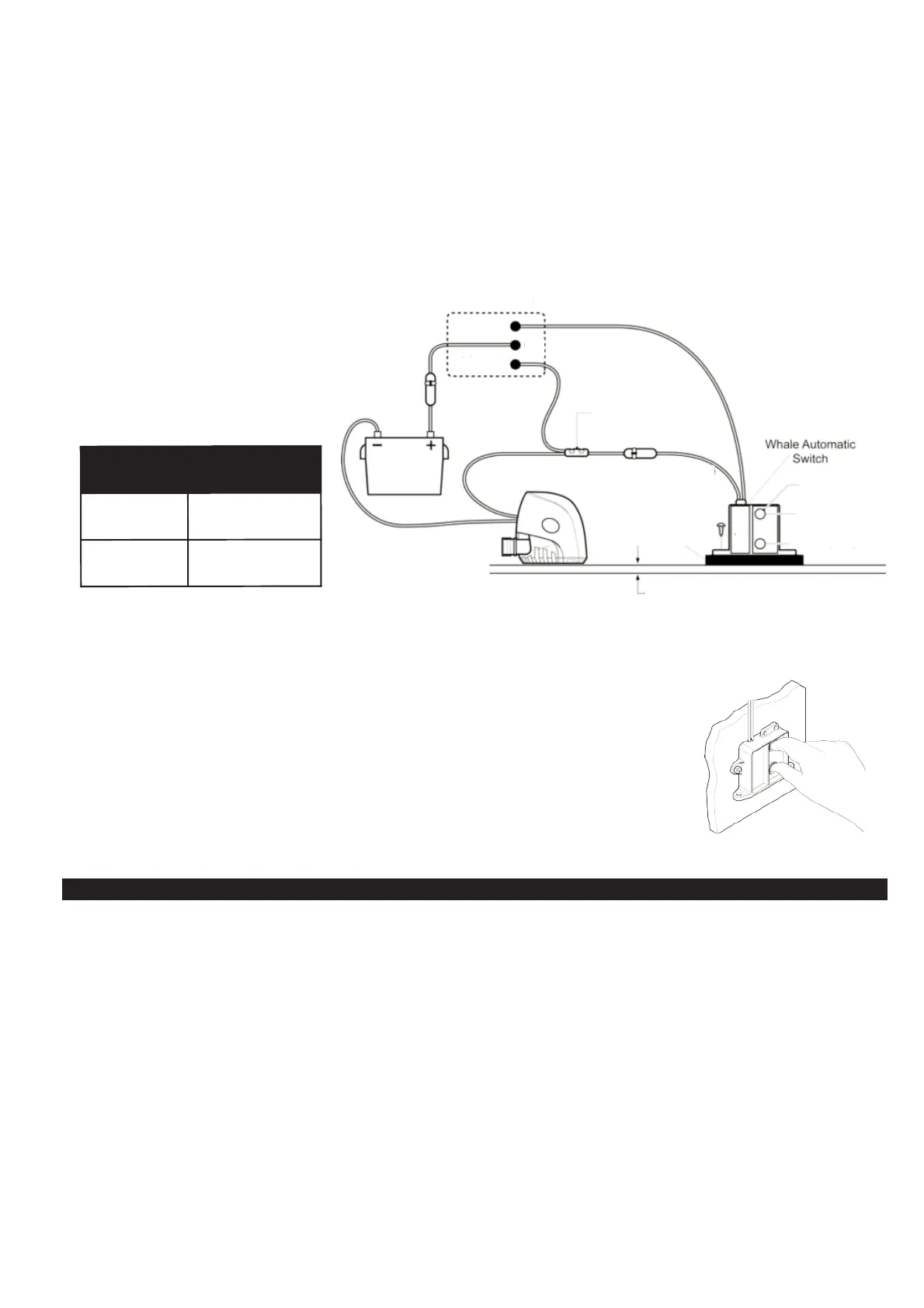

Fig 3 - Wiring instructions
Brown / white stripes wire
Brown wire
Test Circle
2” (51mm) ON
1/2” (13mm) OFF
Mounting Block
3/8” (10mm)
Waterproof Connector
Above Water Level
Magnetic
Circuit
Breaker
Brown Wire
Black Wire
Manual
Automatic
3 Way Switch
Off
12 to 24 V
d.c. Power
3/8” (10mm) min. Mounting Plate
Pump
Switch Wire
Colour
Positive
Brown/White
Stripes
Signal Out
Brown
Fig 4 - Testing Switch
8. MAINTENANCE
Pump Fuse
