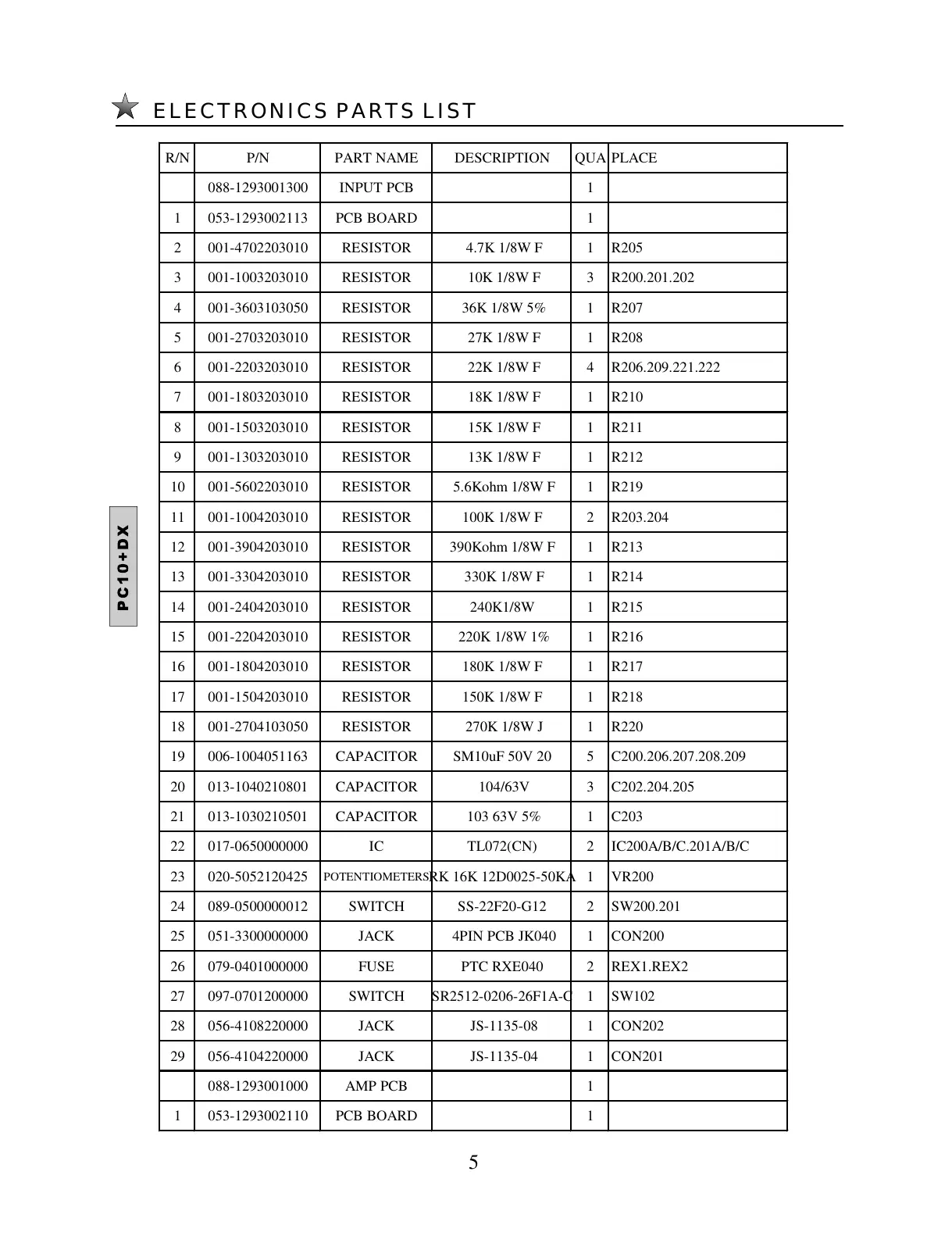

ELECTRONICSPARTSLIST
5
R/N P/N PART NAME DESCRIPTION QUA PLACE
088-1293001300 INPUT PCB 1
1 053-1293002113 PCB BOARD 1
2 001-4702203010 RESISTOR 4.7K 1/8W F 1 R205
3 001-1003203010 RESISTOR 10K 1/8W F 3 R200.201.202
4 001-3603103050 RESISTOR 36K 1/8W 5% 1 R207
5 001-2703203010 RESISTOR 27K 1/8W F 1 R208
6 001-2203203010 RESISTOR 22K 1/8W F 4 R206.209.221.222
7 001-1803203010 RESISTOR 18K 1/8W F 1 R210
8 001-1503203010 RESISTOR 15K 1/8W F 1 R211
9 001-1303203010 RESISTOR 13K 1/8W F 1 R212
10 001-5602203010 RESISTOR 5.6Kohm 1/8W F 1 R219
11 001-1004203010 RESISTOR 100K 1/8W F 2 R203.204
12 001-3904203010 RESISTOR 390Kohm 1/8W F 1 R213
13 001-3304203010 RESISTOR 330K 1/8W F 1 R214
14 001-2404203010 RESISTOR 240K1/8W 1 R215
15 001-2204203010 RESISTOR 220K 1/8W 1% 1 R216
16 001-1804203010 RESISTOR 180K 1/8W F 1 R217
17 001-1504203010 RESISTOR 150K 1/8W F 1 R218
18 001-2704103050 RESISTOR 270K 1/8W J 1 R220
19 006-1004051163 CAPACITOR SM10uF 50V 20 5 C200.206.207.208.209
20 013-1040210801 CAPACITOR 104/63V 3 C202.204.205
21 013-1030210501 CAPACITOR 103 63V 5% 1 C203
22 017-0650000000 IC TL072(CN) 2 IC200A/B/C.201A/B/C
23 020-5052120425
POTENTIOMETERS
RK 16K 12D0025-50KA 1 VR200
24 089-0500000012 SWITCH SS-22F20-G12 2 SW200.201
25 051-3300000000 JACK 4PIN PCB JK040 1 CON200
26 079-0401000000 FUSE PTC RXE040 2 REX1.REX2
27 097-0701200000 SWITCH SR2512-0206-26F1A-C 1 SW102
28 056-4108220000 JACK JS-1135-08 1 CON202
29 056-4104220000 JACK JS-1135-04 1 CON201
088-1293001000 AMP PCB 1
1 053-1293002110 PCB BOARD 1
