ENGLISH: Instructions for Attaching Facebow Transfer Assembly
6
Indirect Mounting of the
Maxillary Model

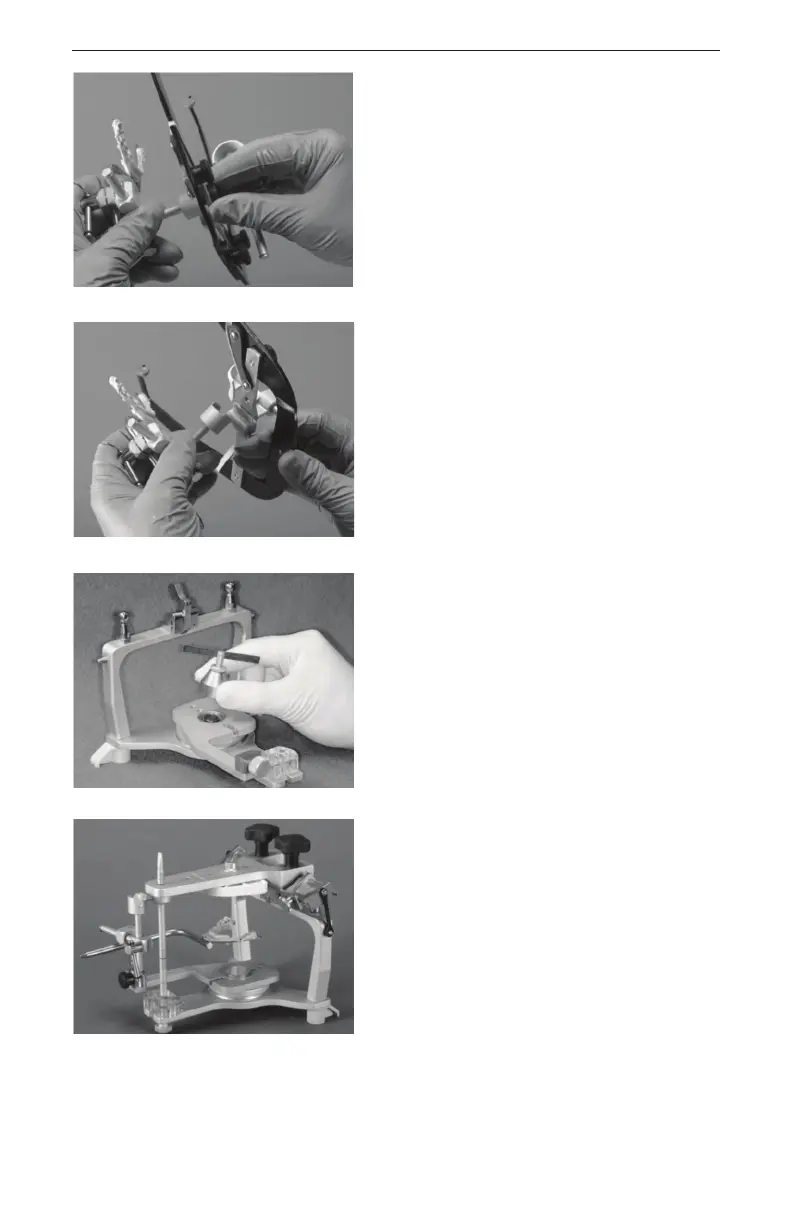

1. Separate the transfer jig from the facebow
by unscrewing the thumbscrew on the
crossbar. Remove thumbscrew rst, then
separate. (Figure 13 and 14)
2. Place the transfer base assembly on
the lower member of the articulator and
secure it. (Figure 15)
Note: Please refer to instructions in
articulator manual for adjustment settings.
3. Insert the vertical rod of the transfer
assembly into the transfer base. Tighten
the clamp screw so that the vertical rod
ts securely in the transfer base.
(Figure 16)
Fig. 13
Fig. 14
Fig. 15
Fig. 16
