ENGLISH: Instructions for Attaching Facebow Transfer Assembly
7
4. Position the upper model into the bite
registration and mount the maxillary
model. (Figure 17)
Note: Please refer to instructions
in articulator manual for mounting
mandibular models.
Direct Mounting of the Maxillary
Model
1. Slide the nasion relator assembly to the
patient’s left, away from the center of the
horizontal crossbar. Loosen the center
thumbscrew on the top of the facebow.
Continue to use the rubber band on the
facebow as it aids in manipulation.
(Figure 18)
2. Loosen and remove the incisal guide pin.
(Figure 19)
Note: Please refer to instructions in
articulator manual for adjustment settings.
3. Guide the facebow beneath the upper
frame of the articulator. The ear pieces
should be even with the brass mounting
pin.
4. Position the brass-mounting pin located
on the outer edge of the upright on the
lower frame into the hole on the medial
side of each earpiece of the facebow.
(Figure 20)

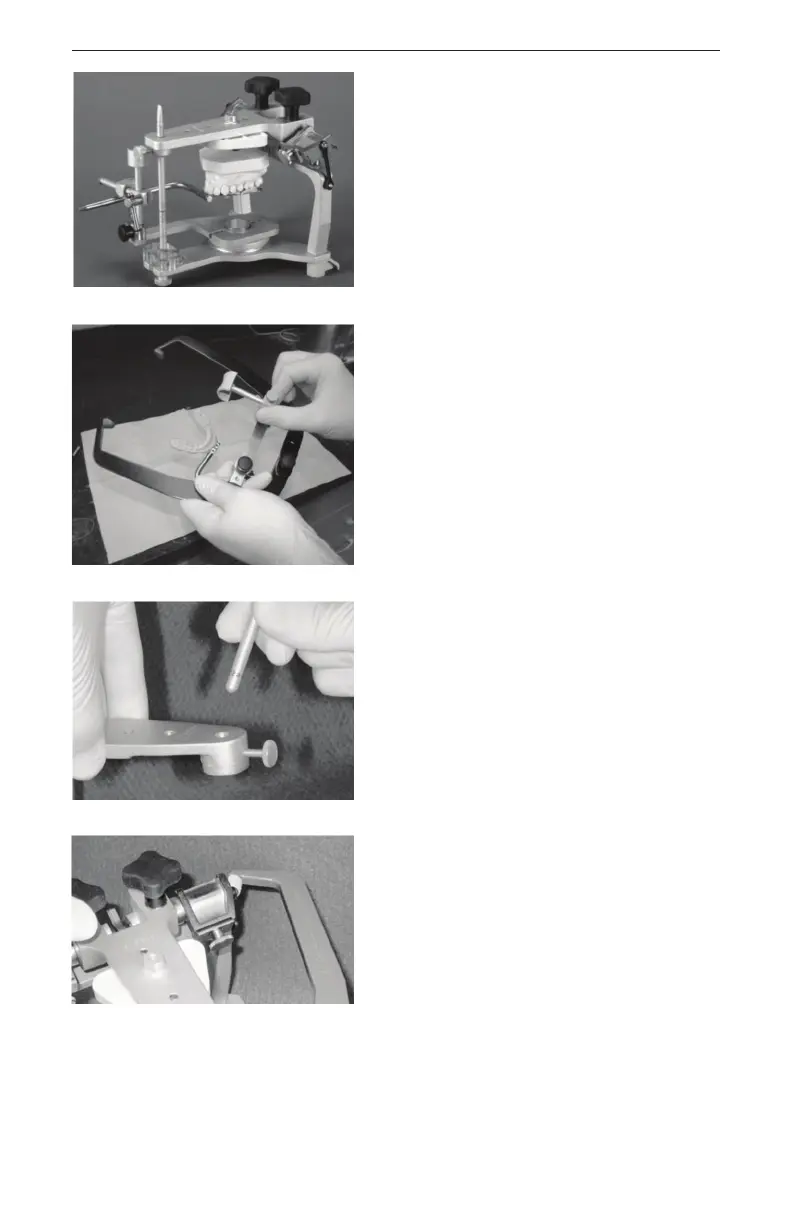

Fig. 17
Fig. 18
Fig. 19
Fig. 20
