77’ A”
green’brounding
16.

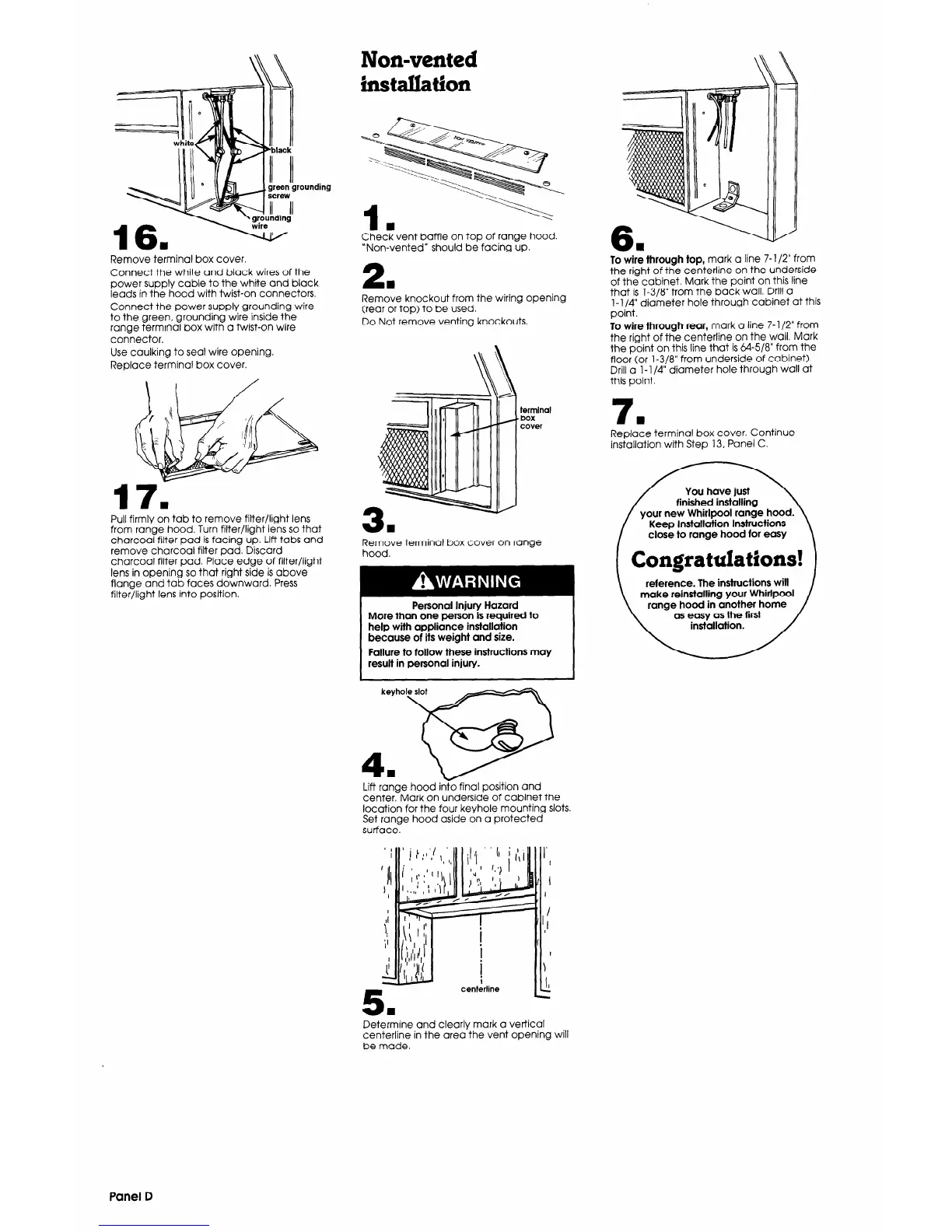

Remove terminal box cover.
Connect the white and black wires of the
power supply cable to the white and black
leads in the hood with twist-on connectors.
Connect the power supply grounding wire
to the green, grounding wire inside the
range terminal box with a twist-on wire
connector.
Use caulking to seal wire opening.
Replace terminal box cover.
17.
Pull firmly on tab to remove filter/light lens
from range hood. Turn filter/light lens so that
charcoal filter pad is facing up. Lift tabs and
remove charcoal filter pad. Discard
charcoal filter pad. Place edge of filter/light
lens in opening so that right side is above
flange and tab faces downward. Press
filter/light lens into position.
Non-vented
hstallation
Check vent baffle on top of range hood.
“Non-vented” should be facing up.
2
n
Remove knockout from the wiring opening
(rear or top) to be used.
Do Not remove venting knockouts.
termlnal
. box
cover
Remove terminal box cover on range
hood.
Personal Injury Hazard
More than one person is required to
help with appliance installation
because of its weight and size.
1 Failure to follow these instructions may
result in personal injury.
Lift range hood i&o final position and
center, Mark on underside of cabinet the
location for the four keyhole mounting slots.
Set range hood aside on a protected
surface.
I
centerline
-
To wire through top, mark a line 7- l/2” from
the right of the centerline on the underside
of the cabinet. Mark the point on this line
that is l-3/8” from the back wall. Drill a
l- l/4” diameter hole through cabinet at this
point.
To wire through rear, mark a line 7- l/2” from
the right of the centerline on the wall. Mark
the point on this line that is 64-5/8” from the
floor (or l-3/8” from underside of cabinet).
Drill a l-l /4” diameter hole through wall at
this point.
7.
Replace terminal box cover. Continue
installation with Step 13, Panel C.
//$I&jEii;~~Iz~
Keep lnstallatlon lnstructlons
1 Congratulations! )
reference. The instructions will
make reinstalling your Whirlpool
Determine and clearly mark a vertical
centerline in the area the vent opening will
be made.
Panel D
