Whirlpool 30" WOS51EC0A - Page 10

Whirlpool
®
30" Double Wall Oven
WOD51EC0A
Dimensions are for planning purposes only.
For complete details, see Installation Instructions packed with product.
Specifications subject to change without notice.

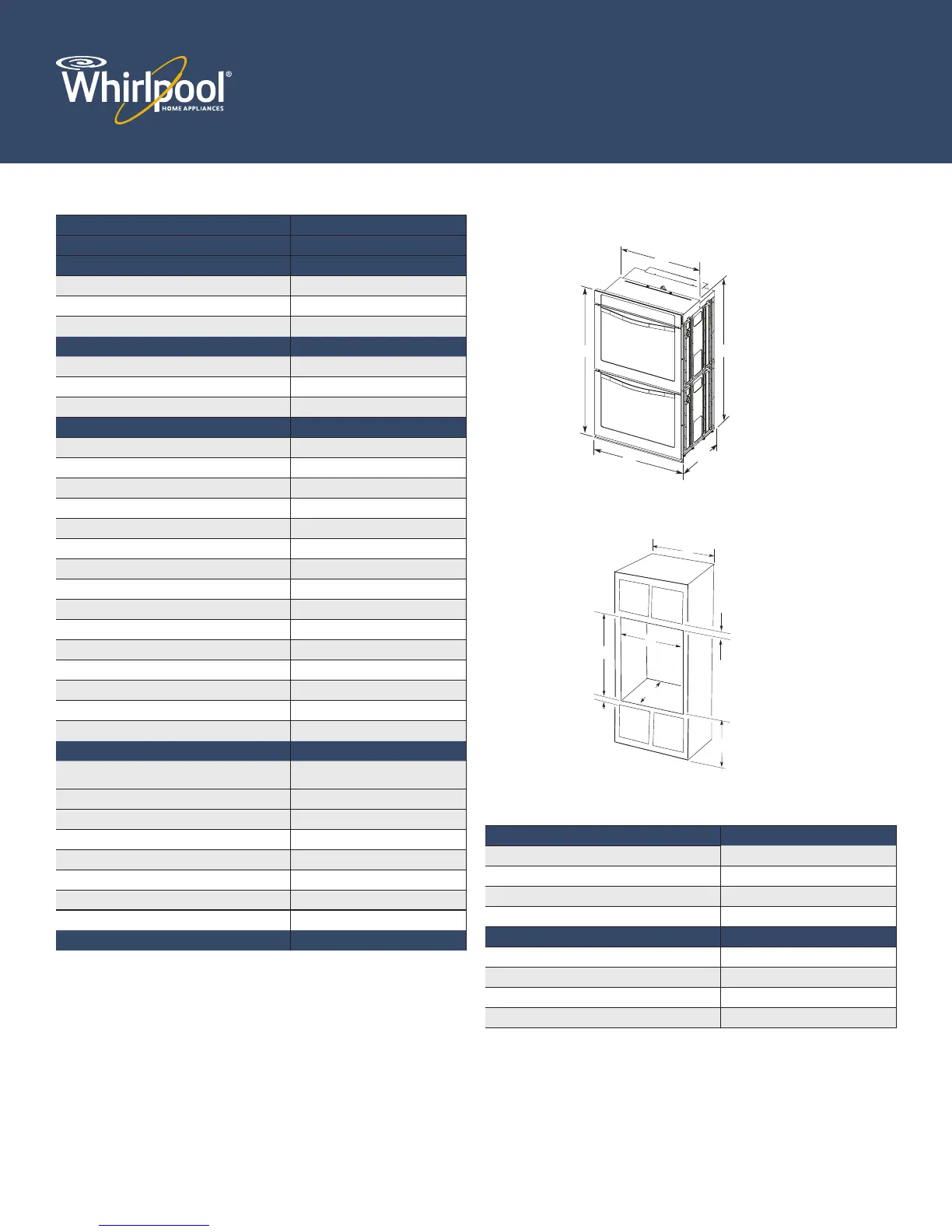

SPECIFICATIONS DIMENSIONS
ModEl # Wod51EC0A
TrANSiTioNEd FroM ModEl # rBd305PV
FEATurES (uPPEr)
Capacity (cu. ft.) 5.0
Self-Clean with Steam Clean Yes
Rack Configuration 2 Racks with Integrated Handles
FEATurES (loWEr)
Capacity (cu. ft.) 5.0
Self-Cleaning Yes
Rack Configuration 2 Racks with Integrated Handles
GENErAl oVEN FEATurES
Bake Element (Watts) @ 240/208 V 2800/2427
Broil Element (Watts) @ 240/208 V 3600/3120
Broil Passes 8
Oven Cavity Size (in.) 18 in. H x 25 in. W x 19 in. D
AccuBake
®
Temperature Management System Yes
Hidden Bake Yes
Delay Bake Yes
Sabbath Mode Yes
Closed Door Broiling Yes
Rack Positions 6
Control Type Membrane
Control Lockout Yes
Oven Controls Display Type VFD
Oven Controls Display Color Blue / Red
Oven Light(s) 2 Incandescent
SPECiFiCATioNS
Power Supply Connection Location
3" Below Support Platform on Left
or Right Hand side
Sales Demo Mode Yes
Total Connected Load (kW) @ 240 volts 7.368
Total Connected Load (kW) @ 208 volts 5.576
Circuit (amps) 30
Approx. Shipping Weight (lbs.) 266
Handle Type Metal
FIT System feet and trims supplied with oven Yes
ColorS W, B, T, S
W=White, B=Black, T=Biscuit, S=Stainless Steel
CuTouT diMENSioNS
Height
48 7/8 to 52 13/64
Width 28 1/2
Depth 24
Bottom of cutout to floor (in-wall) 14 3/4
ProduCT diMENSioNS
Height 51 7/16
Width 30
Depth 26 3/8
Depth with door open 90 degrees 46 3/4
All dimensions are shown in inches.
AA110107
30" (76.2 cm) models
A. 51
⁄
" (130.6 cm) max. overall
height
B. 28½" (72.4 cm) max. recessed
width
C. 26
⁄
" (124.0 cm) recessed
height
D. 23
⁄
" (59.1 cm) max. recessed
depth
E. 30" (76.2 cm) overall width
C
B
A
E
D
Double Ovens Installed in Cabinet
NOTE: The cutout height can be between 48⁄" (124.1 cm) and
52⁄ " (132.6 cm) for double ovens.
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 14⁄" (37.5 cm) bottom of
cutout to floor
D. 28⁄ " (72.4 cm) cutout width
E. 1⁄ " (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 50
⁄
" (127.2 cm)*
recommended cutout height
G. 24" (60.7 cm) cutout depth
F
E
A
D
G
B
C
PRODUCT DIMENSIONS
CABINET DIMENSIONS
®Registered trademark/™ Trademark of Whirlpool, U.S.A. ©2011. All rights reserved.
All other trademarks are owned by their respective companies.
