electrical connections of the hob and oven must be made separately both for electrical
reasons and to simplify removal of the oven through the front of the cabinet.
Wall cabinets or extractor hoods must be at least 650 mm above the hob.

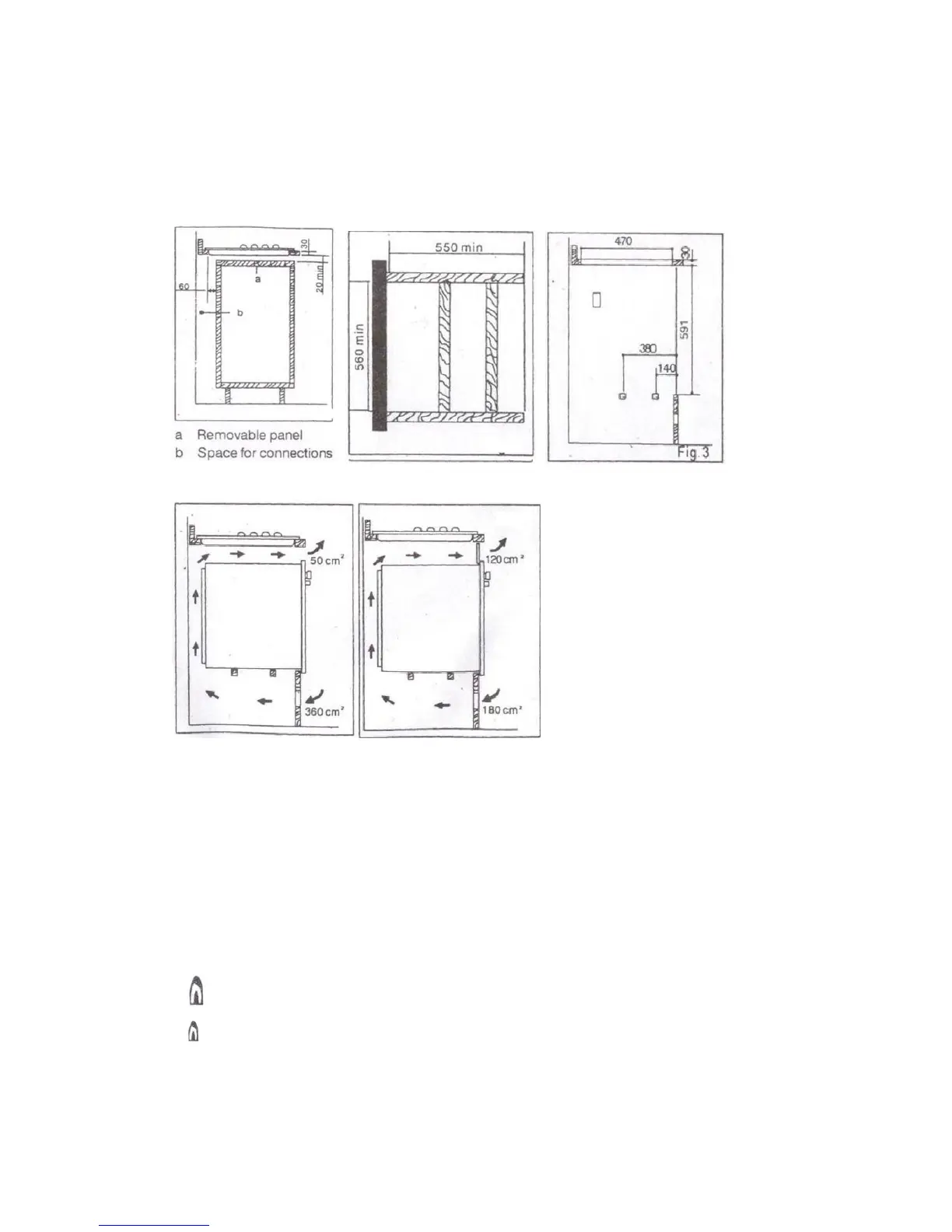

Fig.1 Fig.2 Fig.3
Fig.4 Fig.5
Instructions for use
The hob control knobs
The symbols on the control knobs mean the following:
● no gas flow
maximum gas flow
Minimum gas flow
All operating positions must be set between the
maximum and minimum flow settings, and never
between the maximum setting and the closed
position.
