WHIRLPOOL ELECTRICAL APPLIANCES CO. LTD. SERVICE MANUAL
Ref: 54258291b PAGE 6 OF 17

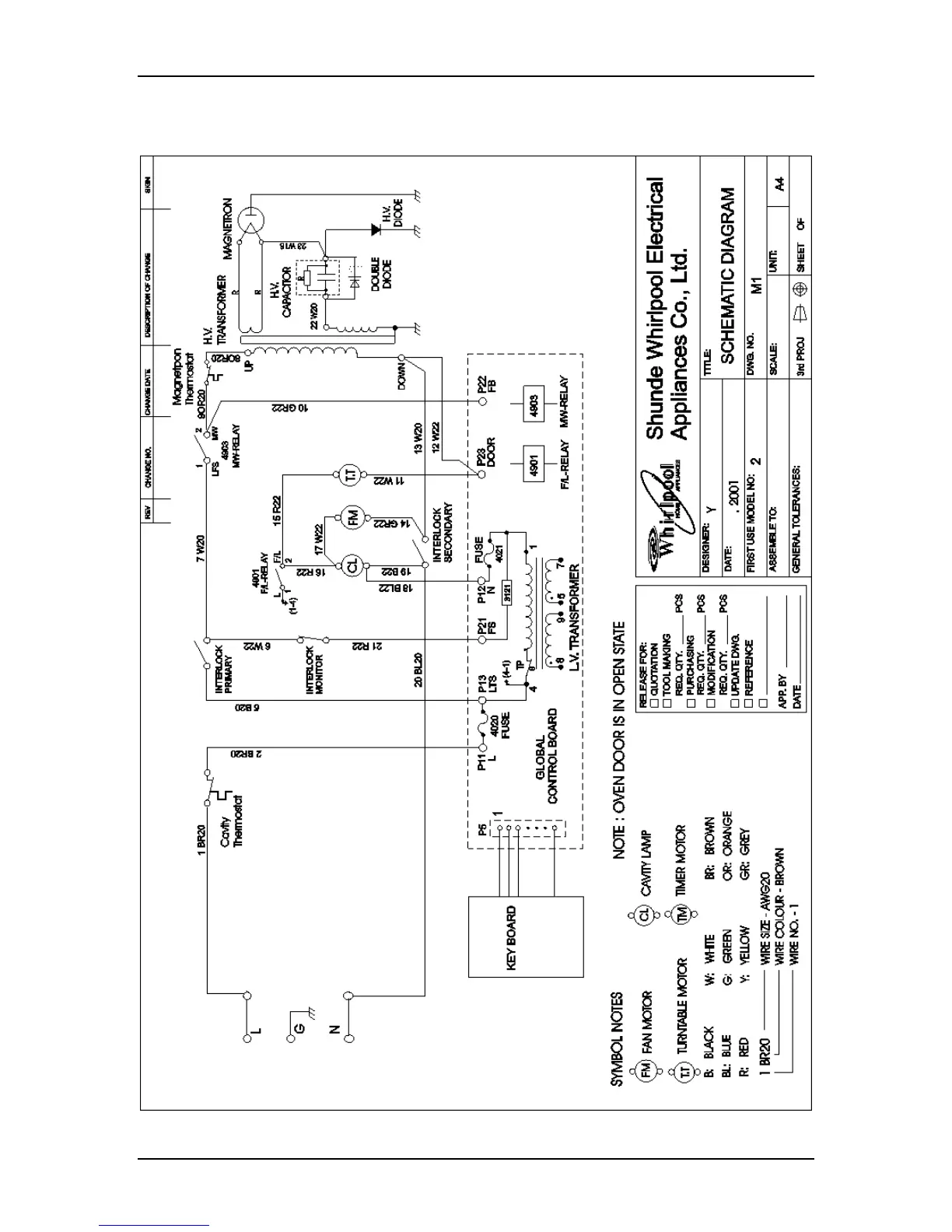

4. SCHEMATIC DIAGRAM
