1.1 Purpose of this manual
The purpose of this service manual is to provide service engineers who already have basic
Knowledge necessary to repair air vent dryers with electronic control systems.
1.2 Important
Repairs to electrical appliances must be carried out only by qualified service engineers
Before touching internal components, always remove the plug from the power socket

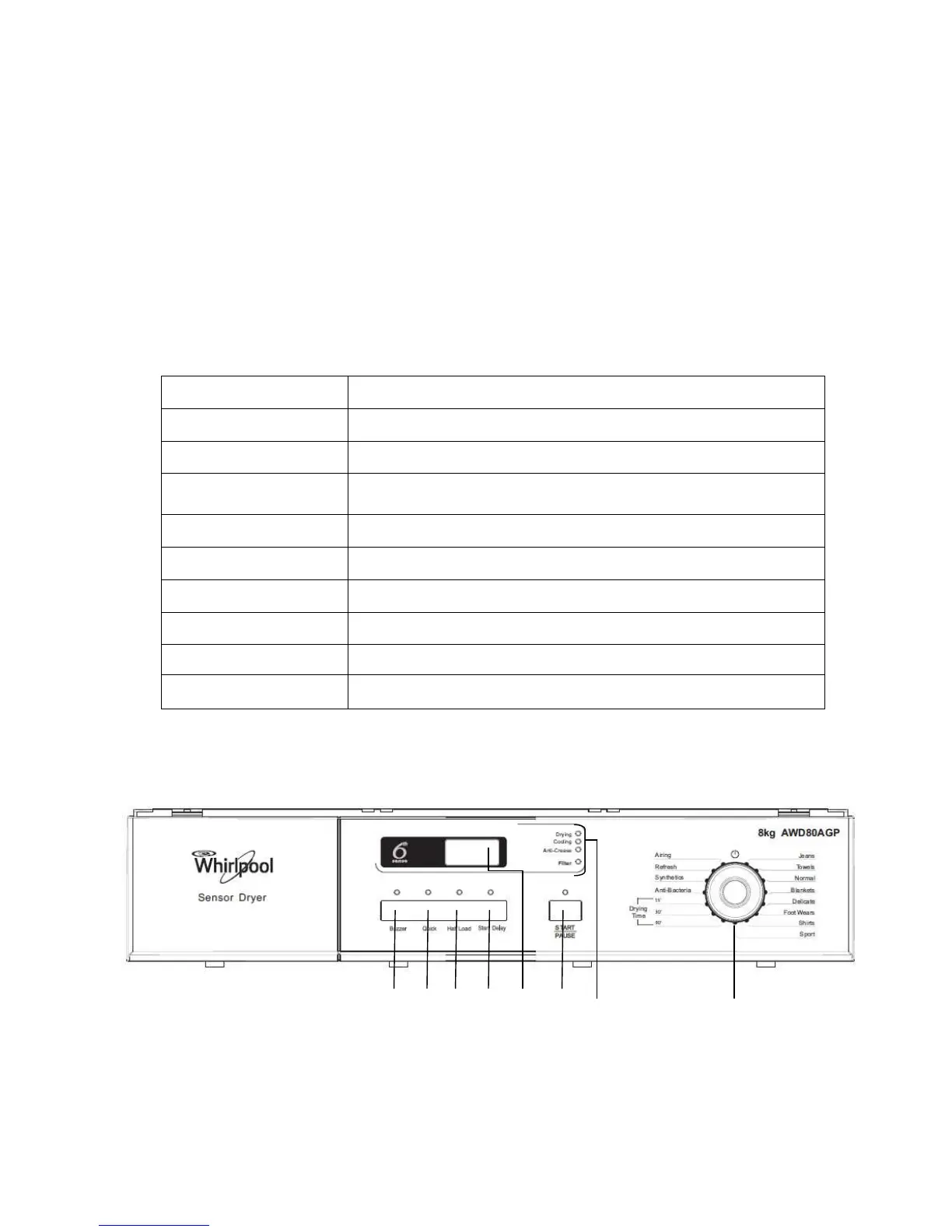

2. Technical Data
Voltage 220V
60Hz
Weight 38 Kg
Heater 230V 2100W
Dimention
WxDxH
595*555*850mm
Drying system Air vented
Humidity control Conductimetric sensor
Motor Single-phase asynchronous motor with capacitor
Temperature control NTC sensor
Energy efficiency C
Error alarms 3
3．
．．
．Control Panel
1 2 3 4 5 6 7 8
1. Buzzer 7. Indicator Lights
