Whirlpool DU900PCDB4 - Page 2

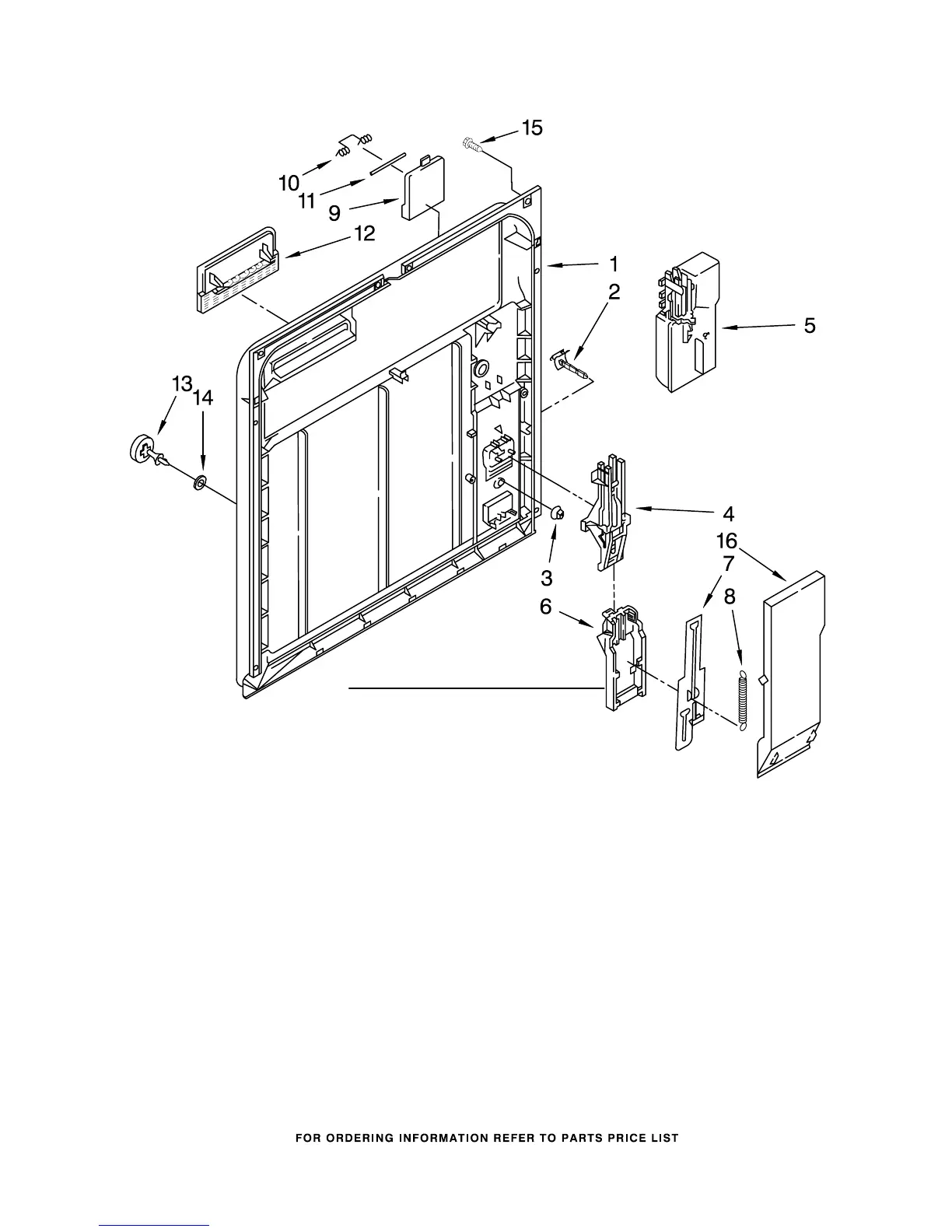

INNER DOOR PARTS
2
870509
Illus. Part
No. No. DESCRIPTION
1 3371481 Inner Door
(Also Order Latch
Door Kit 676413)
2 3376066 Latch, Detergent
Dispenser
3 3369061 Snap, Detergent
Dispenser
4 3369055 Actuator Assembly
5 3368967 Wet Agent,
Dispenser
6 3369000 Draw Bar (Upper
Dispenser)
7 3369602 Draw Bar (Lower
Dispenser)
8 3368999 Spring (Draw
Bar)
9 3376404 Lid Assembly
10 300106 Spring, Lid
11 3372028 Pin (Lid Hinge)
(Also Order
Item #10)
12 3371710 Screen, Vent
13 3369512 Wet−Agent Cap
Assembly
14 3369155 Seal (Wet−Cap)
15 3369051 Screw
16 3371569 Cover, Drip
For Model: DU900PCDB4 ,DU900PCDQ4, DU900PCDZ4
Black, Designer White, Designer Almond
