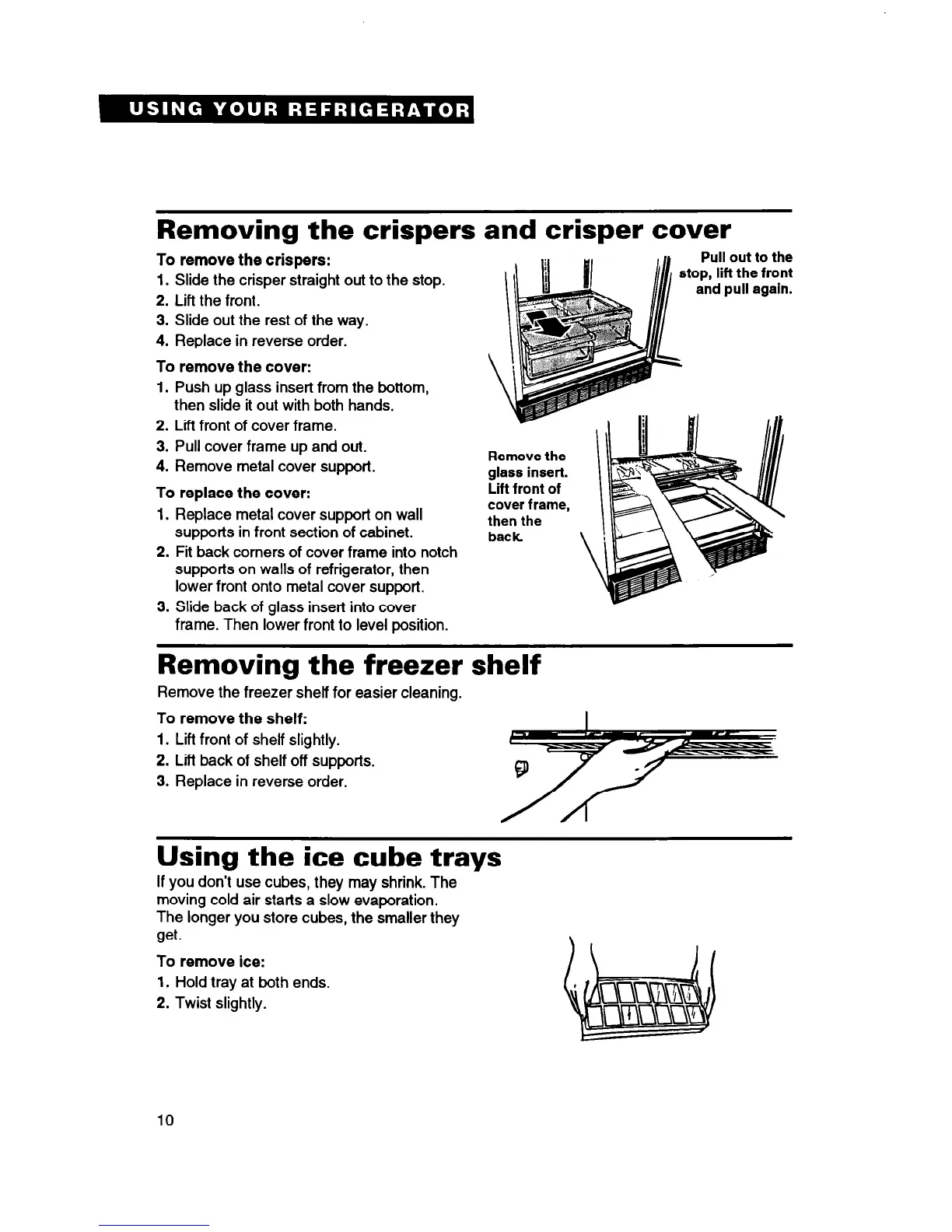

Removing the crispers and crisper cover
To remove the crispers:
1. Slide the crisper straight out to the stop.
2. Lift the front.
3. Slide out the rest of the
way.
4. Replace in reverse order.
To remove the cover:
1. Push up glass insert from the bottom,
then slide it out with both hands.
2. Lift front of cover frame.
3. Pull cover frame up and out.
4. Remove metal cover support.
To replace the cover:
1. Replace metal cover support on wall
supports in front section of cabinet.
2. Fit back corners of cover frame into notch
supports on walls of refrigerator, then
lower front onto metal cover support.
3. Slide back of glass insert into cover
frame. Then lower front to level position.
I e
Pull out to the
Remove the
glass insert.
Lift front of
cover frame,
then the
back
Removing the freezer shelf
Remove the freezer shelf for easier cleaning.
To remove the shelf:
1. Lift front of shelf slightly.
2. Lift back of shelf off supports.
3. Replace in reverse order.
Using the ice cube trays
If you don’t use cubes, they may shrink. The
moving cold air starts a slow evaporation.
The longer you store cubes, the smaller they
get.
To remove ice:
1. Hold tray at both ends.
2. Twist slightly.
10
