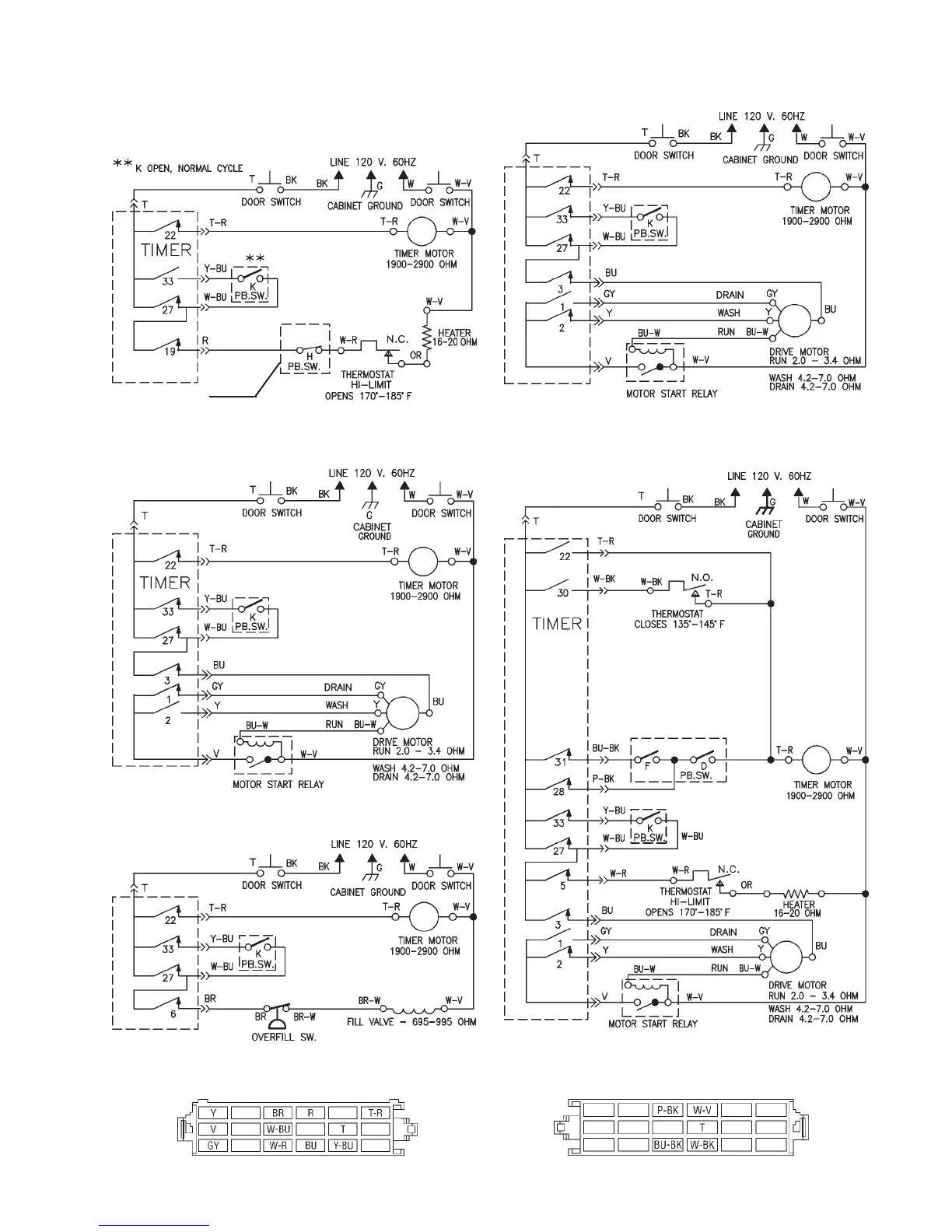

Strip Circuits
HEAT DRY (Steps 30 - 44)
FILL (Steps 1, 9, 14, 23, 48)
WASH (Steps 2 - 7, 10 - 12, 15 - 20, 24 - 28, 49)
DRAIN (Steps 8, 13, 21 - 22, 29, 50)
WATER HEATING (Steps 6 - 7, 18 - 19, 23 - 24)
NO HEAT DRY
(Switch H OPEN)
Harness Terminal Block (Wire End)
Black White
To Next Page
