Whirlpool LFP580GR - Washing Machine Troubleshooting Guide; Power Source Troubleshooting

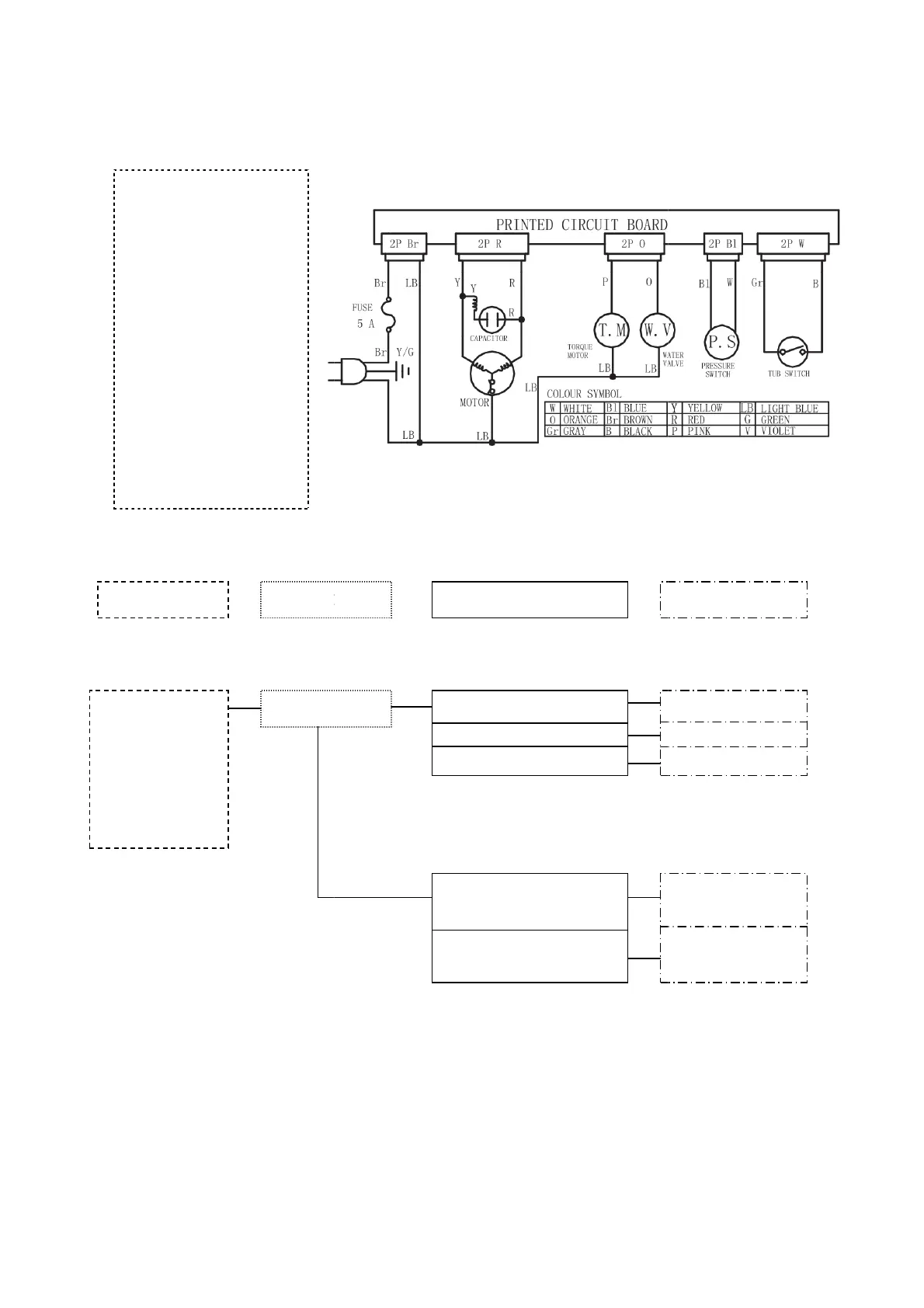

CIRCUIT DIAGRAM
TROUBLE SHOOTING
a. Power Source
No
COLOR SYMBOL
Gr
Bl
G
B
LB
Br
O
P
R
W
Y
V
GRAY
BLUE
GREEN
BLACK
LIGHT BLUE
BROWN
ORANGE
PINK
RED
WHITE
YELLOW
VIOLET
TROUBLE
INSPECTION
Any indications
and beep do not
work when
power switch is
on and the start
button is pressed
INSPECTION
Is fuse blown?
3
Yes
No
INSPECTION
CAUSES
INSPECTION
Is fuse blown?
Deterioration of fuse.
Motor is defective.
Capacitor is defective.
Poor connect of 6-pin
connectors (blue&white).
Control circuit board is
defective
LFP580GR
REMEDY
Replace.
Replace.
Replace.
Repair or replace.
Replace.
