Whirlpool LSP680GR - Circuit Diagram Overview; Troubleshooting: Power Source

3

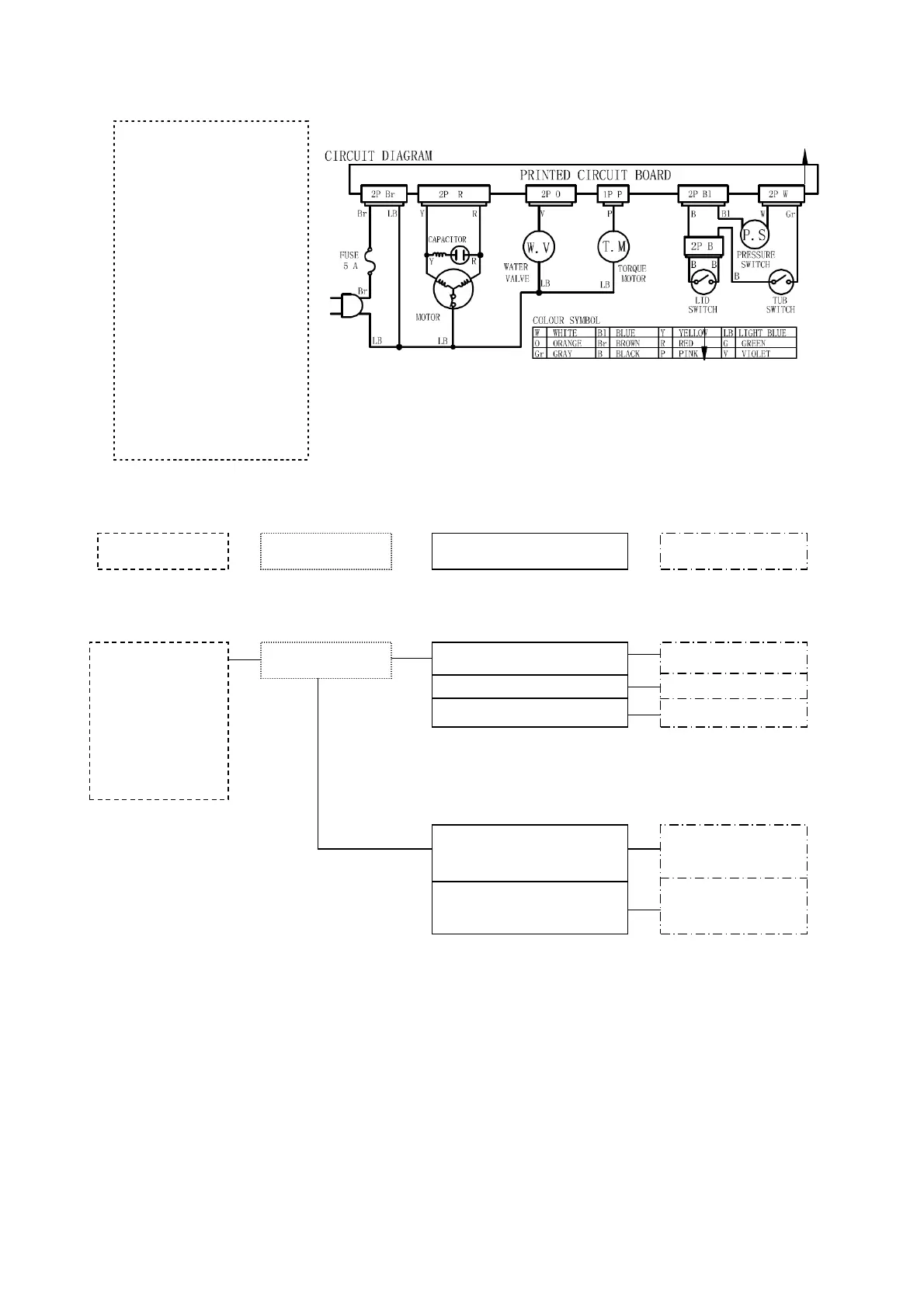

CIRCUIT DIAGRAM
THOUBLESHOOTING
a. Power Source
Yes
No
COLOR SYMBOL
Gr
Bl
G
B
LB
Br
O
P
R
W
Y
V
GRAY
BLUE
GREEN
BLACK
LIGHT BLUE
BROWN
ORANGE
PINK
RED
WHITE
YELLOW
VIOLET
TROUBLE INSPECTION CAUSES REMEDY
Any indications
and beep do not
work when
power switch is
on and the start
button is pressed
INSPECTION
Is fuse blown? Deterioration of fuse.
Motor is defective.
Capacitor is defective.
Replace.
Replace.
Replace.
Poor connect of 6-pin
connectors (blue&white).
Control circuit board is
defective
Repair or replace.
Replace.
