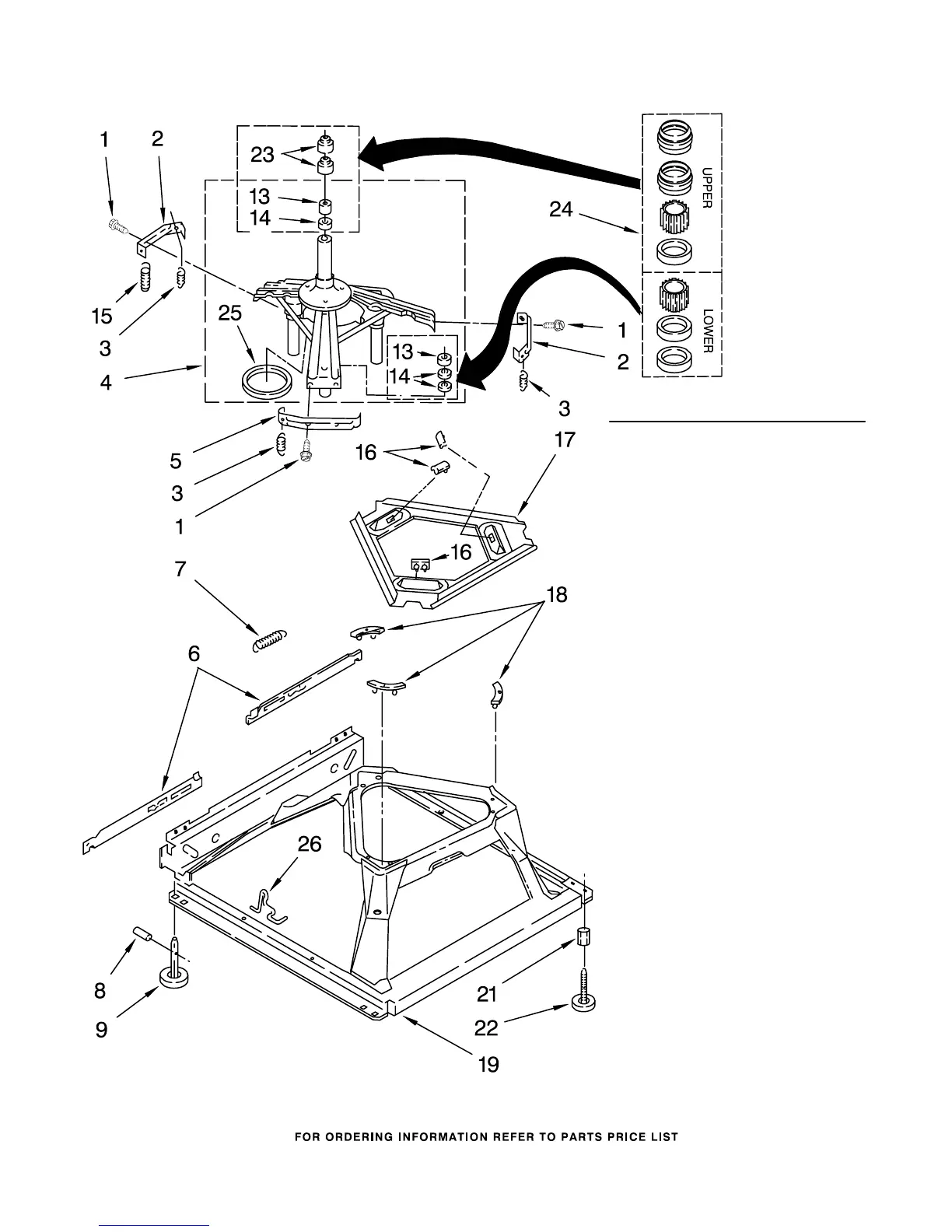

MACHINE BASE PARTS
7
For Model: LSQ8000LQ1
(Designer White)
8180107
Illus. Part
No. No. DESCRIPTION
1 3400076 Screw, Bracket
Mounting
(10−32 x 5/8)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring
Suspension,(3)
4 3362087 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
6 63466 Link, Leveling
Mechanism (2)
7 62597 Spring, Leveling
Mechanism
8 62837 Pin, Knurled
9 62596 Foot, Rear (2)
13 3347047 Bearing,
Centerpost (2)
14 357409 Seal, Centerpost (3)
15 388492 Spring,
Counterweight
16 62568 Pad, Plate
17 3946509 Plate, Suspension
(Includes Illus. 16)
18 3363660 Pad, Base
19 3946512 Base Assembly
(Includes Illus, 6,
7, 8, 9, 16, 17,
18, & 26 )
21 3359452 Nut, Lock
(3/8−16) (2)
22 389102 Foot, Front (2)
23 356934 Seal, Centerpost (2)
24 285203 Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)
25 63134 Ring, Sound
Deadening
26 63806 Retainer,
Suspension Spring
To Next Page
