8. Route ice maker wire harness and jumper away from moving
parts and ll tube. Conrm the bail arm can move freely
between the lowered and horizontal positions.
9. Install air diverter by inserting 2 tabs into openings (A) in
freezer air grille then snapping the clip into slot (B).
10. If your ice maker has an ON / OFF rocker switch, ip the
switch to the OFF (O) position until water connection is
complete.
11. If your ice maker does not have a rocker switch, raise wire
shut o arm to the OFF (up) position until water connection is
complete.

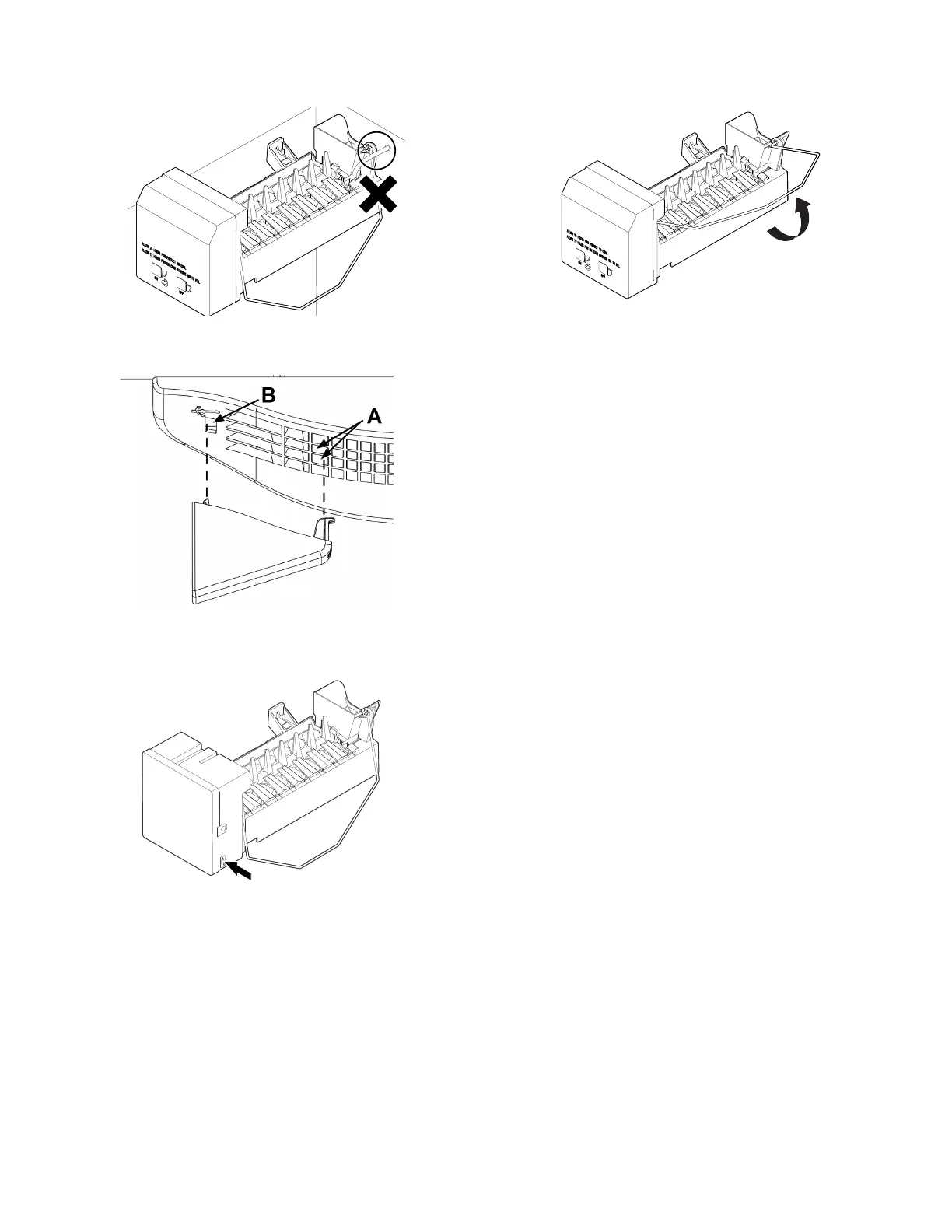

A Tabs
B Clip
Turning the ice maker o (rocker switch)
Turning the ice maker o (shut-o arm)
Incorrect harness position (restricting bail arm)
