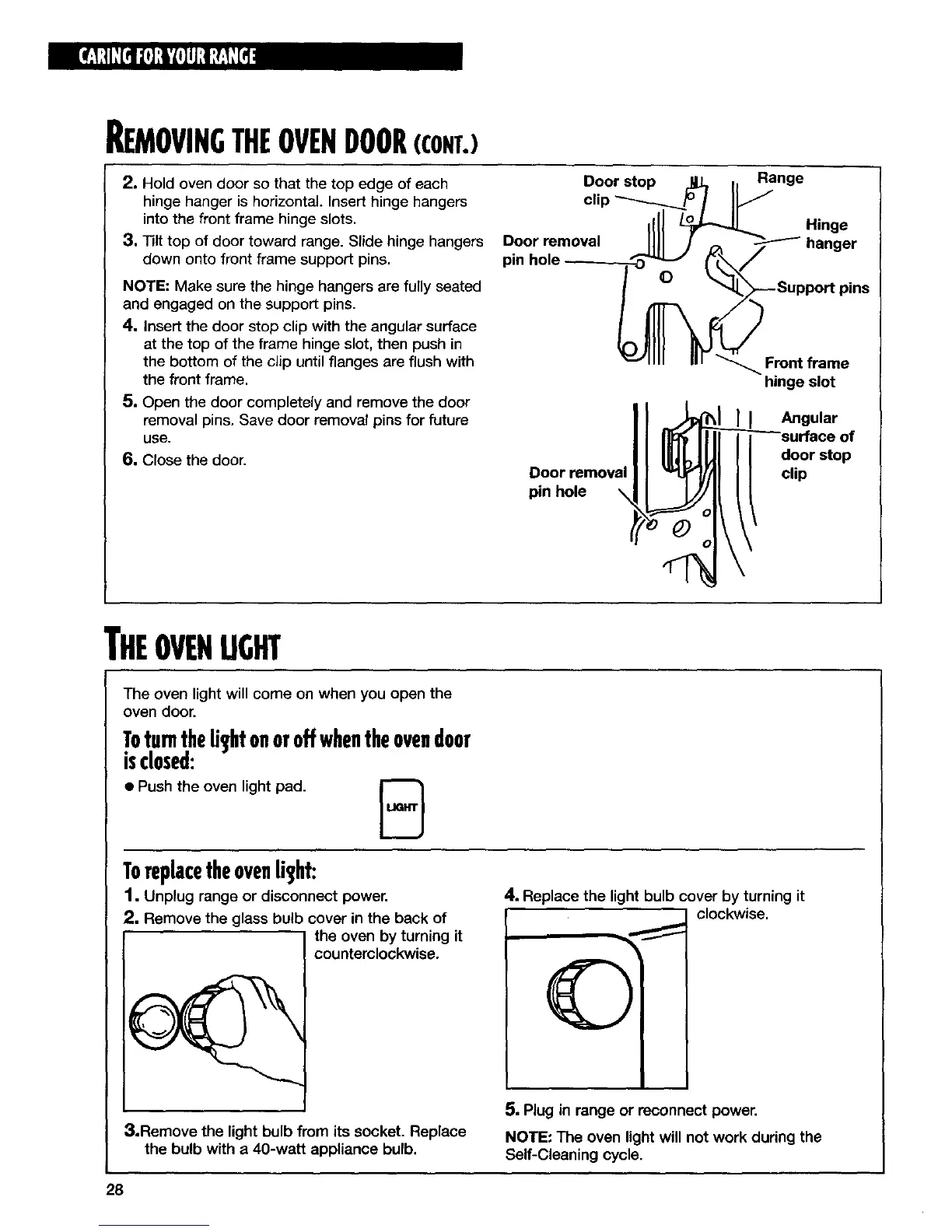

REMOVINGTHEOVENDOOR(CONT.)
2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3, Tilt top of door toward range. Slide hinge hangers
down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully seated
and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6. Close the door.
Door removal
pin hole
Front frame
hinge slot
I Angular
of
door stop
clip
THEOVENUGHT
The oven light will come on when you open the
oven door.
Toturnthelightonoroffwhentheovendoor
isclosed:
• Push the oven light pad.
U
Toreplacetheovenlight:
1. Unplug range or disconnect power.
2. Remove the glass bulb cover in the back of
I the oven by turning it
counterclockwise.
4. Replace the light bulb cover by turning it
clockwise.
3.Remove the light bulb from its socket. Replace
the bulb with a 40-watt appliance bulb.
5. Plug in range or reconnect power.
NOTE: The oven light will not work during the
Self-Cleaning cycle.
28
