Whirlpool W10366204A - Door Removal and Replacement

10
French Doors
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

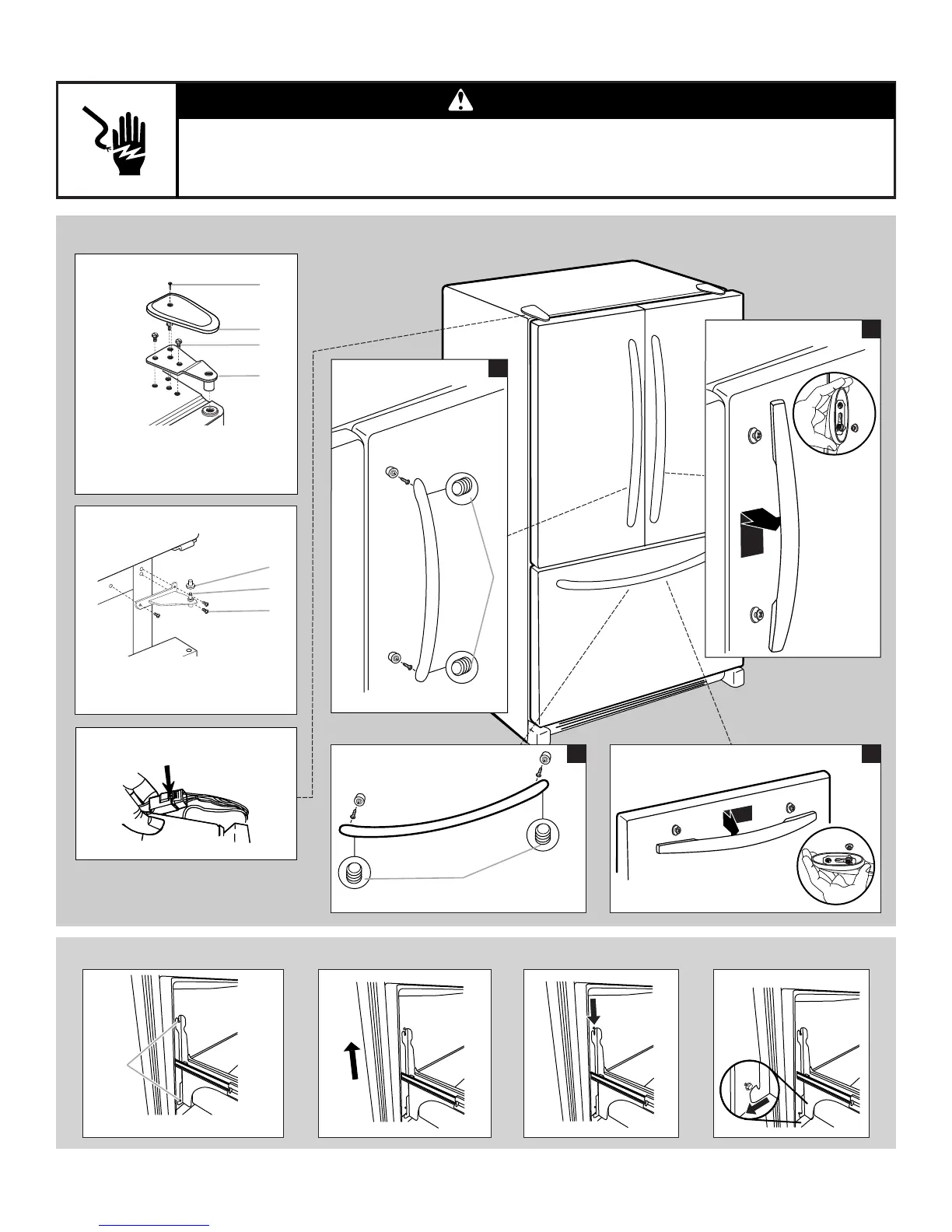

Door Removal and Replacement
A. ³⁄₃₂" or ¹⁄₈" Setscrew
A
A
Style 1 - Handle
Style 1 - Handle
Style 2 - Handle
Style 2 - Handle
1
1
22
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex Head Hinge Screws
D. Top Hinge
B
A
C
D
A. Hinge Pin Cover
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
Wiring Plug
A
B
C
Drawer Front Removal
A. Loosen 4 Door Bracket Screws
A
Drawer Front Replacement
A. ³⁄₃₂" or ¹⁄₈" Setscrew
