www.whisperkool.com | Page 15
Platinum Split

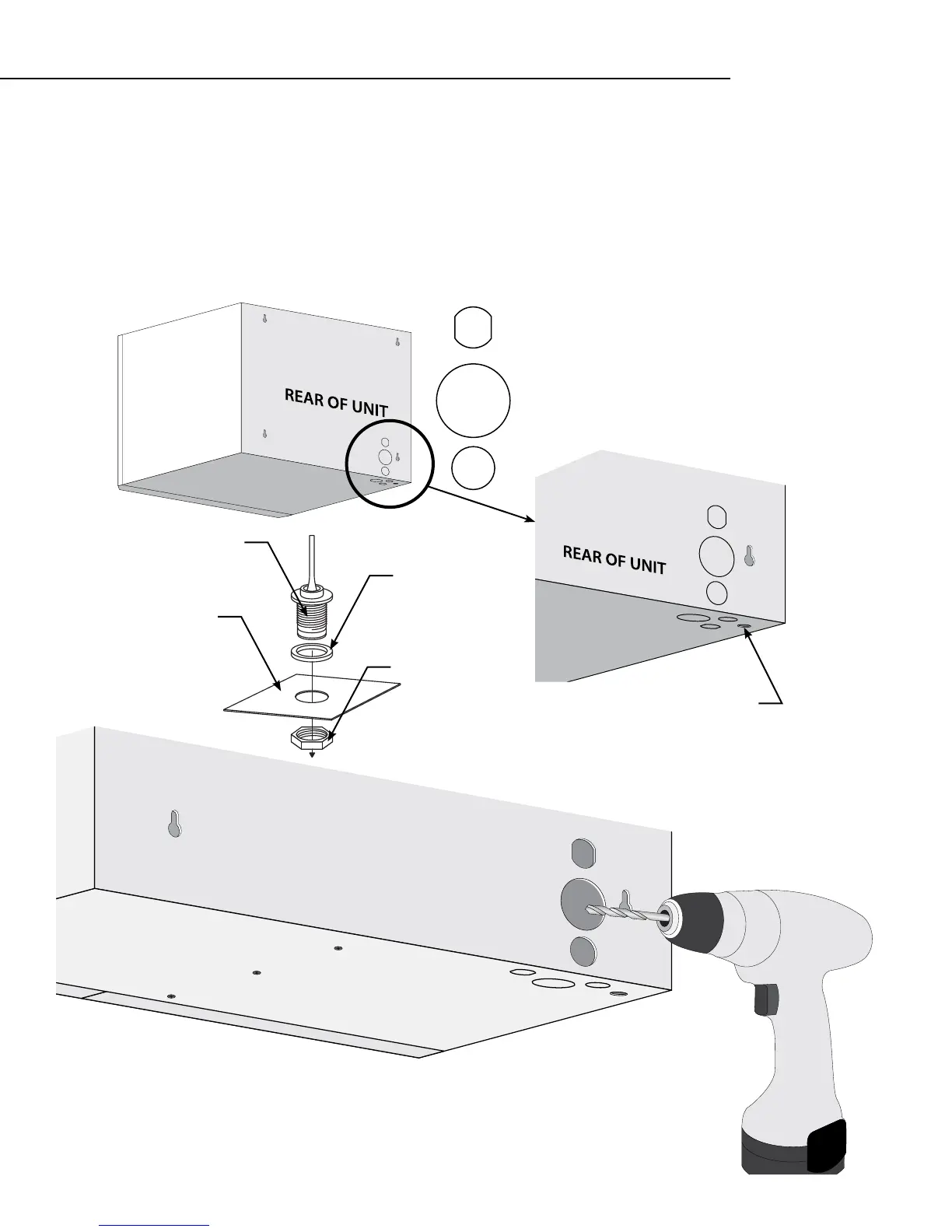

PREPARING THE FULLY DUCTED EVAPORATOR UNIT (FAN COIL UNIT)
1. Remove the knockouts for the drain line, line set, and electrical on the bottom or rear of the unit depending on your
installation location.
2. Remove the insulation from the knockout holes.
3. Route the bottle probe from the cellar to the Evaporator Unit. Follow the directions on page 14 for correct installation and
location of the bottle probe.
4. Follow the directions on page 18 to mount the remote keypad and run the communication cable to the Evaporator Unit.
RUBBER WASHER
NUT
UNIT PANEL
CIRCULAR CONNECTOR/
BOTTLE PROBE INPUT
Power
3/8” Suction
1/4” Liquid
Drain
HOLE FOR CIRCULAR CONNECTOR
(BOTTLE PROBE INPUT)
