Minimum Tools Needed:
Fully Exposed
Mounting Option
Flush Mount
Mounting Option
Choose a Mounting
Option suitable
for the installation
location.
Partially Recessed
Mounting Option

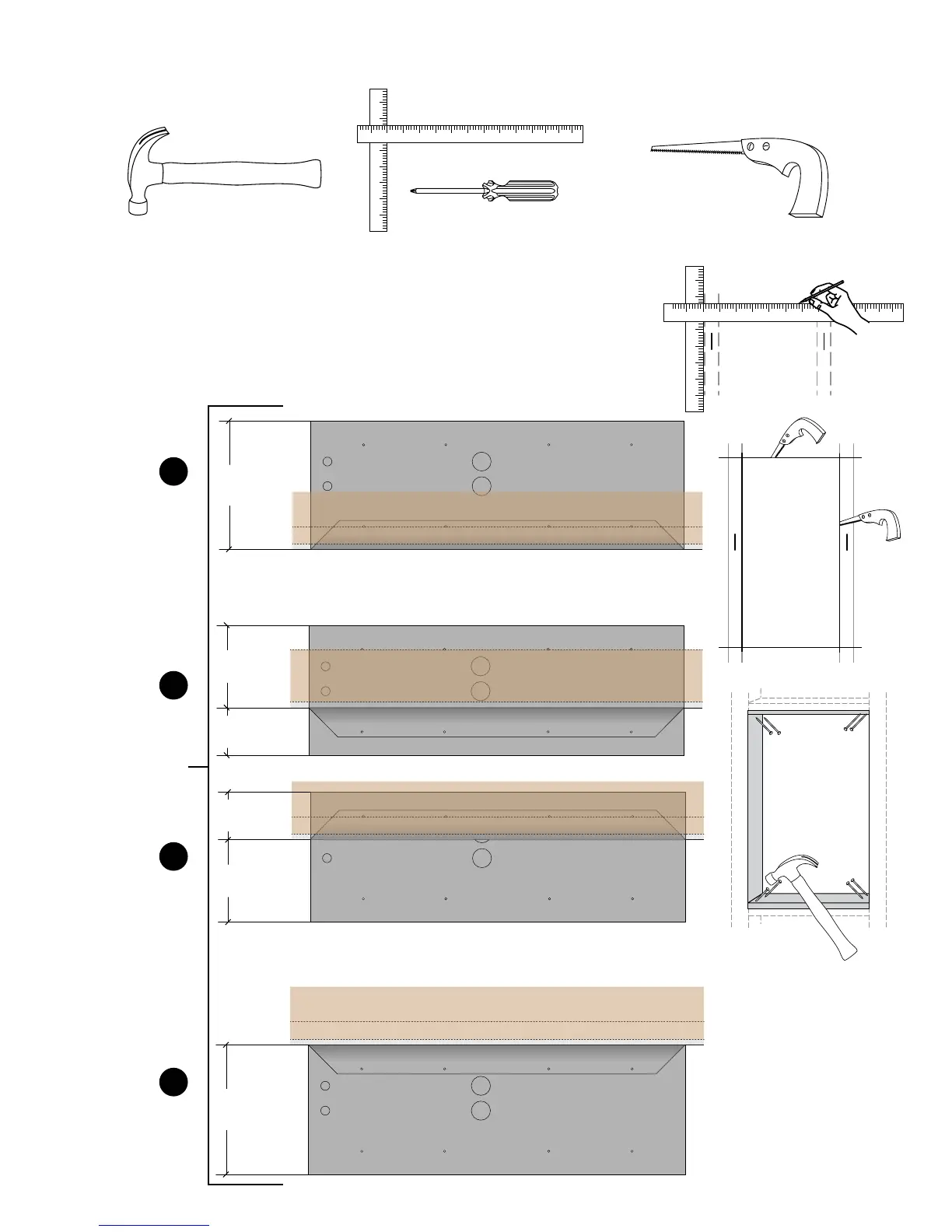

Locate the desired installation location. Using a stud nder, locate the ceiling
joists on either side of the center point. Cut and frame an opening in the
ceiling measuring 14.5” x 36”. Make sure the framing is sucient to support
the weight of the cooling unit. It is highly recommended to use only the
mounting locations provided. These locations ensure that the installer
will not drill into any copper or electrical within the system.
Hammer Saw
Phillips Head #2
Screwdriver
PREPARING THE INSTALLATION LOCATION
T-Square
1
2
3
4
12.65”
12.65”
5.75”
6.9”
6.9”
5.75”
