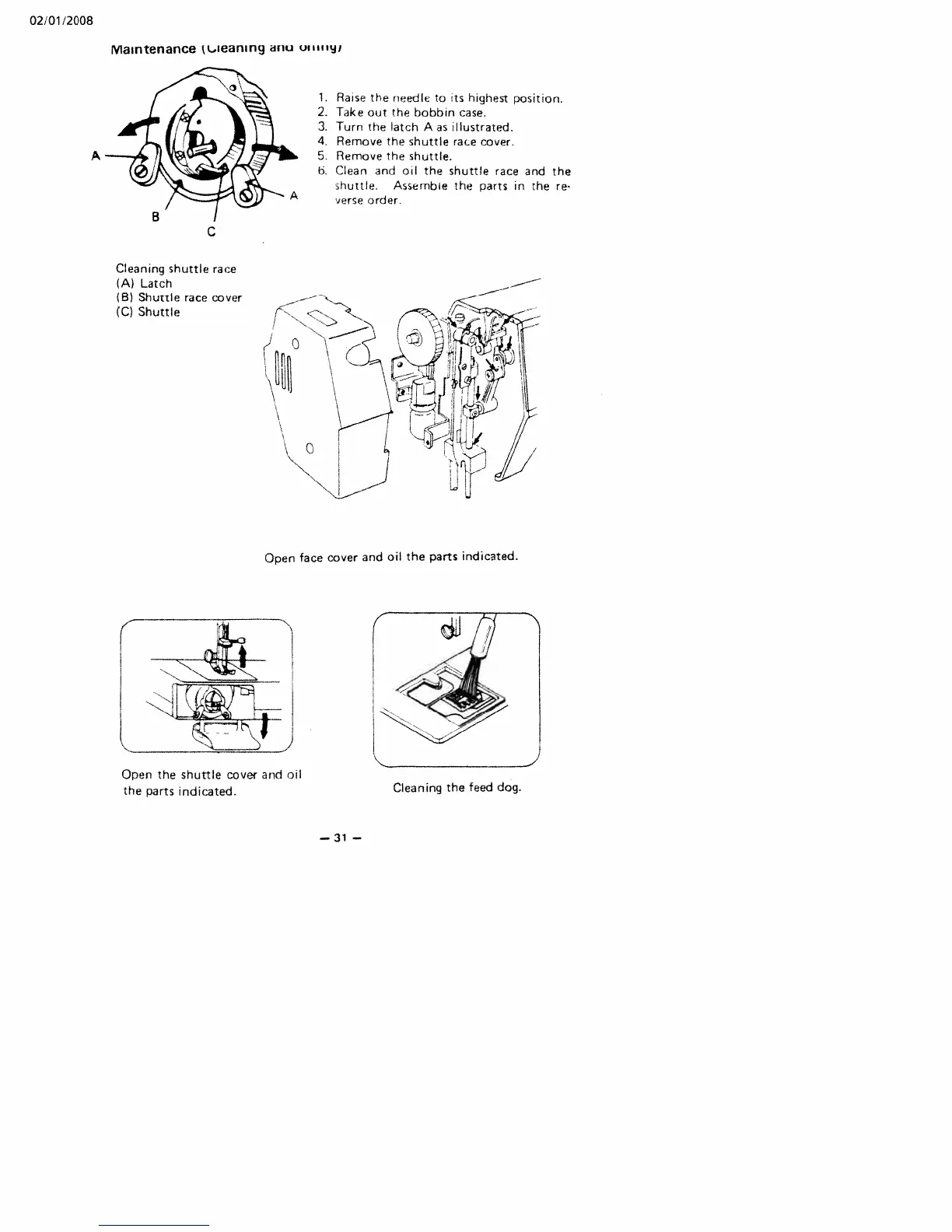

White 140 - Machine Maintenance and Cleaning

02/01/2008
Maintenance
çieaninq
anu
uttiti,
()
1. Raise the
needle to ts highest
position.
2. Take
out the bobbin
case.
3, Turn the
latch A as illustrated.
4.
Remove the
shuttle race cover.
A
5.
Remove the shuttle.
b. Clean and oil the
shuttle race
and the
B
A
verse
order
the
parts
in
the re
Cleaning
shuttle race
(A>
Latch
(B)
Shuttle race cover - ..
(C)
Shuttle .
., .-.. /
fN—’
- —n.
j’
/
Open
face
cover
and
oil
the parts indicated.
4fl
Open the shuttle cover and
oil
the
parts
indicated.
Cleaning
the
feed dog.
—
