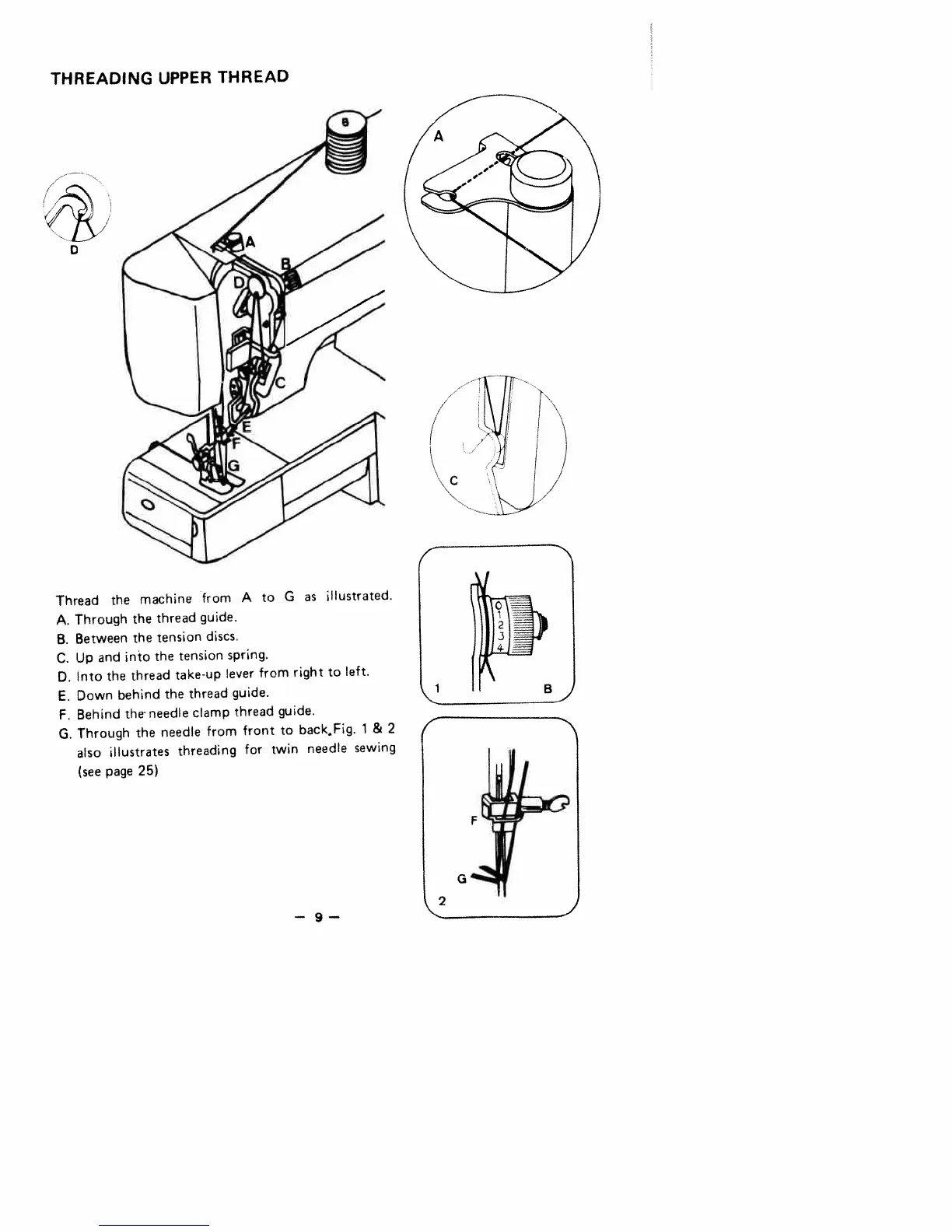

White 1766 - Upper Threading Guide; Routing the Upper Thread Path

THREADING
UPPER
THREAD
1’
‘I)
Thread
the
machine
from
A
to
G
as
iflustrated.
A.
Through
the
thread
guide.
B.
Between
the
tension
discs.
C.
Up
and
into
the
tension
spring.
D.
Into
the
thread
take-up
lever
from
right
to
left.
E.
Down
behind
the
thread
guide.
F.
Behind
the
needle
clamp
thread
guide.
G.
Through
the
needle
from
front
to
back.Fig.
1
&
2
also
illustrates
threading
for twin
needle
sewing
(see
page
25)
C
---)
F
—9—
2
