Step 3.

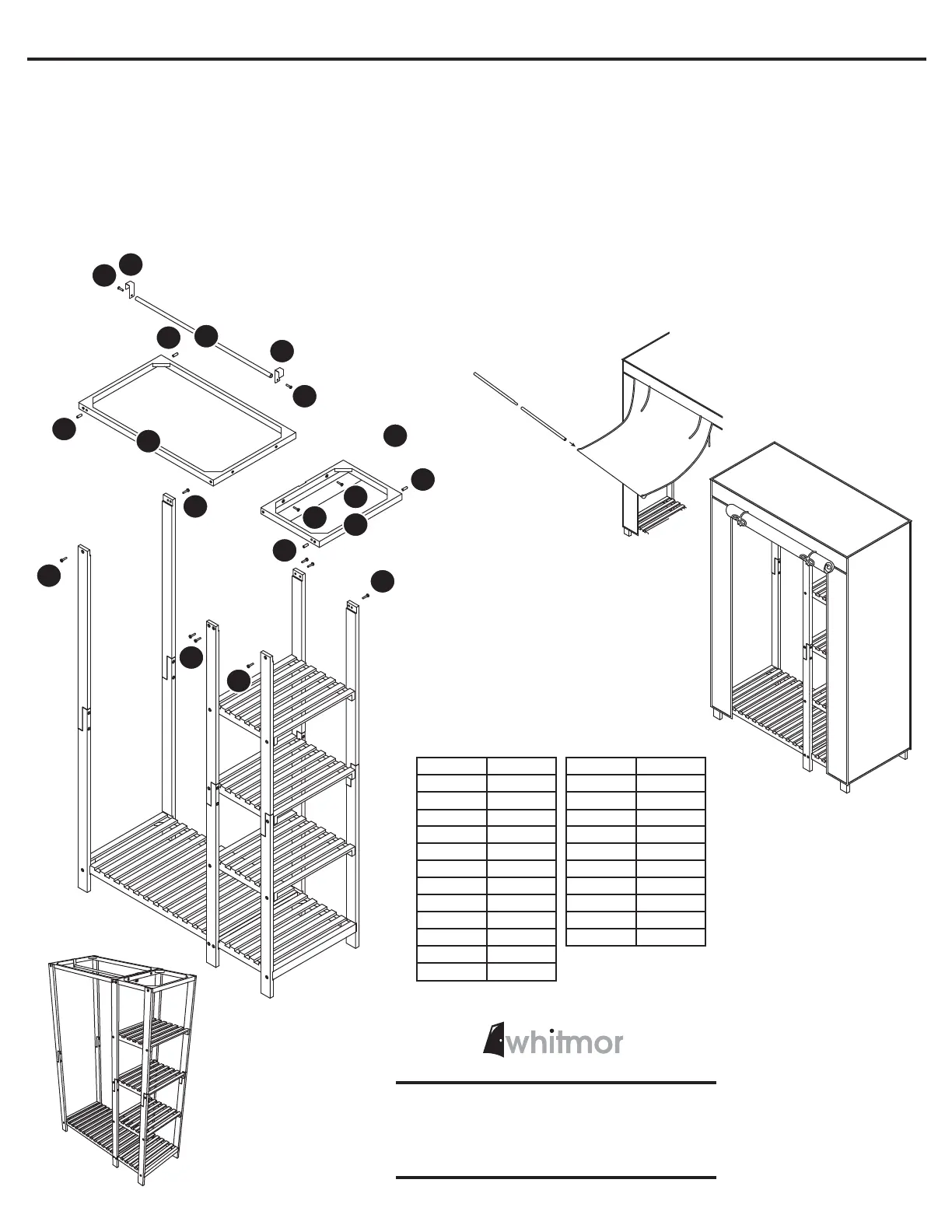

To assemble the top section, attach top long frame (P)
and top short frame (Q) together using two hex screws
(T). Insert four wooden pegs (X) into peg holes in top
frames (P & Q). Insert assembled top section to top
vertical supports using eight hex screws (T). Insert
hanging bar brackets (R) into top frame assembly. Install
hanging bar (S) using two hanging bar hex screws (V).
Tighten all hex screws using hex wrench (W).
P
S
R
V
T
T
X
X
X
X
T
T
T
T
T
T
V
R
Q
Step 4.
(Optional cover sold separately)
To assemble the optional cover, open the front and
work the cover up over the top of the assembled
frame. Align the frame corners to the inside seams of
the cover. Work the cover sides down to the base.
Using the ties inside the cover, tie to the
frame or shelves at the locations closest to the ties.
Assemble the two piece cover bar together and
insert into the bottom of the cover door. To leave the
door open roll it up and tie it in the open position.
Untie and let the door unroll for the closed position.
The weight of the bar will keep the door closed.
Part Reference
N
O
P
Q
R
S
T
U
V
W
X
F7886
F7887
F7889
F7890
F7891
F7892
F7893
F7894
F7895
F7896
F7955
Part Reference
A
B
C
D
E
F
G
H
I
J
K
L
M
F7873
F7874
F7875
F7876
F7877
F7878
F7879
F7880
F7881
F7882
F7883
F7884
F7885
