6 www.whizzsystems.com FMC+ Loopback Connectivity Card User Guide
version 1.0 March 15, 2017
System Setup;

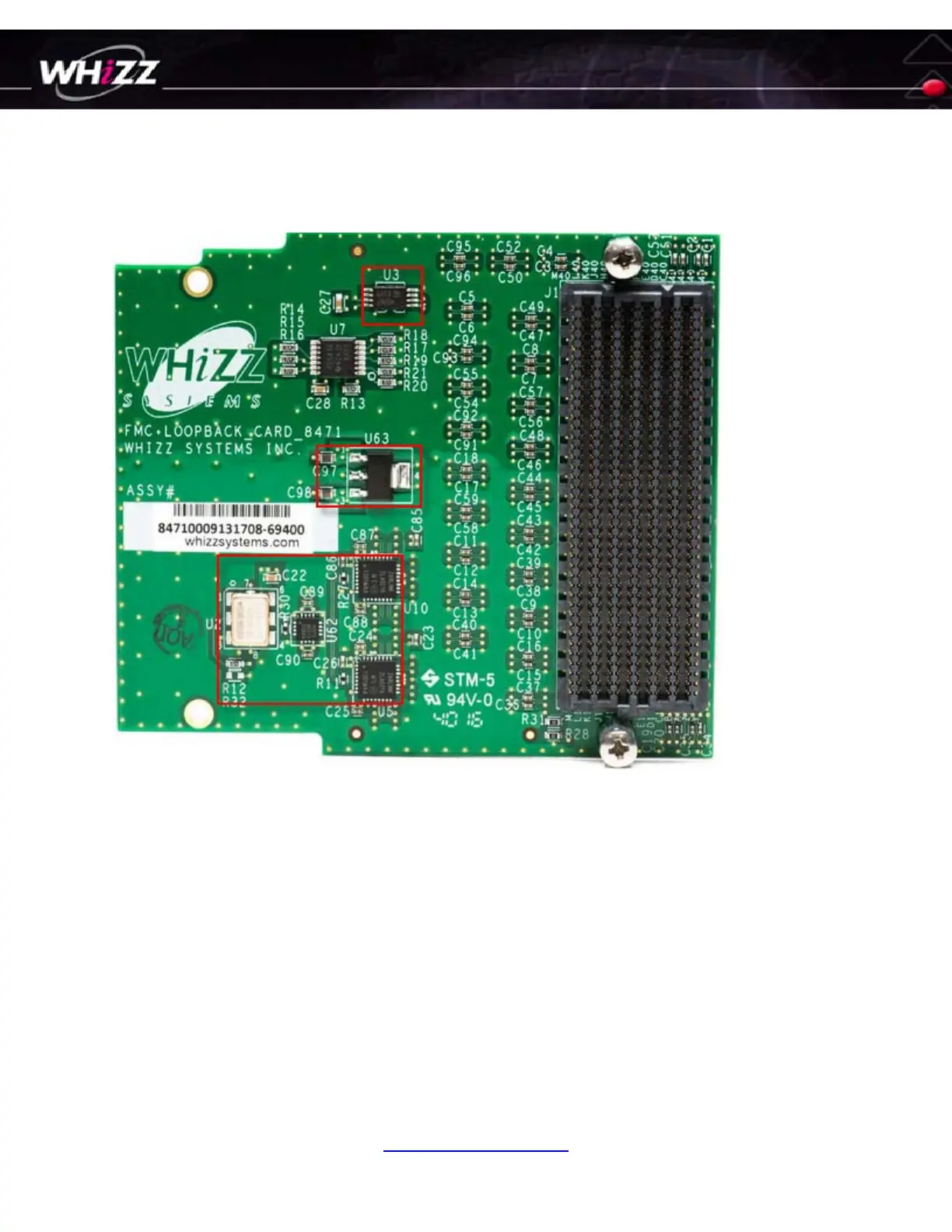

Figure 1: FMC+ Loopback Card (Component Side)
1. J1 --- FMC+ Plug Connector High Pin Count (FMC+ HPC)
2. U3 --- EEPROM
3. U62, U5, U10 --- Clock Buffer/Distribution chip
4. U2 --- Clock Generator
5. U7 --- I2C Buffer
