Facnor - Installation manual rev 2016 – LS/LX/RX reefing and furling systems

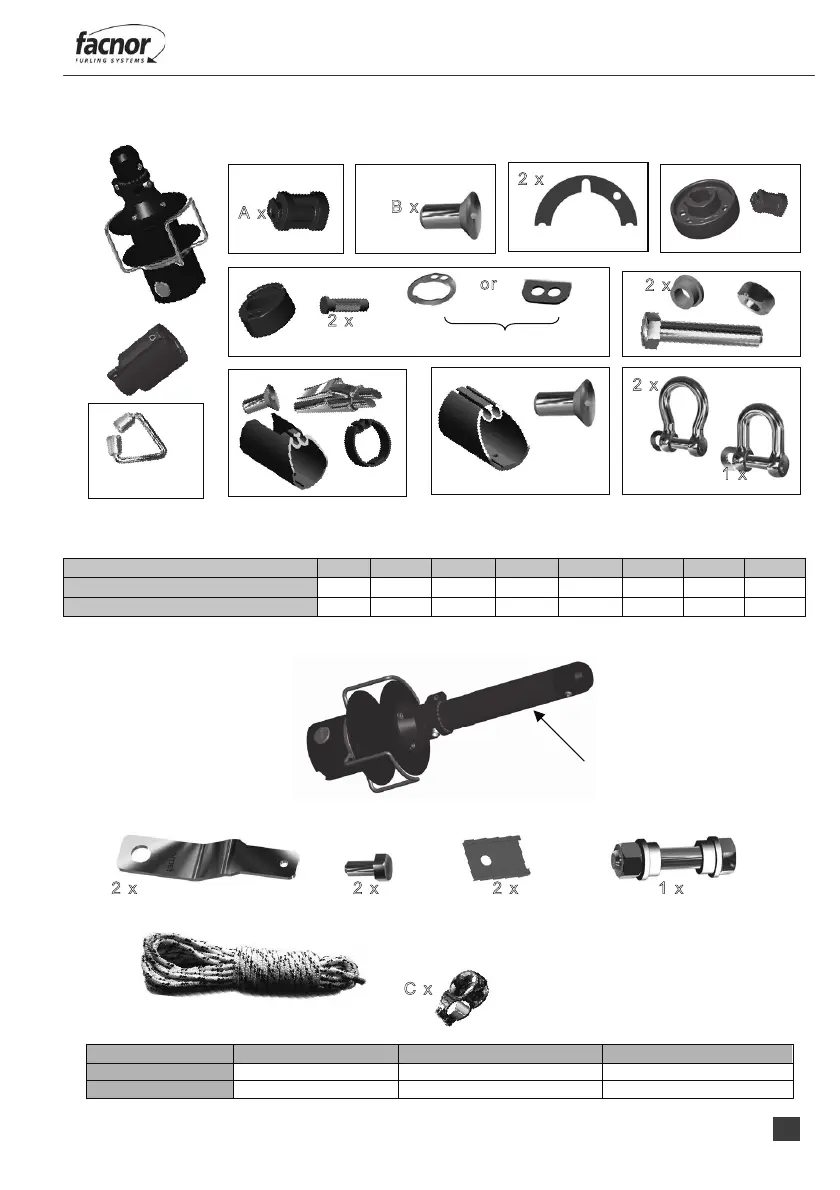

2.1 BOX CONTENT
2.1.1 Standard components
Chart No1
Maximum forestay length
8M30
10M40
12M40
14M40
16M40
18M40
20M40
22M40
A = Number of bushings necessary*
7
8
9
10
11
12
13
14
B = Number of screws necessary *
16
20
24
28
32
36
40
44
* NOTE : the quantity contained in the bag is superior to the number of screws or bushings required
2.1.2 Optional extras (not included in standard kit)
! Internal turnbuckle option
! Turnbuckle kit (for installation see p. 24)
! Furling line kit (for installation see p. 26)
Chart No.2
Length-rope Ø
20M x Ø 06MM
24M x Ø 08MM
24M x Ø 10MM
Quantity C
44
4
4
Furl. system model
LS/LX 60-100 RX70-100
LS/LX 130-180 RX130-200
LS/LX 200-290 RX260-300
19
Drum fitted with internal turnbuckle option

LS/RX/RS models


LX models
See chart No1
See chart No1



LX/RX/RS
models

LX/RX
models





