WIEDER TWO TONE - Part List-Model No. WECCBE09920; Part Identification Chart

Key Qty. Description
No.
Key Qty. Description
No.
Key Qty. Description
No.
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this
manual for information about ordering replacement parts.

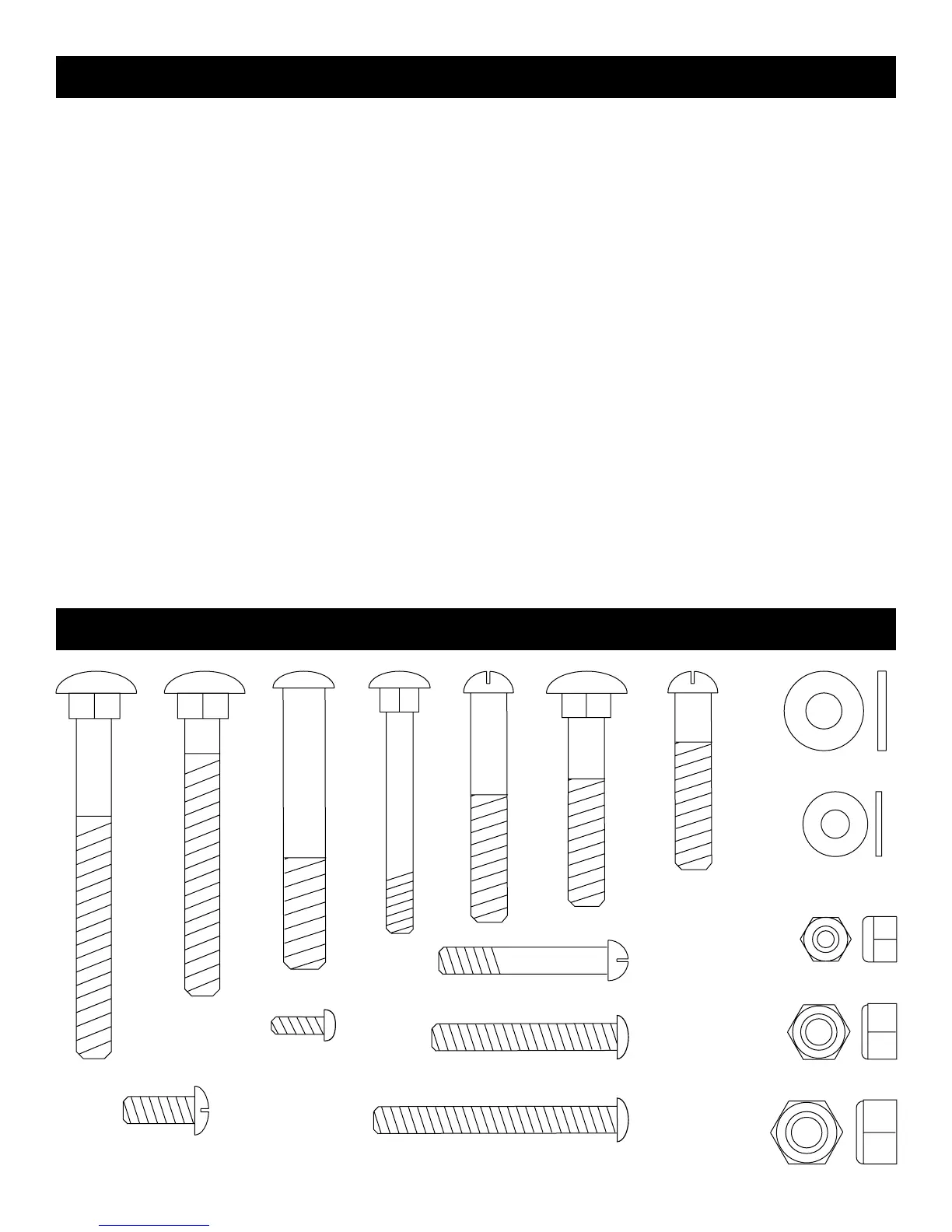

M4 x 12mm
Screw (39)
M6 x 16mm Button Screw (40)
M6 x 42mm Button Screw (46)
M6 x 55mm Button Screw (43)
M6 Washer (38)
M6 Nylon
Locknut (44)
M8 Washer (35)
M8 Nylon
Locknut (34)
M10 Nylon
Locknut (36)
M8 x 43mm Carriage Bolt (32)
M8 x 52mm Button Bolt (42)
M6 x 50mm Carriage Bolt (45)
M8 x 77mm Carriage Bolt (41)
M8 x 40mm Button Bolt (33)
M6 x 34mm Button Bolt (47)
M8 x 63mm Carriage Bolt (31)
M10 x 64mm Button Bolt (37)
Part List—Model No. WECCBE09920
R0402A
Part Identification Chart
1 1 Backrest Frame
2 1 Base
3 1 Adjustment Frame
4 1 Backrest
5 4 Spring Clip
6 1 Press Plate
7 1 Pivot Frame
8 2 Rear Stabilizer
9 2 Front Stabilizer
10 2 Ab Handlebar
11 1 Ab Frame
12 1 Ab Leg
13 1 Large Seat
14 1 Large Support Plate
15 1 Seat Frame
16 2 28.6mm Round Inner
Cap
17 1 30mm Square Inner Cap
18 1 Angled Cap
19 1 End Plate
20 1 Support Plate
21 1 Handlebar
22 2 Grip
23 8 2” Round Outer Cap
24 1 38mm Square Inner Cap
25 2 25-lb. Band
26 1 Adjustment Pin
27 1 Slider Bushing
28 2 10-lb. Band
29 1 Small Seat
30 2 1” x 2” Inner Cap
31 8 M8 x 63mm Carriage Bolt
32 2 M8 x 43mm Carriage Bolt
33 2 M8 x 40mm Button Bolt
34 18 M8 Nylon Locknut
35 10 M8 Washer
36 1 M10 Nylon Locknut
37 1 M10 x 64mm Button Bolt
38 4 M6 Washer
39 1 M4 x 12mm Screw
40 5 M6 x 16mm Button
Screw
41 2 M8 x 77mm Carriage Bolt
42 4 M8 x 52mm Button Bolt
43 1 M6 x 55mm Button
Screw
44 3 M6 Nylon Locknut
45 1 M6 x 50mm Carriage Bolt
46 2 M6 x 42mm Button
Screw
47 2 M6 x 34mm Button Bolt
48 2 Short Sleeve
49 2 Long Sleeve
# 1 User’s Manual
# 1 Exercise Video
