Installation instructions (Translation from original)
podis
®
CON Tray cable
podis® CON 7G4, podis® CON 5G6, podis® CON 5G16
Wieland Electric GmbH
Brennerstraße 10-14
96052 Bamberg
Tel.: +49 (951) 9324-0
Fax: +49 (951) 9324-198
Internet: www.wieland-electric.com
Email: info@wieland-electric.com
Doc. # BA000220 – 07/2018 (Rev. B)

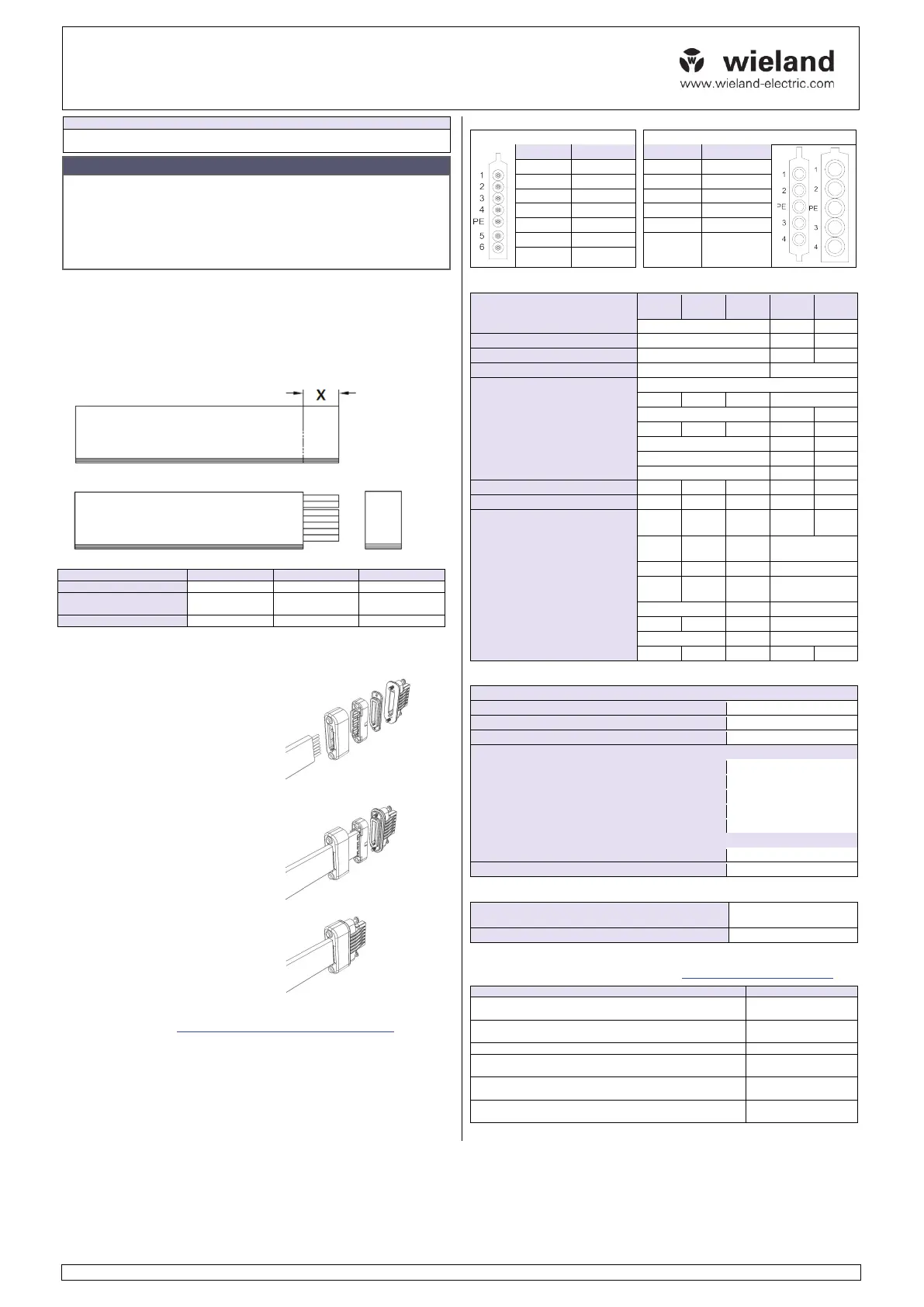

podis®
CON Tray cable EN
NOTE
Personnel which installs and operates or maintains this device must have read and
understood these instructions.
WARNING
• Electric installations, placing devices into operation and maintenance tasks may only
be carried out by qualified electricians with relevant training in accident prevention
and while adhering to applicable regulations.
• Protective measures and mechanisms must correspond to applicable regulations.
• Damaged products may neither be installed nor operated.
• Connect or disconnect only when de-energized!
• Before performing work on the power bus or the connected components, disconnect
the cable and components from the mains.
1 Function description
The power bus systems podis® CON 7G4, podis® CON 5G6, podis® CON 5G16 permit
decentralized power distribution in large machines and plants. The installation of this
system is quick and easy and the operation is reliable and safe.
For connection to terminal blocks in control cabinets, feed-in boxes, or to attach cable
end caps, the ends of the tray cable must be dismantled.
2 Dismantling of the cable ends
Dismantling (X mm)
7G4
5G6
5G16
Cable end cap
19 mm
35 mm
35 mm
Distributor module
End feed-in box
50 mm
–
90 mm
Terminals in cabinet
1)
> 50mm
> 50 mm
> 90 mm
1)
depending on specific condition of connections
3 Termination of the tray cable
1. Push the counterpiece with gasket over
the dismantled tray cable.
For easier handling, push the lamella in
the counter piece outwards.
2. Route the stripped end of the tray cable
into the end cap.
The openings in the end cap are coded
in accordance with the cable outline.
3. Tighten both clamping screws.
Note: A training video regarding stripping of the cables and attachment of the cable
end cap is available here: https://www.youtube.com/watch?v=oLoFVR-LJ-w
4 Cables
Permitted tray cables:
EVA
7G4
00.709.0504.1
VDE 7723
XLPE
7G4
00.729.0504.1
UL 1277 TC-ER
PVC
7G4
00.704.0504.1
UL 1277 TC-ER, cUR
XPE
5G6
00.729.0305.1
XPE
5G16
00.710.0307.1
Tray cable conductor assignment
podis® CON 7G4
podis® CON 5G6, podis® CON 5G16
Conductor
Color
Conductor
Color
1
black
1
brown
2
black
2
blue
3
black
PE
green/yellow
4
black
3
black
PE
green/yellow
4
gray
5
black
6
black
5 Technical Data
Cable type
EVA
7G4
XLPE
7G4
PVC
7G4
XPE
5G6
XPE
5G16
Nominal voltage U
N
[V]
750
1000
1000
Operating voltage U
0
[V]
450
690
690
Operating voltage acc. UL [V]
600
–
–
Wire marking
numbers
color
Sheath color
black
Sheath material
Rubber
TPE
PVC
Copolymer
Wire class
5
6
6
Bending radius, fixed [mm]
18
100
72
38
55
Cable width [mm]
35
43
44
Cable height [mm]
6
7,5
11
Weight [kg/km]
440
700
1270
Assembly temperature min. [°C]
-5
5
–
5
5
Assembly temperature max. [°C]
50
50
–
70
70
Cold storage temperature
EN 60068-2-1
96 h
-40 °C
–
–
–
–
Cold storage temperature
VDE 276-604
–
–
–
-15 °C
Flame retardant EN 50265-2-1
–
–
–
yes
Flame retardant acc. UL1685 and
CAN/CSA C22.2 No.2556
–
–
FT-4
meth. 2
Smoke acc. EN 50268-2
no
–
yes
Oil resistant acc. EN 60811-2-1
yes
–
no
Halogen free acc. EN 50267-2-3
yes
no
yes
CPR Class
–
–
–
B2
C
6 Ordering information
Cable end pieces
Cable end piece 7G4
Z5.562.7553.1
Cable end piece 5G6
Z6.563.6053.0
Cable end piece 5G16
Z6.563.6500.0
Tools
Screw Driver-Bit PH1
06.502.5200.0
Cutting Tool
95.300.0300.0
Stripping tool podis® CON 7G4
95.350.0300.0
Stripping knife podis® CON 5G6
95.350.0800.0
Stripping knife podis® CON 5G16
95.350.0900.0
Cable clips
for podis® CON 7G4
05.562.3000.0
for podis® CON 5G6, 5G16
07.432.8153.0
7 Approvals
UL
PQUR.E480715
QPOR.E301973
cUL
QPOR.E301973
8 Documents
Find more Information and operation manuals at https://eshop.wieland-electric.com/
Document
Doc. No.
Operating Instruction Connection module 7-pole
podis® CON 7G4
BA000337
Operating Instruction Tray cable tap-off 7-pole, connector
podis® CON 7G4
BA000224
System Manual podis® CON 7G4
BA000369
Operating Instruction Connection module 5-pole
podis® CON 5G6
BA001058
Operating Instruction Connection module 5-pole
podis® CON 5G16
BA000844
Operating Instruction Feed-in Box 5-pole
podis® CON 5G16
BA000845
