When mounting a bimetal thermometer that can be rotated and
swivelled, the specic instructions must be followed. In order to set
the indicator to the desired position, the following steps must be
taken:
1. The lock nut or union nut must be loosened at the process
connection.
2. The hexagon bolts and slotted screws at the swivel joint must be
loosened.
3. Position the indicator as required, tighten the hexagon bolts and
slotted screws, and nally tighten the lock nut or union nut rmly.

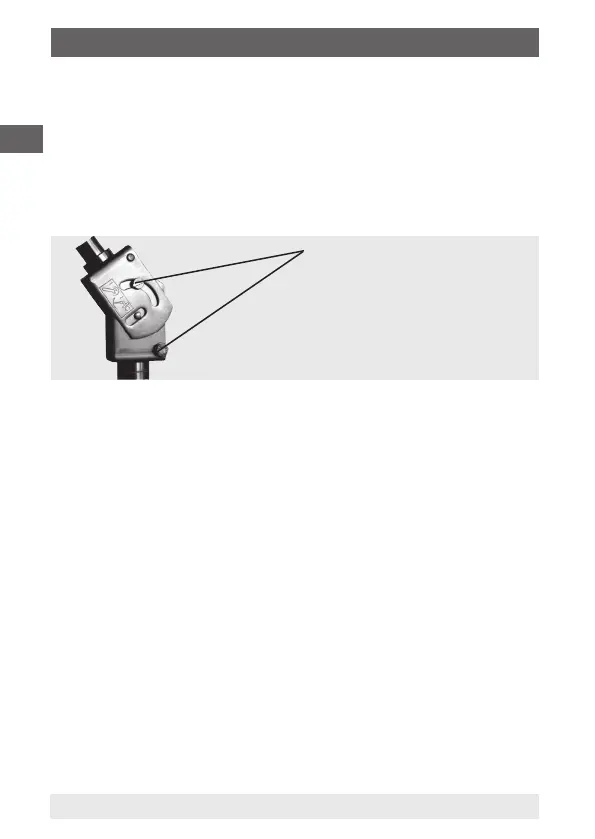

loosening
Make sure to loosen the screws
on the opposite side as well!
