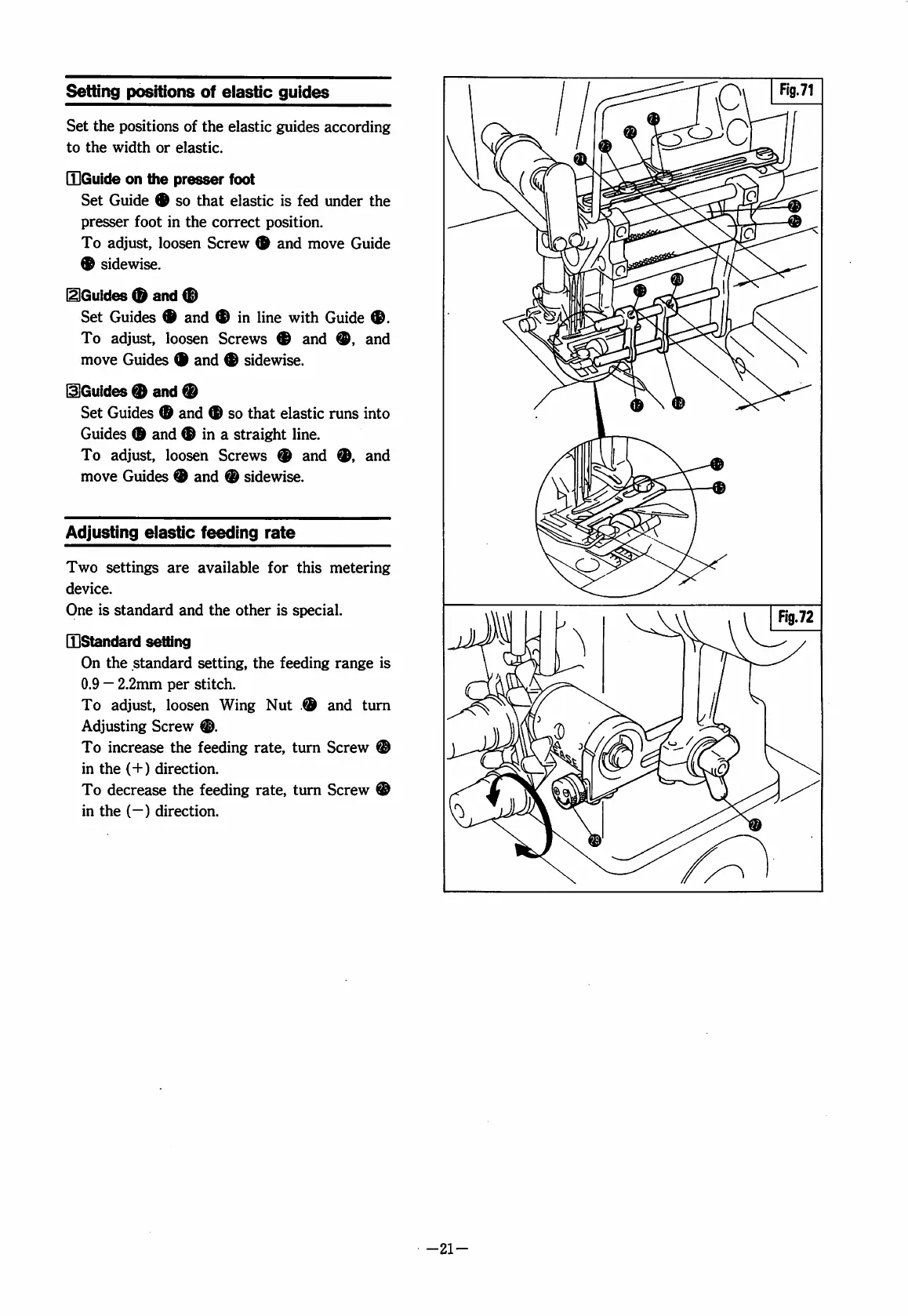

Setting positions of elastic guides
Set the positions of the elastic guides according
to the width or elastic.
dlGuide on the presser foot
Set Guide 9 so that elastic is fed under the
presser foot in the correct position.
To adjust, loosen Screw ^ and move Guide
9 sidewise.
HlGuides 0 and ®
Set Guides ® and ® in line with Guide
To adjust, loosen Screws ® and and
move Guides 9 and ® sidewise.
HlGuides ® and ®
Set Guides ® and so that elastic runs into
Guides 9 and ® in a straight line.
To adjust, loosen Screws ® and and
move Guides ® and ® sidewise.
Adjusting elastic feeding rate
Two settings are available for this metering
device.
One is standard and the other is special.
[DStandard setting
On the standard setting, the feeding range is
0.9 — 2.2mm per stitch.
To adjust, loosen Wing Nut and turn
Adjusting Screw
To increase the feeding rate, turn Screw ®
in the (+) direction.
To decrease the feeding rate, turn Screw ®
in the (—) direction.
