Williams SPACE SHUTTLE - Switch Location Diagram

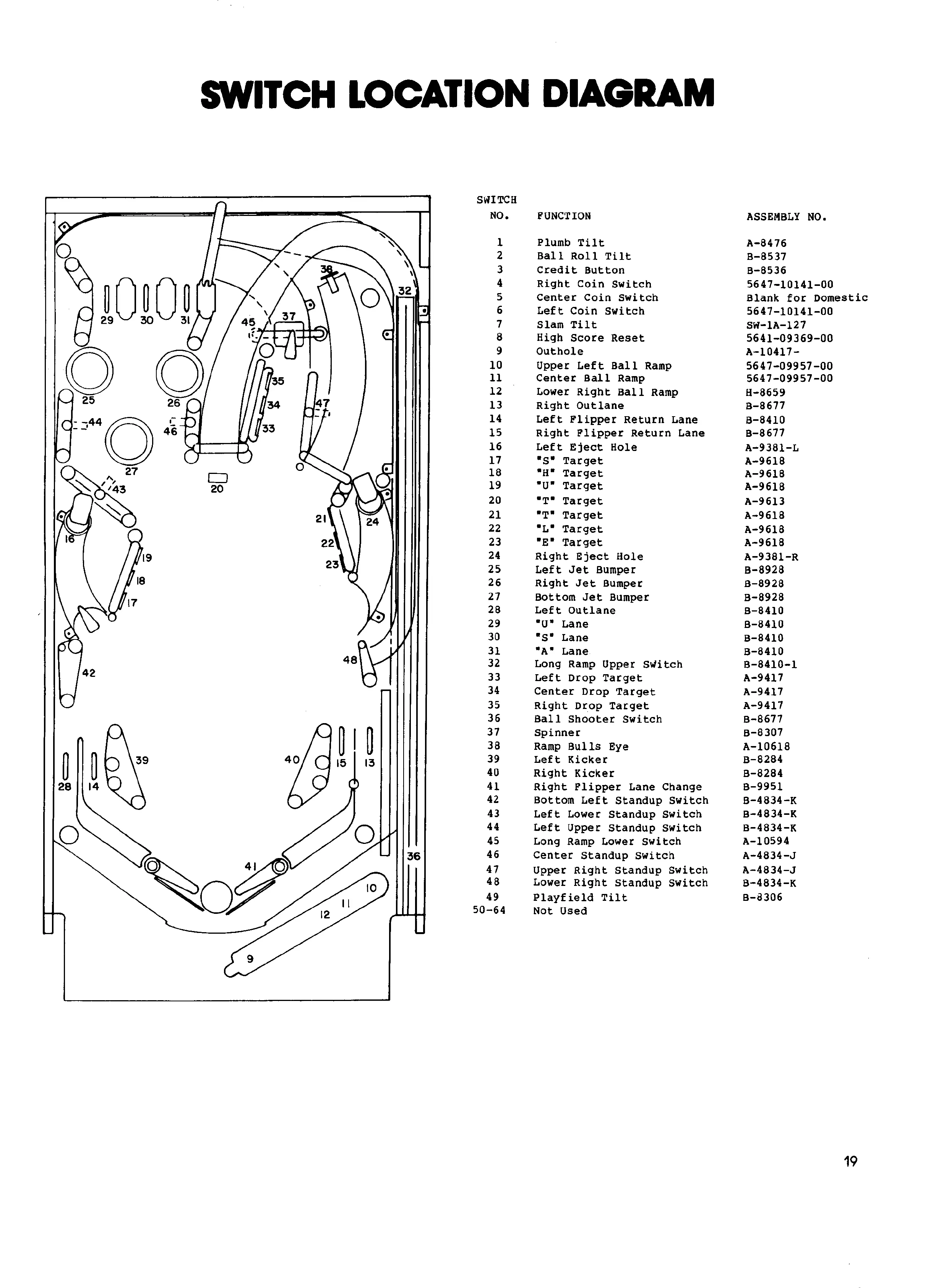

SWITCH LOCATION DIAGRAM
SWITCH
NO.
FUNCTION
ASSEMBLY NO.
1
Plumb Tilt
A8476
2
Ball Roll Tilt
3-8537
3
credit Button
3-8536
4
Right coin Switch
5647-10141-00
S
Center Coin Switch
Blank for Domestic
6
Left Coin Switch
5647-10141-00
7 Slam Tilt
SW-1A-127
8
High Score Reset
5641-09369-00
9 Outhole
A10417-
10
Upper Left Ball Ramp
5647-09957-00
11 Center Ball Ramp
5647-09957-00
12
Lower Right Ball Ramp
11-8659
13
Right Outlane 3-8677
14
Left Flipper Return Lane
8-8410
15
Right Flipper Return Lane 8-8677
16
Left Eject Hole
A-9381-L
17 '5' Target
A-9618
18
OHO Target
A-9618
19
'U' Target
A-9618
20
'T' Target
A-9613
21 'T' Target
A-9618
22
'L' Target
A-9618
23
OER Target A-9618
24
Right Eject Hole
A-9381-R
25
Left Jet Bumper 8-8928
26
Right Jet Bumper
3-8928
27
Bottom Jet Bumper 3-8928
28
Left Outlane
3-8410
29
'0' Lane
3-8410
30
'5' Lane
3-8410
31
'A' Lane
3-8410
32
Long Ramp Upper SWitch
8-8410-1
33
Left Drop Target A-9417
34
Center Drop Target
A-9417
35
Right Drop Target A-9417
36
Ball Shooter Switch 8-8677
37
Spinner B-8307
38
Ramp Bulls Eye
A-10618
39
Left Kicker
3-8284
40
Right Kicker 3-8284
41
Right Flipper Lane Change
8-9951
42
Bottom Left Standup Switch 3-4834-K
43
Left Lower Standup Switch
8-4834-K
44
Left Upper Standup Switch 8-4834-K
45
Long Ramp Lower Switch
A-10594
46
Center Standup Switch
A-4834-J
41
Upper Right Standup Switch
A-4834-J
48
Lower Right Standup Switch
3-4834-K
49
Playfield Tilt 3-8306
50-64
Not Used
19
