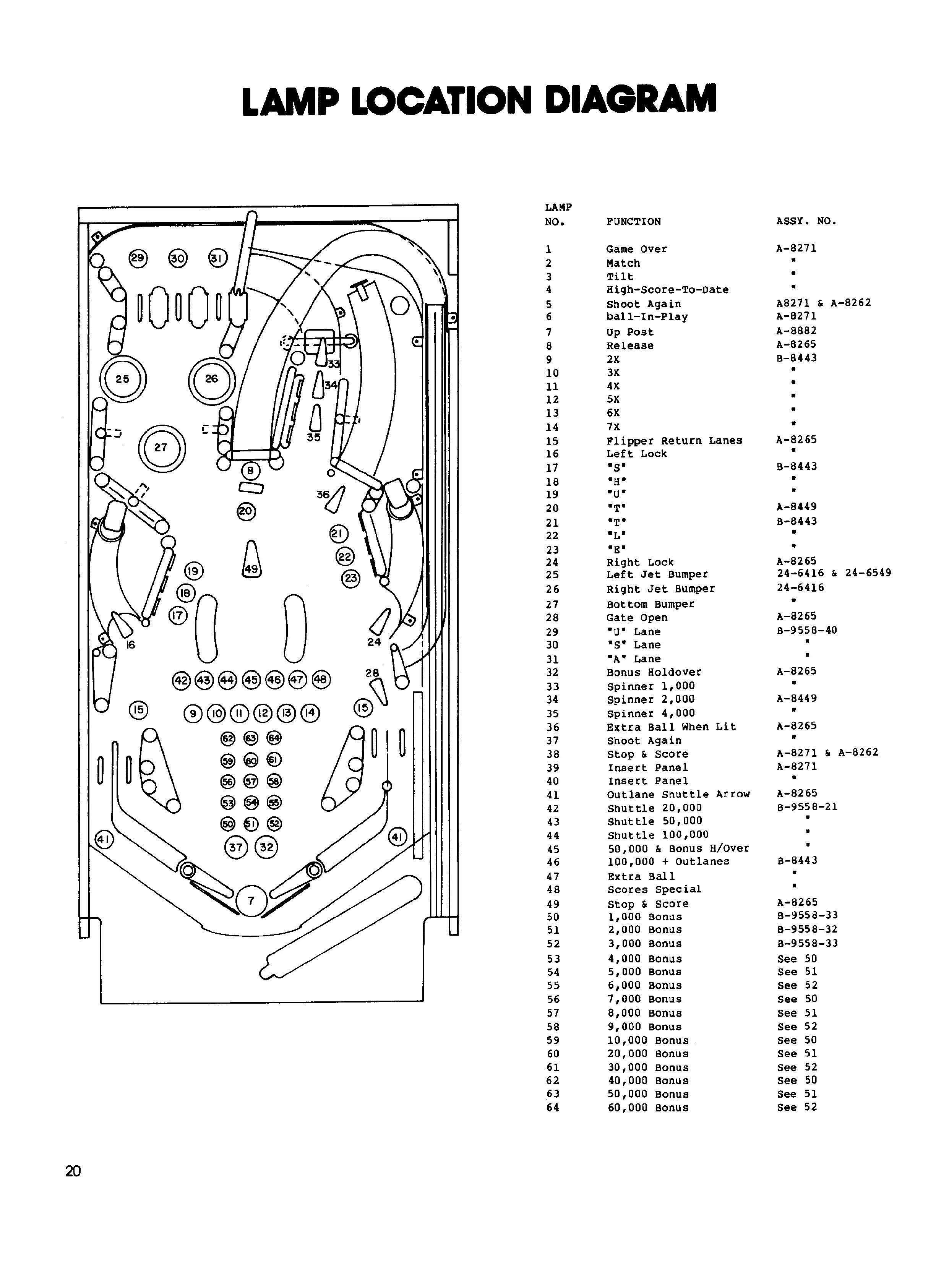

Williams SPACE SHUTTLE - Lamp Location Diagram

LAMP
HO. FUNCTION
ASSY. NO.
1
Game Over
A-8271
2
Match
3
Tilt
4 High-score-To-Date
5
shoot Again
A8271 & A-8262
6
ball-In-Play
A-8271
7
Up Post
A-8882
8
Release
A-8265
9
2X
8-8443
10
3X
11
4X
12
SX
13
6X
14
7x
15
Flipper Return Lanes
A-8265
16
Left Lock
17 S'
8-8443
18
11' a
19
'0'
20 • T'
A-8449
21
OTE
B-8443
22 • L'
23
'E
24
Right Lock
A.-8265
25
Left Jet Bumper
24-6416 & 24-6549
26
Right Jet Bumper
24-6416
27 Bottom Bumper
28 Gate Open
A-8265
29
'0" Lane
B-9558-40
30
'5' Lane
31
'A' Lane
32
Bonus Holdover
A-8265
33 spinner 1,000
34 Spinner 2,000
A-8449
35
spinner 4,000
36
Extra Ball When Lit
A-8265
37 Shoot Again
38 Stop & Score
A-8271 & A-8262
39
Insert Panel
A-8271
40 Insert Panel
41
Outlane Shuttle Arrow
A-8265
42 shuttle 20,000
8-9558-21
43
shuttle 50,000
44
shuttle 100,000
45
50,000 & Bonus H/Over
46
100,000 + Outlanes
8-8443
47
Extra Ball
48
Scores Special
49
Stop & Score
A-8265
50
1,000 Bonus
B-9558-33
51
2,000 Bonus
B-9558-32
52
3,000 Bonus
8-9558-33
53
4,000 Bonus
See 50
54
5,000 Bonus See 51
55 6,000 Bonus See 52
56
7,000 Bonus
See 50
57 8,000 Bonus see 51
58 9,000 Bonus See 52
59 10,000 Bonus
See 50
60
20,000 Bonus See 51
61 30,000 Bonus See 52
62 40,000 Bonus See 50
63 50,000 Bonus
See 51
64 60,000 Bonus
see 52
-
1Sislli
LI
101
LAMP LOCATION DIAGRAM
