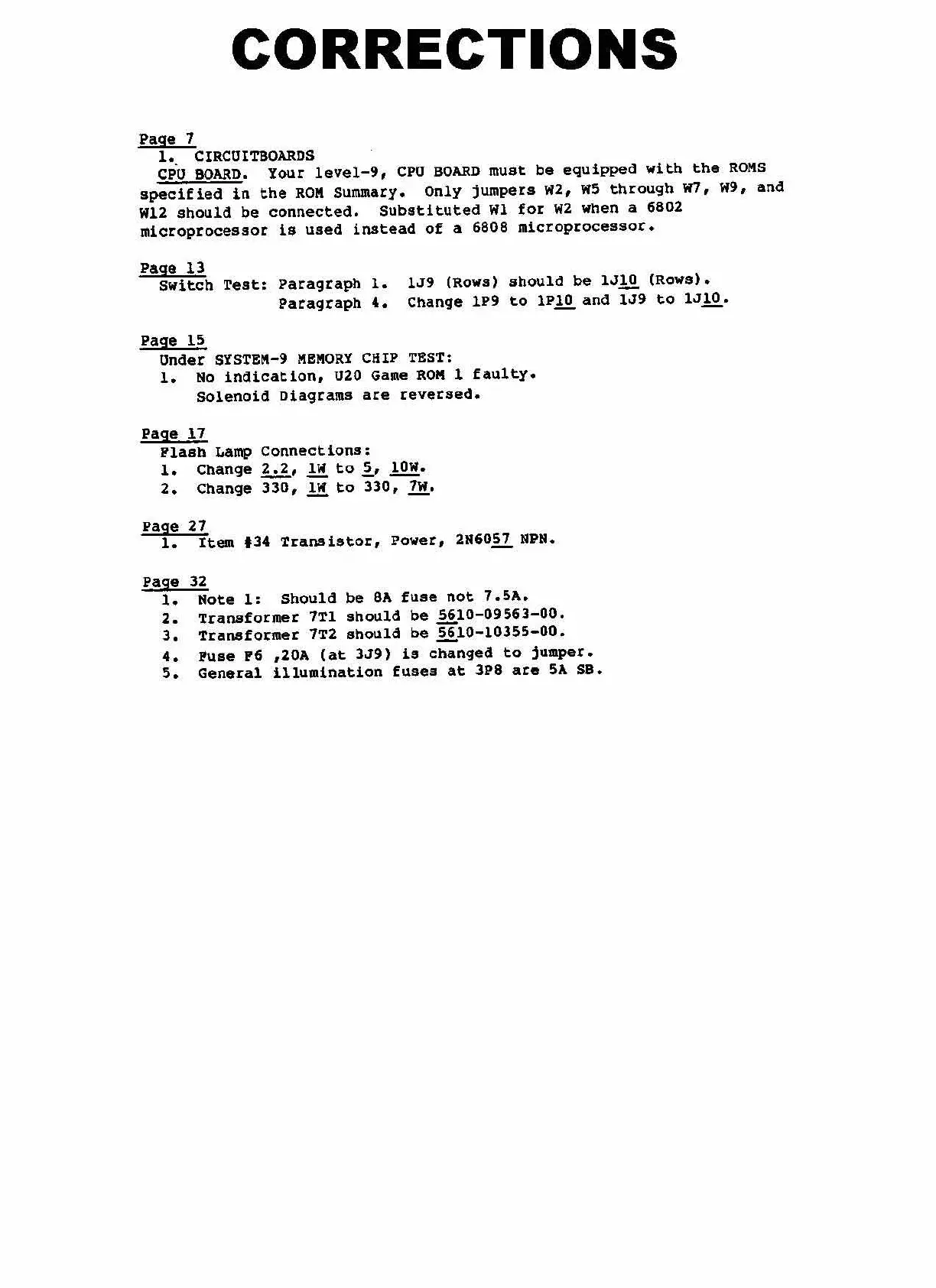

CORRECTIONS
Page
1
1.
•
CIRCtJITBOARDS
CPU BOARD. Your level-9, CPU BOARD must be equipped with the ROMS
specified in the RUM summary. Only jumpers W2, W5 through W7, W9, and
W12 should be connected.
Substituted Wi
for W2 when a 6802
microprocessor is used instead of a 6808 microprocessor.
Page 13
Switch Test: Paragraph 1. 1J9 (Rows) should be 1310 (Rows).
Paragraph 4. Change 1P9 to 1P10 and 139 to lJlO.
Page 15
Under SYSTEM-9 MEMORY CHIP TEST:
1. No indication, U20 Game ROM 1 faulty.
Solenoid Diagrams are reversed.
Page 17
Flash Lamp Connections:
1.
Change 2.2, 1W to 5, lOW.
2.
Change 330, 1W to 330,
2.j.
Page 27
1. Item $34 Transistor, Power, 2N6057 NPN.
Page 32
1.
Note 1: Should be 8A fuse not 7.5A.
2.
Transformer 7T1 should be 5610-09563-00.
3.
Transformer 7T2 should be 5610-10355-00.
4.
Fuse P6 ,20A (at 339) is
changed to
jumper.
5.
General illumination fuses at 3P8 are 5k SB.
