Williams SPACE SHUTTLE - Solenoid Location Diagram

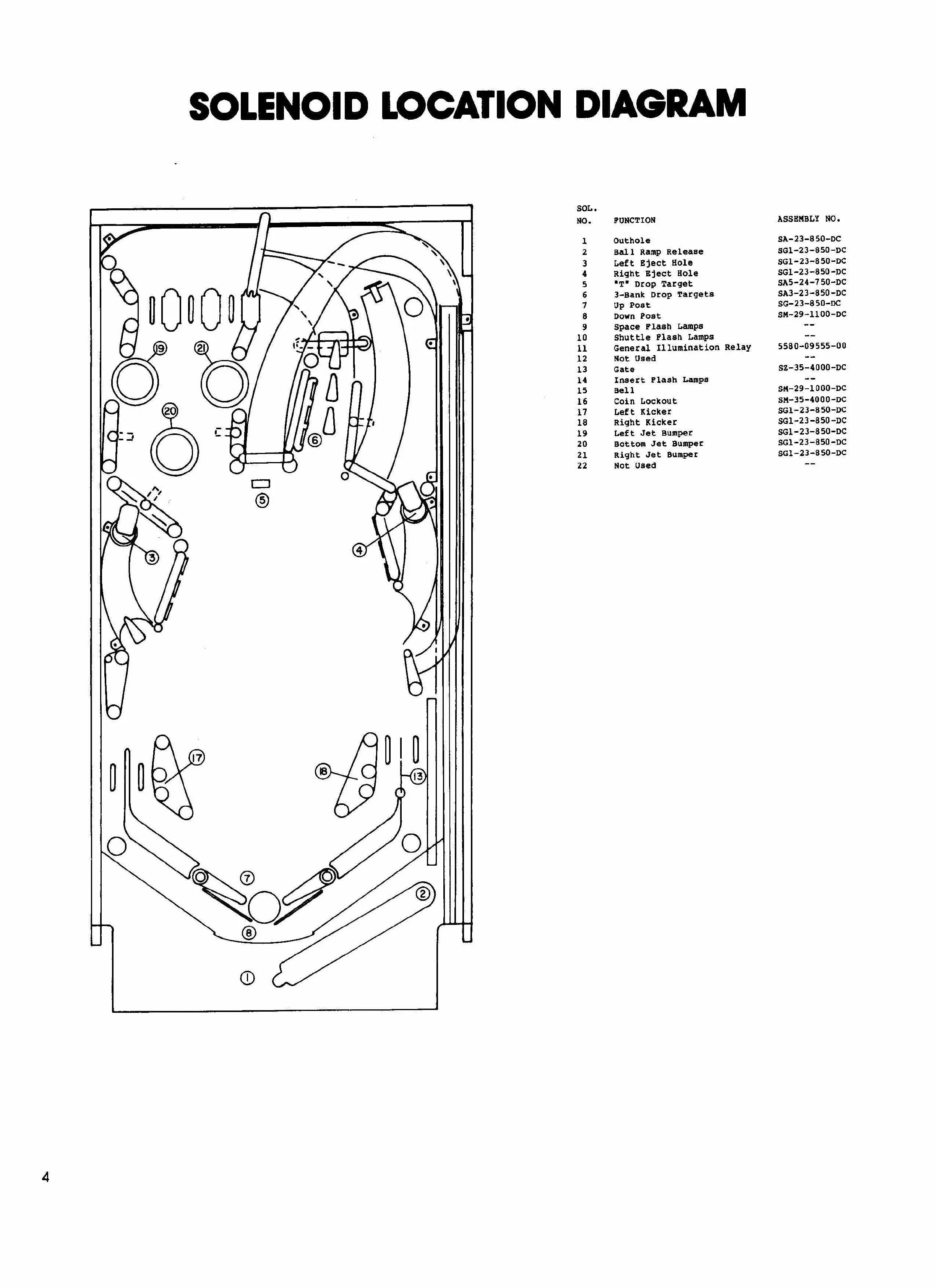

SOLENOID LOCATION DIAGRAM
soil.
NO.
FUNCTION
ASSEMBLY NO.
1
Outhole
SA-23-850-DC
2 Ball Ramp Release
SG1-23850DC
3
Left Eject Hole
SG1-23-850-DC
4
Right Eject Hole
SG1-23-850-DC
5
T 
Drop Target
SA5-24-'750-DC
6
3-Bank
Drop Targets
SA3-23-850-DC
7
Up Post
SG-23-850-DC
B Down Post
SM-29-1100-DC
9
Space Flash Lamps
--
10
Shuttle Flash Lamps
--
11
General Illumination Relay
5580-09555-00
12
Not Used --
13
Gate
SZ-35-4000-DC
14
Insert Flash Lamps
--
15
Bell
St4-29-1000-DC
16
Coin Lockout
SM-35-4000-DC
17
Left Kicker
SG1-23-850-DC
18
Right Kicker
SG1-23-850-DC
19
Left Jet Bumper
SGI-23-850-DC
20
Bottom Jet Bumper
SG1-23-850-DC
21
Right Jet Bumper
SGI-23-850-DC
22
Not Used
