Two Torus Systems Stagger Tuned:
(Connections & Positioning)
This configuration can be set-up using the High &/Or Low level connections which are detailed
on page 18 of this manual. Both Torus Infrasonic Generators should be connected with
loudspeaker cable, as detailed on page 27 of this manual, to their respective Torus Amplifiers.
Each Infrasonic Generator should be initially positioned next to the respective front left and right
channel speakers so that they are adjacent to the center line of the coils in your loudspeakers
drive units. The diagram below in figure 10 shows this placement, however, this should be
considered a starting point and does not take into consideration the effects your room may have
when placing the Infrasonic Generators in these locations.
Experimentation with the placement of the second of the two Infrasonic Generators may help to
smooth the effects of low frequency room resonance’s, ideally with the aid of a frequency sweep
as detailed on page 29. If the second Torus Infrasonic Generator is moved, the phase control
may need to be adjusted on the second Torus amplifier to compensate and ensure that the
signals are time aligned. The phase control is detailed along with the other amplifier controls on
pages 21 and 22 of the Torus Amplifier manual.

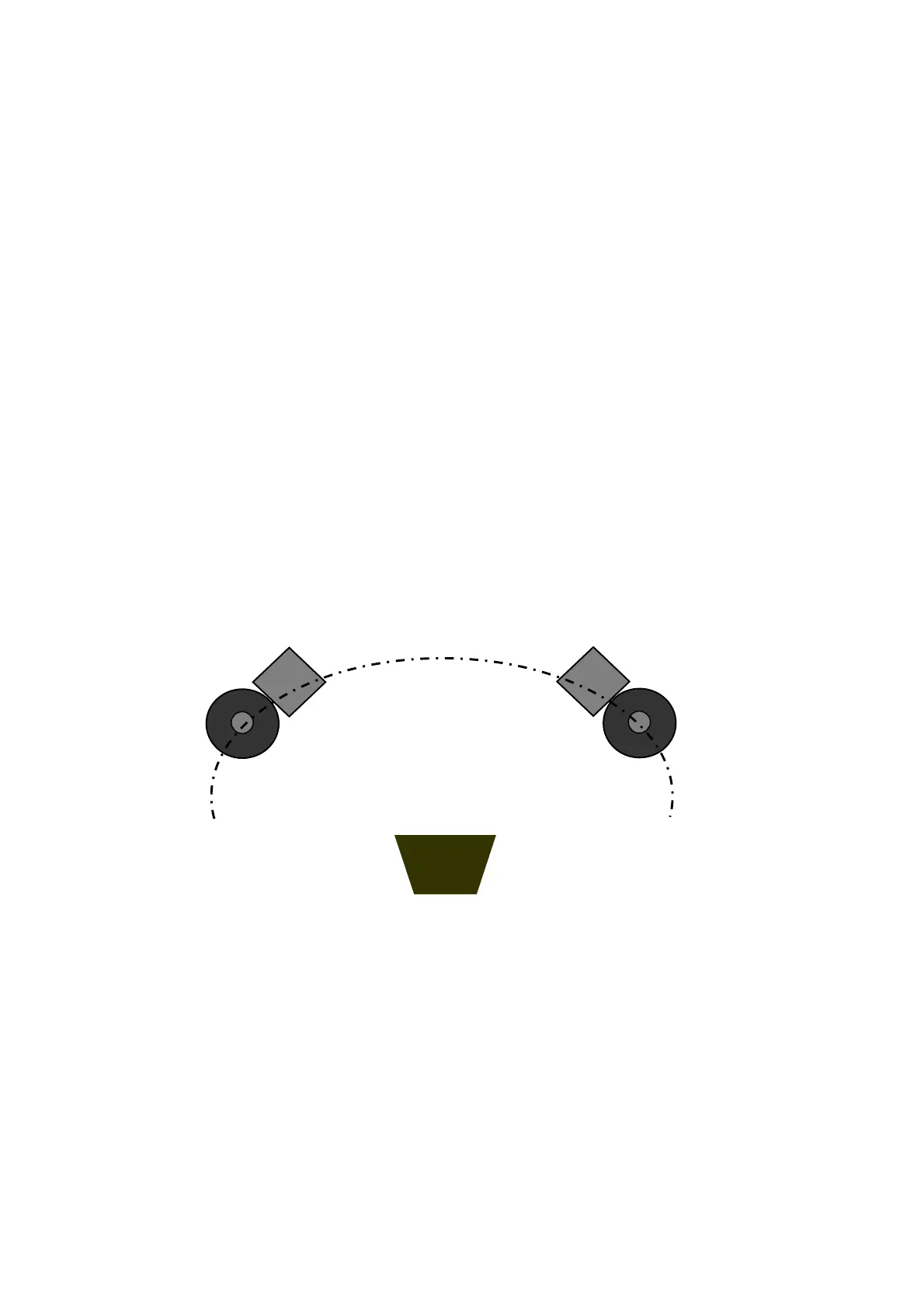

figure 10.
Listening
Position
Torus
Channel
Channel
Torus
Line running through center of
coils of Torus & loudspeakers
