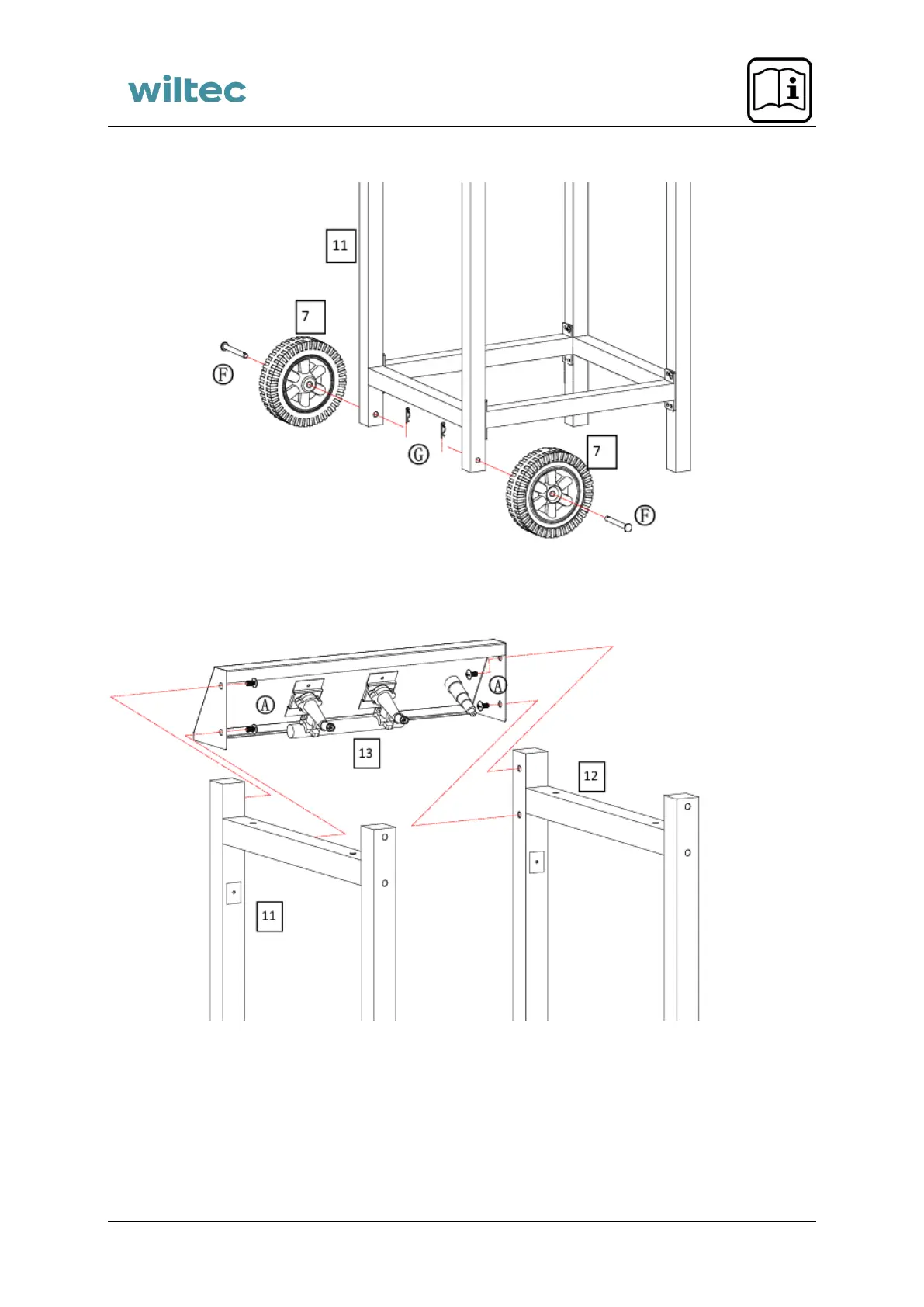

Step 3
1. Assemble the wheel (7) with the axle (F) and the pin (G).
2. Attach the wheel (7) to the left frame combination (11).
Step 4
Attach the control panel (13) to the left frame combination (11) and right frame combination (12) using
the M5×12 screws (A).
